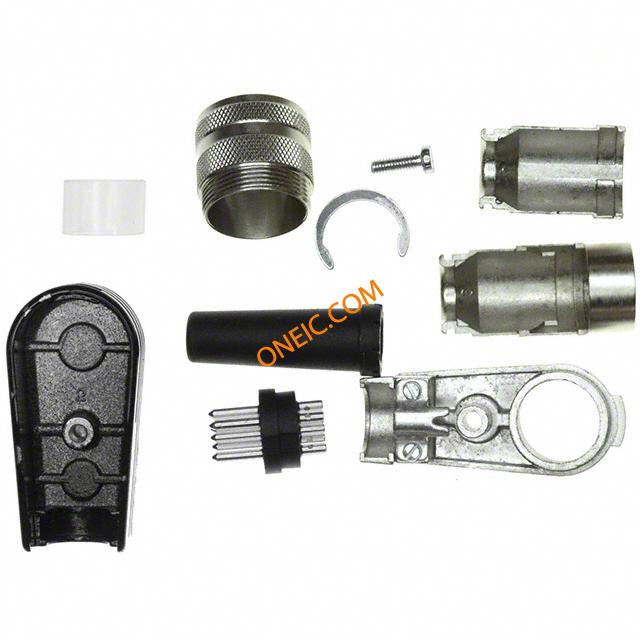

点击放大查看
T 3504 005
| 制造商 | |
| 描述 | Circular DIN Connectors 8 Pin Male;R/A Cable Mount CONN MALE 8POS CABLE MNT R/A CONNECTOR, CIRCULAR, PLUG, 8POS, CABLE CONN MALE 8POS INLINE MNT R/A connector, circular din, rt angle male cable conn, 8din silver plt solder contact Connector: circular; Series: C091A; male; plug; silver plated; IP40 |
| 分类 |
商业参数
| 零件号别名 | 005 3504 T U | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 标准 | UL E63093 |
| 海关税号 | 85369010 | 认证机构标志 | UL Recognized/IEC |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 100 V | 供电电压 | DIN |
| 最大额定电流 | 5A | ||
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 出线方向 | Internal | 导线线规 | 20-26 |
| 方向 | Keyed | 端接方式 | Solder Cup |
| 触头类型 | Pin | 安装类型 | Free Hanging (In-Line), Right Angle |
| 外壳镀层 | Nickel | 行程角度 | Right |
| 电缆直径 | 3-6 mm | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Nickel | 安装样式 | for cable |
| 封装形式 | Metal | 连接器用途 | Threaded |
| 锁定特性 | threaded joint, external thread | 本体材料 | :Metal |
| 壳体材料 | Die Cast | 包装数量 | 5 |
| 主要材料 | DIN | 尺寸/外形 | see |
| 连接器 - 电缆 | plug | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 触点数 | 8 |
| 介电材料 | Thermoplastic | 位数 | 8 |
| 外壳尺寸-插件 | DIN (270 Degree) | 外壳材料及表面处理 | Die Cast, Nickel Plated |
| 触点材料 - 镀层 | silver plated | 第一连接器安装类型 | :Cable |
| 第一连接器安装特征 | DIN EN 60130-9 | ||
产品信息
| SPG | 5 | 类型 | Cable Plug |
| 连接器性别 | :Plug | 系列 | :C091A |
| 产品特性 | Shielded, Strain Relief | 制造商全称 | C091-A Series |
| 产品子类型 | Connectors | 适配器系列 | C091A |
| 单元数量 | 1 | 射频系列/标准 | C091A |
环境参数
| 密封等级 | IP 40 | 防护等级 | IP40 |
| 工作温度 | -40°C ~ 100°C | ||
