点击放大查看

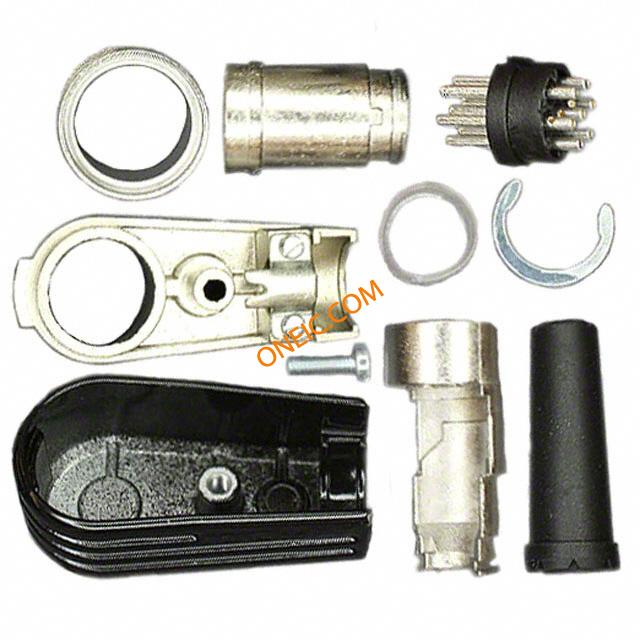

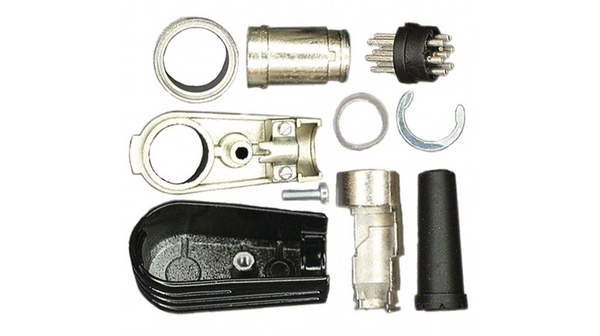

T 3475 005
| 制造商 | |
| 描述 | Circular DIN Connectors 7 Pin Male;R/A Cable Mount CONN MALE 7POS CABLE MNT R/A CONN MALE 7POS INLINE MNT R/A connector, circular din, rt angle male cable conn, 7 silver pltd solder contact Connector: circular; Series: C091A; male; plug; silver plated; IP40 Cable plug angled series C091A 7-pin Poles=7, T 3475 005, Amphenol |
| 分类 |
商业参数
| 零件号别名 | 005 3475 T U | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 标准 | UL E63093 |
| 认证机构标志 | UL Recognized/IEC | 材料阻燃等级 | UL94-V0 |
电气参数
| 额定电压 | 300V | 极数 | 7 |
| 供电电压 | DIN | 最大额定电流 | 5A |
| 额定电流 - 设备输入口 | 5 | 保护电压（VP）（2416） | IP 40 |
机械参数
| 重量 | 0.04 kg | 包装方式 | Bulk |
| 出线方向 | Internal | 导线线规 | 20 AWG |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Solder Cup | 触头类型 | Pin |
| 安装类型 | Free Hanging (In-Line), Right Angle | 外壳镀层 | Nickel |
| 行程角度 | Right | 电缆直径 | 4 mm to 6 mm |
| 电缆端类型 | 3...6 mm | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Nickel | 安装样式 | for cable |
| 封装形式 | Metal | 连接器用途 | Threaded |
| 锁定特性 | threaded joint, external thread | 触头材料 | CuZn+Ag |
| 壳体材料 | Die Cast | 主要材料 | DIN |
| 尺寸/外形 | see | 连接器 - 电缆 | plug |
| 端接样式 | Solder | 第一触头极性 | Pin (Male) |
| 触点数 | 7 | 介电材料 | Thermoplastic |
| 位数 | 7 | 外壳尺寸-插件 | DIN |
| 第一连接器极性 | Male | 外壳材料及表面处理 | Die Cast, Nickel Plated |
| 触点材料 - 镀层 | silver plated | 第一连接器安装特征 | DIN EN 60130-9 |
产品信息
| 类型 | Cable Plug | 设计类型 | Cable plug |
| 连接器性别 | Male | 系列 | C 091 A |
| 产品特性 | Shielded, Strain Relief | 制造商全称 | C091-A Series |
| 产品子类型 | Connectors | 适配器系列 | C091A |
| 单元数量 | 1 | 连接方式 | 0.5 |
| 射频系列/标准 | C091A | ||
环境参数
| 密封等级 | IP 40 | 防护等级 | IP40 |
| 工作温度 | -40°C ~ 100°C | ||
文档与媒体
相关型号
T 3478 100
amphenol
Conn Circular F 7 POS Solder ST Panel Mount 7 Terminal 1 Port CONN FMALE RCPT 7POS REAR PNL MT Circular DIN Connectors 7P DIN REAR MOUNT CONNECTOR, CIRCULAR, RCPT, 7POS, PANEL connector, circular din, female panel recept, rear mt, 7 silver-pltd solder contact
T 3478 000
amphenol
Conn Circular F 7 POS Solder ST Panel Mount 7 Terminal 1 Port CONN CIR RCPT FMALE 7POS PNL MNT Circular DIN Connectors 7P PANEL FEMALE connector, circular din, female panel recept, front mt, 7 silver-pltd solder contact Device bushing C091A 7-pin Poles=7, T 3478 000, Amphenol

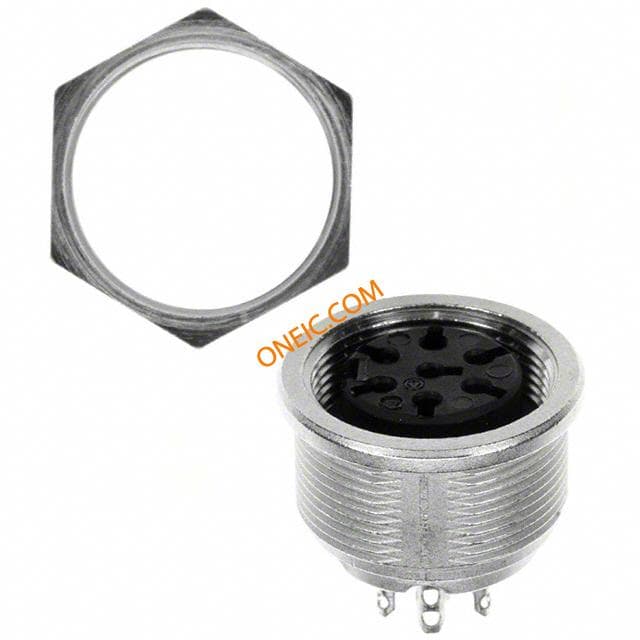

T 3478 009
