点击放大查看

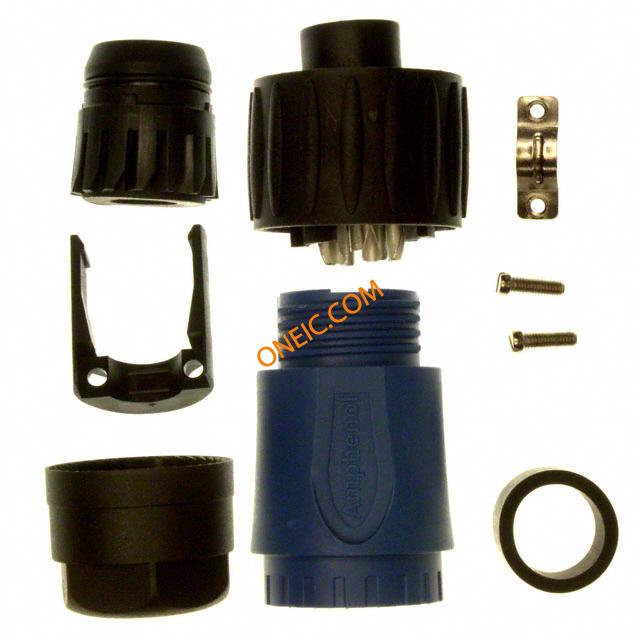

C016 30D006 110 10
| 制造商 | |
| 描述 | Circular DIN Connectors 6+PE FEM STRT BLUE SODR SIL IN ST RELF Conn Circular F 7 POS Solder ST Cable Mount 7 Terminal 1 Port 06P+PE FEMALE CABLE CON. C16-M CONN FEMALE PLUG 6+PE SILVER BLU SOCKET, FREE, SOLDER, 6P+E WAY connector, plastic circ, str fem cable conn, 6+gnd silver plt cont, solder term, blue Connector: circular; plug; with cable clamp; female; PIN:7; 250V Cable socket 6+PE, C016 30D006 110 10, Amphenol |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 50 |
| 产品类别 | Circular DIN Connectors | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
| 汽车级 | NO | 抗辐射加固 | No |
| 无铅定义 | RoHS-conform | 认证机构 | :CSA, GERMANISCHER LLOYDS, SEV, UL, VDE |
| 保护特性 | 65/67 | 认证机构标志 | UL Recognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 250V | 供电电压 | DIN |
| 接触电阻 | :5mohm | 最大额定电流 | 12A |
| 绝缘电阻 | :10Mohm | 连接器类型 - 电压输入 | with cable clamp |
机械参数
| 颜色 | Blue | 重量 | 0.041 |
| 直径 | 30 mm | 包装方式 | Bulk |
| 出线方向 | Yes | 导线线规 | 10 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Solder | 重量（g） | 39.12330 |
| 触点形式 | 6Signal/1Ground | 触头类型 | 6Signal/1Ground |
| 安装类型 | Cable Mount | 释放力 | :30N |
| 行程角度 | Straight | 电缆直径 | 6 mm to 12.5 mm |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Silver |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 封装形式 | :Straight | 连接器用途 | Threaded |
| 插入角度 | :- | 插入力 | :15N |
| 锁定特性 | threaded joint, internal thread | 本体材料 | :Nylon (Polyamide) |
| 触头材料 | :- | 壳体材料 | Polyamide |
| 总长度 | 73 mm | 包装数量 | 30 |
| 主要材料 | DIN | 连接器 - 电缆 | plug |
| 端接样式 | FEMALE | 第一触头极性 | F |
| 连接器颜色 | :Blue / Black | 触点数 | 7 |
| 接触件端接 | :Solder | 介电材料 | Polyamide |
| 位数 | 7 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Polyamide | 典型触点布局 | PLUG |
| 外部壳体材料 | :Polyamide 6.6/PA6 | 线规或范围 - mm² | :0.75mm² |
| 触点材料 - 镀层 | -40 TO 125 | 第一连接器安装类型 | :Cable |
| 第一连接器安装特征 | 6+PE | 外径-未扩张 | :12.5mm |
产品信息
| SPG | 30 | 类型 | Circular |
| 连接器性别 | PL | 系列 | ECOMATE |
| 产品特性 | Cable Clamp, Strain Relief | 匹配码 | C01630D00611010 |
| 制造商全称 | C016 Series | 产品子类型 | Connectors |
| 适配器系列 | ECOMATE (C016) | 单元数量 | 1 |
| 标准交期 | 12 weeks | 射频系列/标准 | C016 |
| 应用细节 | Commercial | ||
环境参数
| 密封等级 | IP 67 | 插拔次数 | :500 |
| NEMA 机架尺寸 | :IP67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | SCREW°C | ||
