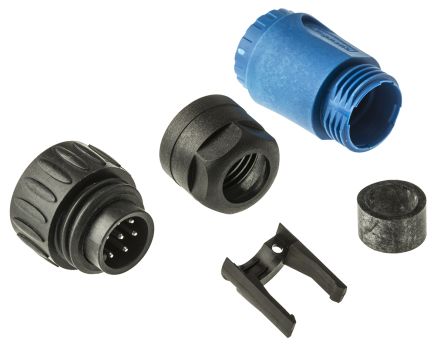

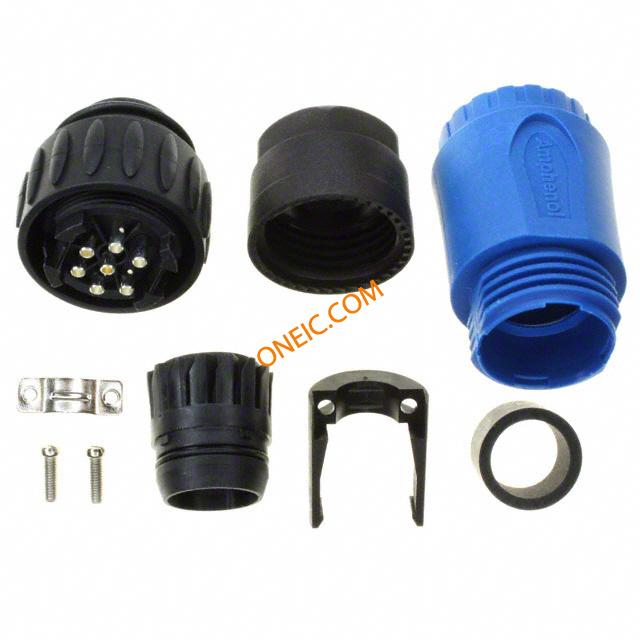

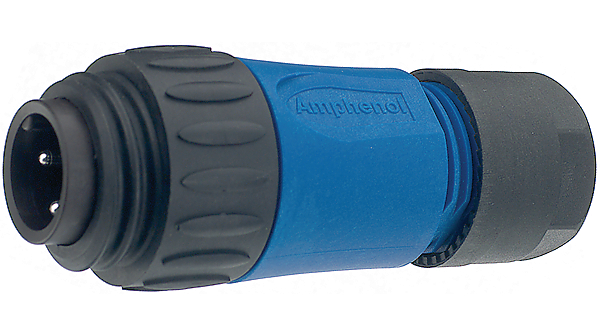

C016 30H006 110 10
| 制造商 | |
| 描述 | Circular DIN Connectors 6+PE MALE STRT BLUE SODR SIL IN ST RELF Conn Circular M 7 POS Solder ST Cable Mount 7 Terminal 1 Port CONN MALE PLUG 6+PE SILVER BLUE CIRCULAR CONN, PLUG, 6+PE WAY, CABLE connector, plastic circ, str male cable conn, 6+gnd silver plt cont, solder term, blu Connector: circular; plug; male; Series: ECOMATE (C016); PIN:7 Cable plug 6+PE, C016 30H006 110 10, Amphenol Amphenol Eco-Mate 系列 6 + PE路 电缆安装 直向 连接器 插头 |
| 分类 |
商业参数
| 产品类别 | Circular DIN Connectors | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85389099 |
| 抗辐射加固 | No | 认证机构标志 | UL Recognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 250V | 供电电压 | DIN |
| 接触电阻 | :5mohm | 击穿电压 | :4000V |
| 最大额定电流 | 12A | ||
机械参数
| 颜色 | Blue | 重量 | 0.041 |
| 直径 | 30 mm | 包装方式 | Bulk |
| 出线方向 | Yes | 导线线规 | 20 |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Solder | 重量（g） | 40.94000 |
| 触点形式 | 6Signal/1Ground | 触头类型 | 6Signal/1Ground |
| 安装类型 | Cable Mount | 释放力 | :30N |
| 行程角度 | Straight | 电缆直径 | 6 mm to 12.5 mm |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Silver |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 封装形式 | Plastic | 连接器用途 | Threaded |
| 插入角度 | :- | 锁定特性 | threaded joint, external thread |
| 本体材料 | :Nylon (Polyamide) | 触头材料 | :- |
| 壳体材料 | Polyamide | 总长度 | 73 mm |
| 包装数量 | 50 | 主要材料 | DIN |
| 连接器 - 电缆 | plug | 端接样式 | Solder |
| 第一触头极性 | M | 连接器颜色 | :Blue / Black |
| 触点数 | 7 | 接触件端接 | :Solder |
| 介电材料 | Polyamide | 位数 | 7 |
| 外壳材料及表面处理 | Polyamide | 典型触点布局 | 6 + 1 Ground (PE) |
| 线规或范围 - mm² | :0.75mm² | 触点材料 - 镀层 | silver plated |
| 第一连接器安装类型 | :Cable | 第一连接器安装特征 | 6+PE |
| 外径-未扩张 | :12.5mm | ||
产品信息
| SPG | 50 | 类型 | Circular |
| 连接器性别 | PL | 系列 | eco mate |
| 产品特性 | Cable Clamp, Strain Relief | 制造商全称 | C016 Series |
| 产品子类型 | Connectors | 适配器系列 | ECOMATE (C016) |
| 单元数量 | 1 | 射频系列/标准 | C016 |
| 应用细节 | Commercial | ||
环境参数
| 密封等级 | IP 67 | 插拔次数 | :500 |
| NEMA 机架尺寸 | :IP67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | -40°C ~ 125°C | ||
