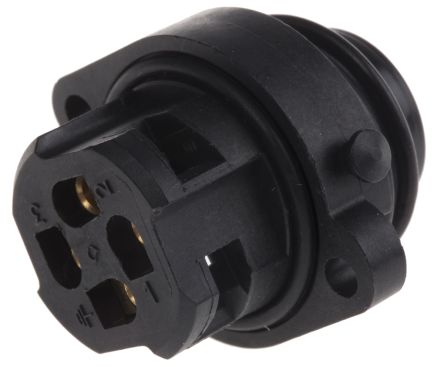

点击放大查看

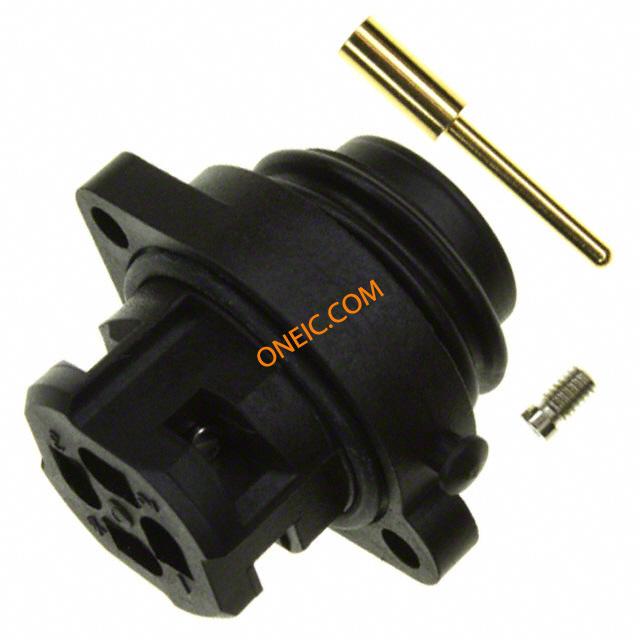

C016 20C003 200 12
| 制造商 | |
| 描述 | Circular DIN Connectors 3+PE MALE RECEPT BLK SCREW GLD CONTACT CONN MALE RCPT 3+PE GOLD BLACK 4 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts PLUG, PANEL, SCREW, AU, 3P+E WAY connector, plastic circ, male panel recept, 3+gnd gold plt cont, screw term, black Amphenol Eco-Mate 系列 4路 面板安装 直向 连接器 插座 , 公触点 |
| 分类 |
商业参数
| 零件号别名 | 81K1462 | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85389099 | 认证机构 | :CSA, GERMANISCHER LLOYDS, SEV, UL, VDE |
| 认证机构标志 | UL Recognized/CSA/VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 400V | 供电电压 | DIN |
| 接触电阻 | :5mohm | 最大额定电流 | 16A |
| 绝缘电阻 | :10Mohm | ||
机械参数
| 颜色 | Black | 重量 | 0.021 |
| 包装方式 | Bulk | 出线方向 | Yes |
| 导线线规 | :14AWG | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Screw |
| 重量（g） | 20.40000 | 触头类型 | Pin |
| 安装类型 | Panel Mount | 释放力 | :30N |
| 行程角度 | Straight | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 封装形式 | :Panel Plug | 连接器用途 | Threaded |
| 插入角度 | :- | 插入力 | :15N |
| 本体材料 | :Nylon (Polyamide) | 触头材料 | :- |
| 壳体材料 | Polyamide | 主要材料 | DIN |
| 端接样式 | Screw | 第一触头极性 | Male |
| 连接器颜色 | :Black | 触点数 | 4 |
| 接触件端接 | :Screw | 介电材料 | Polyamide |
| 位数 | 4 | 外壳尺寸-插件 | :- |
| 安装孔直径 | 0.866 " | 外壳材料及表面处理 | Polyamide |
| 典型触点布局 | 3 + 1 Ground (PE) | 安装面板厚度 | :31mm |
| 外部壳体材料 | :Polyamide 6.6/PA6 | 线规或范围 - mm² | :2.5mm² |
| 第一连接器安装类型 | :Panel | 外径-未扩张 | :12.5mm |
产品信息
| 类型 | Cable Socket | 连接器性别 | Female |
| 系列 | eco mate | 产品特性 | Screw Locking |
| 制造商全称 | C016 Series | 产品子类型 | Connectors |
| 应用细节 | Commercial | ||
环境参数
| 密封等级 | IP 67 | 插拔次数 | :500 |
| NEMA 机架尺寸 | :IP67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | -40°C ~ 100°C | ||
