点击放大查看

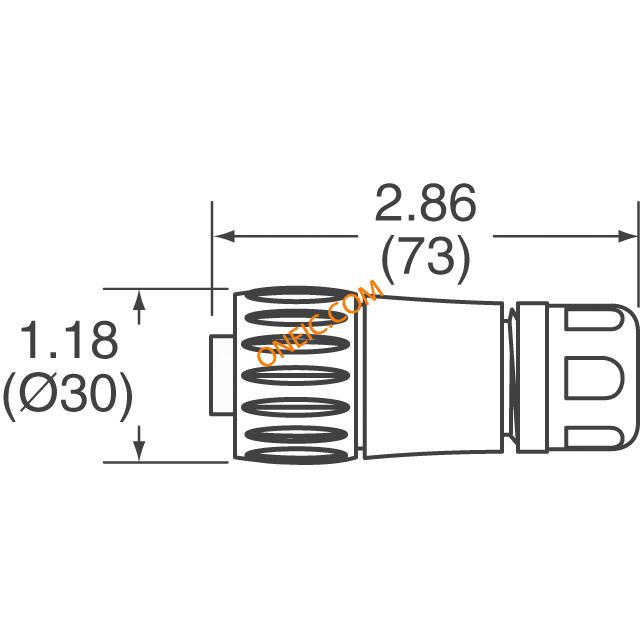

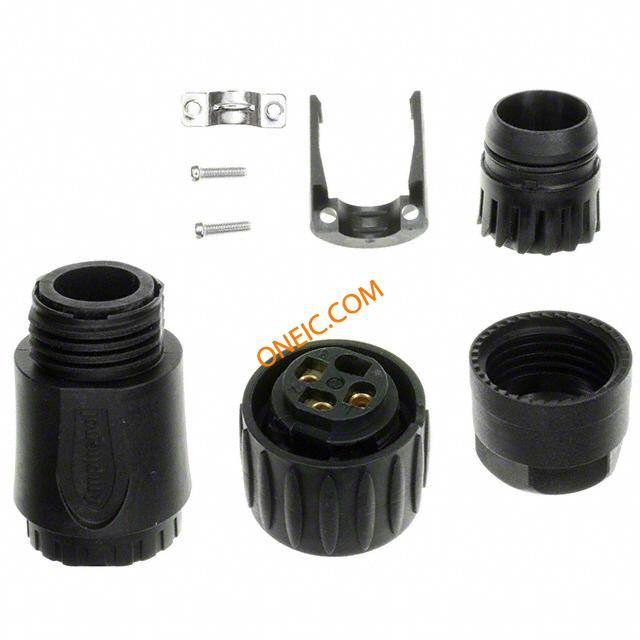

C016 20D003 210 12
| 制造商 | |
| 描述 | Circular DIN Connectors 3+PE FEM STRT BLK SCW GLD INT ST RELF CONN FEMALE PLUG 3+PE GOLD BLACK connector;plastic circ;str fem cable conn;3+gnd gold plt cont;screw term;black connector, plastic circ, str fem cable conn, 3+gnd gold plt cont, screw term, black |
| 分类 |
商业参数
| 零件号别名 | 81K1470 | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Compliant | 认证机构标志 | UL Recognized/CSA/VDE |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 400V | 供电电压 | DIN |
| 最大额定电流 | 16A | ||
机械参数
| 颜色 | Black | 包装方式 | Bulk |
| 出线方向 | Internal | 导线线规 | 20-14 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Screw | 重量（g） | 44.40000 |
| 触头类型 | Socket | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 电缆直径 | 6-12.5 mm |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Gold |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 封装形式 | Plastic | 连接器用途 | Threaded |
| 壳体材料 | Polyamide | 主要材料 | DIN |
| 端接样式 | Screw | 第一触头极性 | Socket (Female) |
| 触点数 | 3 | 介电材料 | Polyamide |
| 位数 | 4 | 外壳材料及表面处理 | Polyamide |
| 典型触点布局 | 3 + 1 Ground (PE) | ||
产品信息
| 类型 | Cable Socket | 产品特性 | Cable Clamp, Strain Relief |
| 制造商全称 | C016 Series | 产品子类型 | Connectors |
| 应用细节 | Commercial | ||
环境参数
| 密封等级 | IP 67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | -40°C ~ 100°C | ||
文档与媒体
相关型号
C016 00V000 010 12
Amphenol Tuchel
Circular DIN Connectors PROTECTIVE COVER FOR FEM CABLE CONNECTOR COVER FOR CABLE BOX C16-M CONN CAP FOR FEMALE PLUG EcoMateCap for Female Cable Conn Connector Accessories Protection Cover For Female Cable Connector DUST CAP, FOR FEMALE CABLE CONNECTOR connector accessory, protection cover(cap) for eco-mate female cable conn, black Sealing cap for cable socket, C016 00V000 010 12, Amphenol Amphenol Eco-Mate 系列 插头 IP65 防尘盖

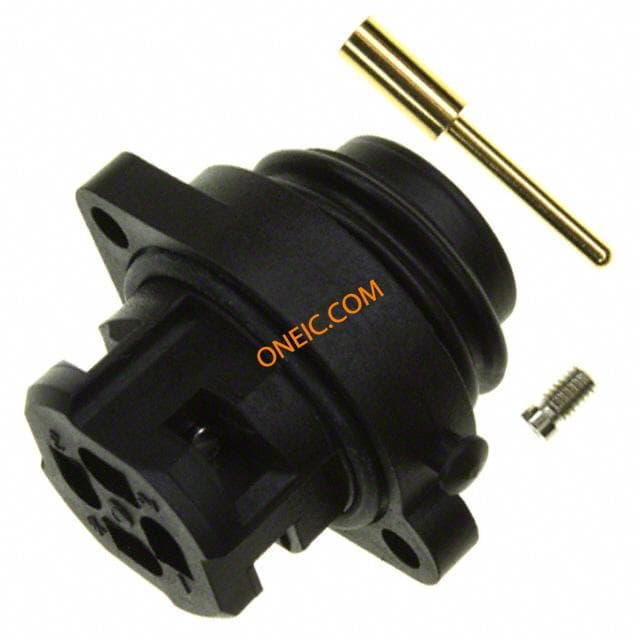

C016 20C003 200 12
