点击放大查看
RJFC7B
| 制造商 | Amphenol Corporation |
| 描述 | Connector Accessories Metallic Cap Jam Nut Receptacle Black Coating CONN ACCY CAP BLACK Modular Connectors / Ethernet Connectors Jam Nut Recept Cap RJ45 Cat5e Black connector accessory, rj field, protectioncap for jam nut receptacle, black |
| 分类 |
商业参数
| 产品 | Accessories | 零件号别名 | 03H9928 308-4630 |
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
机械参数
| 颜色 | Black | 屏蔽 | Shielded |
| 重量（g） | 21.60000 | 安装类型 | Straight |
| 连接器类型 | Cap (Cover) | 壳体材料 | Metal |
| 端接样式 | Solder | ||
产品信息
| 类型 | Cap | 连接器性别 | Female |
| 系列 | RJ Field Bus | 产品特性 | Lanyard |
| USOC 编码 | RJ45 | 主要用途 | Lanyard |
| 附件类型 | Cap (Cover) | 射频系列/标准 | RJFC |
| 性能类别 | Cat 5e | 适用产品/相关产品 | RJF Series Receptacle |
环境参数
| 密封等级 | IP 67 | ||
文档与媒体
相关型号

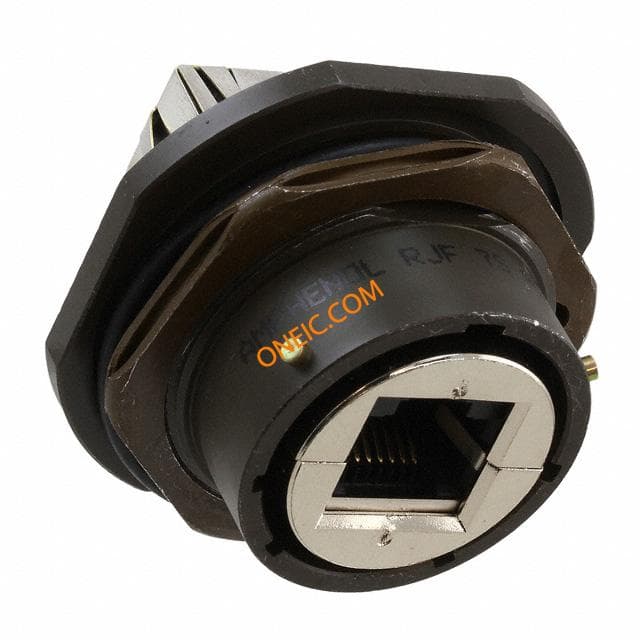

RJF7SA1G
amphenol pcd
Conn RJ-45 RCP 8 POS ST Jam Nut 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS connector;metal circ;jam nut recept;rj45 to rj45;transversal seal;green finish Modular Connectors / Ethernet Connectors RJ SEALED JAM NUT R RJ45 CODE A OLIVE connector, metal circ, jam nut recept, rj45 to rj45, transversal seal, green finish
RJF71B
amphenol pcd
Conn RJ-45 RCP 8 POS ST Jam Nut 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS Female Jam Nut Panel Mount Field RJ45 Connector, LAN Category Cat5e connector;metal circular;jam nut recept;bayonet coupling;rj45 ethernet;black Modular Connectors / Ethernet Connectors RJ45 Jam Nut Recpt Female Black connector, metal circular, jam nut recept, bayonet coupling, rj45 ethernet, black 保险螺帽 面板安装 RJ45 连接器 母, Cat5e, 41mm直径

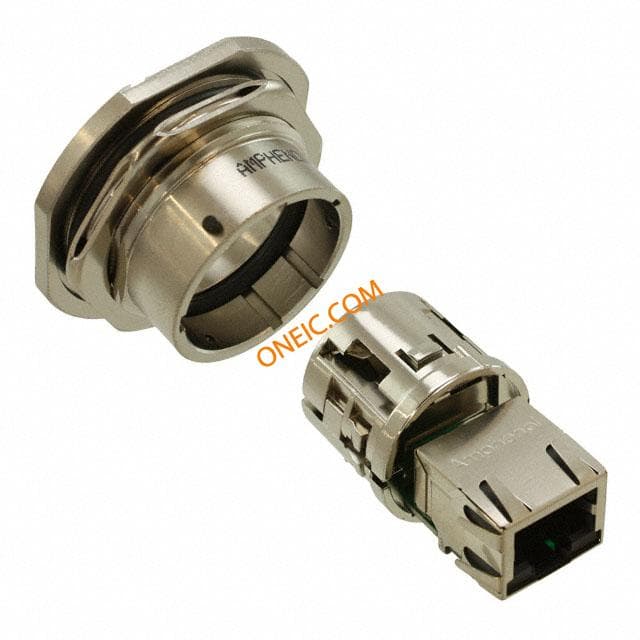

RJF71N
amphenol pcd
Conn RJ-45 RCP 8 POS ST Jam Nut 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS Jam nut recept,RJ45 female,nickel Modular Connectors / Ethernet Connectors RJ45 Jam Nut Recpt Female Nickel INDUST CONNECTOR,ETHERNET connector, metal circular, jam nut recept, bayonet coupling, rj45 ethernet, nickel Amphenol 直 母 RJ45 连接器 , 面板安装型
RJF72G00
amphenol pcd
Conn RJ-45 RCP 8 POS Solder ST Jam Nut 8 Terminal 1 Port Cat 5e CONN MOD JACK 8P8C connector;metal circular;jam nut recept;pc board;rj45 ethernet;green finish Modular Connectors / Ethernet Connectors 8-Hole RJ45 Cordset Jam Nut Receptacle connector, metal circular, jam nut recept, pc board, rj45 ethernet, green finish

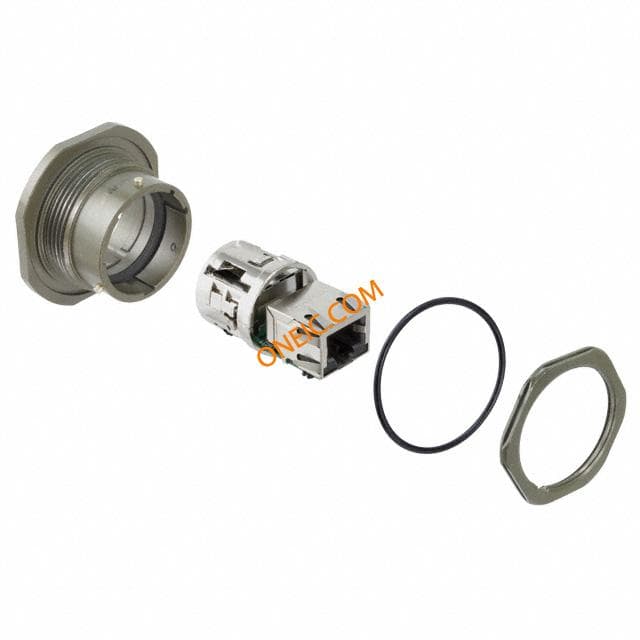

RJF71G
amphenol pcd
Conn RJ-45 RCP 8 POS ST Jam Nut 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS Modular Connectors / Ethernet Connectors RJ45 Jam Nut Recpt Female Olive Drab RJ FIELD ETHERNET CONNECTOR RCPT 8WAY JAM NUT connector, metal circular, jam nut recept, bayonet coupling, rj45 ethernet, green
RJF7PEM1G
amphenol pcd
Conn RJ-45 RCP 8 POS ST Jam Nut 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS Modular Connectors / Ethernet Connectors Female RJ45 Olive Inline Jam Nut Recpt connector, metal circular, recept w/bkshl, metal gland, rj45 ethernet, green finish

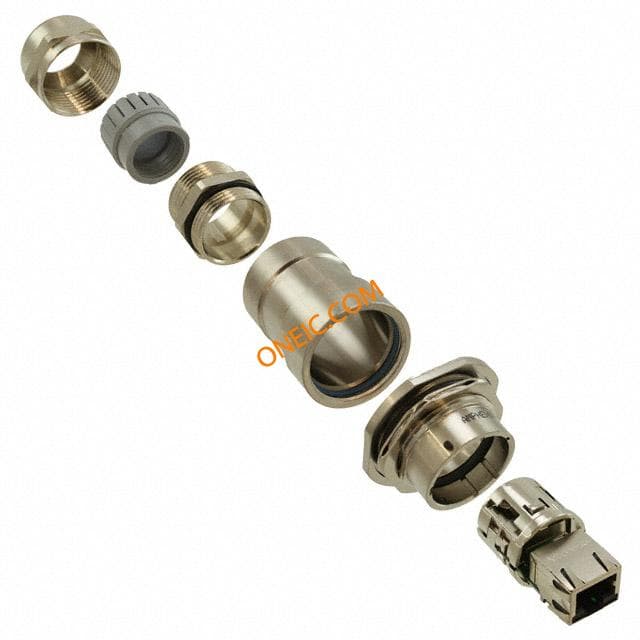

RJF7PEM1N
amphenol pcd
Conn RJ-45 RCP 8 POS ST Jam Nut 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS Modular Connectors / Ethernet Connectors Female RJ45 Nickel Inline Jam Nut Recpt connector, metal circular, recept w/bkshl, metal gland, rj45 ethernet, nickel finish
RJF7PEM1B
amphenol pcd
Conn RJ-45 RCP 8 POS ST Jam Nut 8 Terminal 1 Port Cat 5e Ethernet & Telecom Connectors Female RJ45 Black Inline Jam Nut Recpt COUPLER MODULAR 8POS-8POS Modular Connectors / Ethernet Connectors Female RJ45 Black Inline Jam Nut Recpt connector, metal circ, jam nut recept w/backshell, metal gland, rj45, black finish

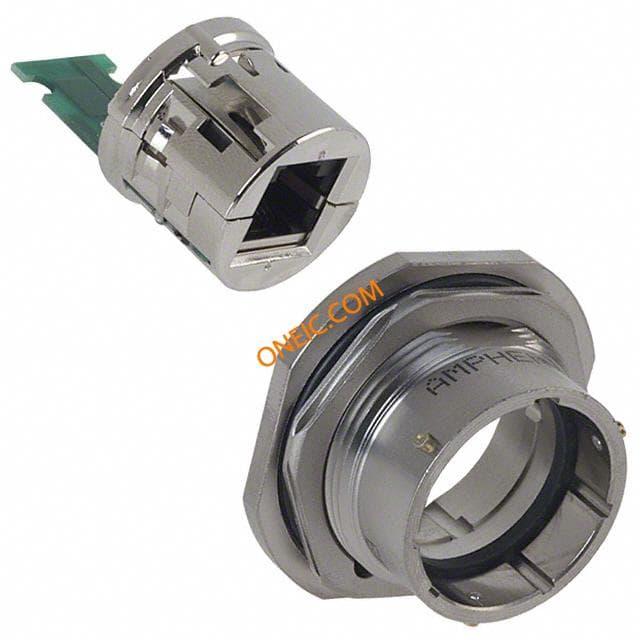

RJF72N00
amphenol pcd
Conn RJ-45 RCP 8 POS Solder ST Jam Nut 8 Terminal 1 Port Cat 5e 8P CONNECTOR JUM NUT RCPT CONN MOD JACK 8P8C Modular Connectors / Ethernet Connectors 8-Hole RJ45 Cordset Jam Nut Receptacle connector, metal circular, jam nut receptacle, pc board, rj45 ethernet, nickel finish

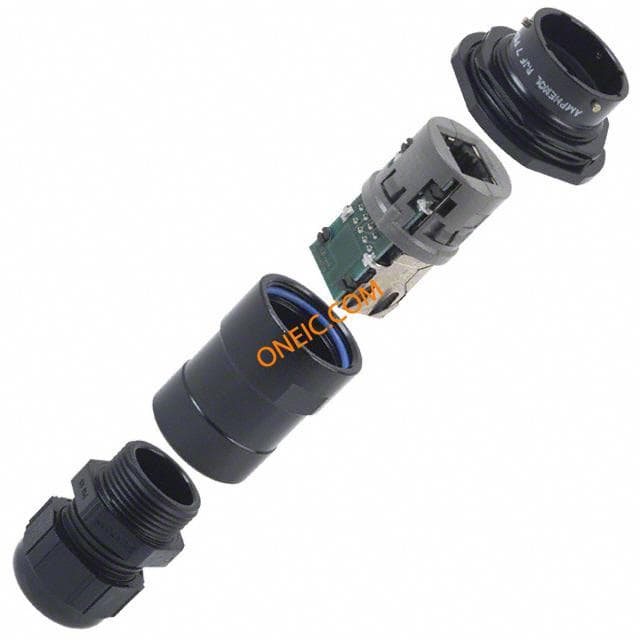

RJF7PE1B
amphenol pcd
Conn RJ-45 RCP 8 POS ST Jam Nut 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS Modular Connectors / Ethernet Connectors Female RJ45 Black Inline Jam Nut Recpt connector, metal circ, jam nut recept w/backshell, plastic gland, rj45, black finish
RJF7PE1G
amphenol pcd
Conn RJ-45 RCP 8 POS ST Jam Nut 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS Modular Connectors / Ethernet Connectors Female RJ45 Olive Inline Jam Nut Recpt connector, metal circular, receptacle w/bkshl, plastic gland, rj45 ethernet, green

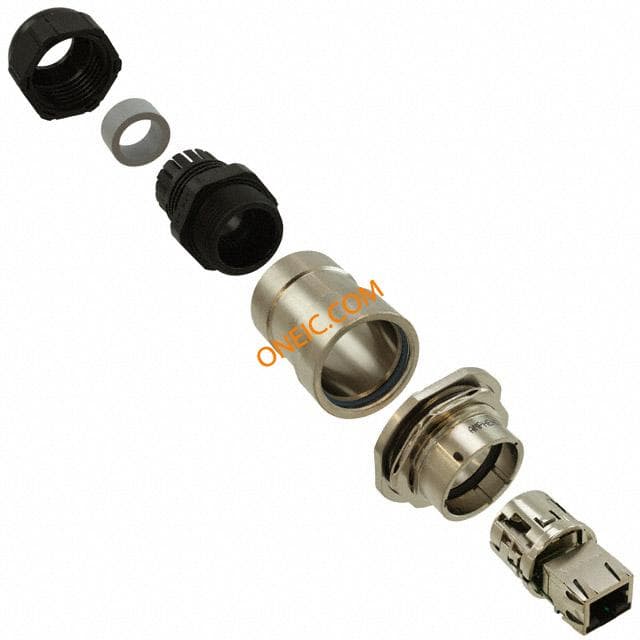

RJF7PE1N
amphenol pcd
Conn RJ-45 RCP 8 POS ST Jam Nut 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS Modular Connectors / Ethernet Connectors Female RJ45 Nickel Inline Jam Nut Recpt RJ FIELD IP67 INLINE RECEPT HEX NUT MOUNTING RJ45 STND NICKEL
RJF7SA1B
amphenol pcd
Conn RJ-45 RCP 8 POS ST Jam Nut 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS connector;metal circ;jam nut recept;rj45 to rj45;transversal seal;black finish Modular Connectors / Ethernet Connectors RJ SEALED JAM NUT R RJ45 CODE A BLACK connector, metal circ, jam nut recept, rj45 to rj45, transversal seal, black finish

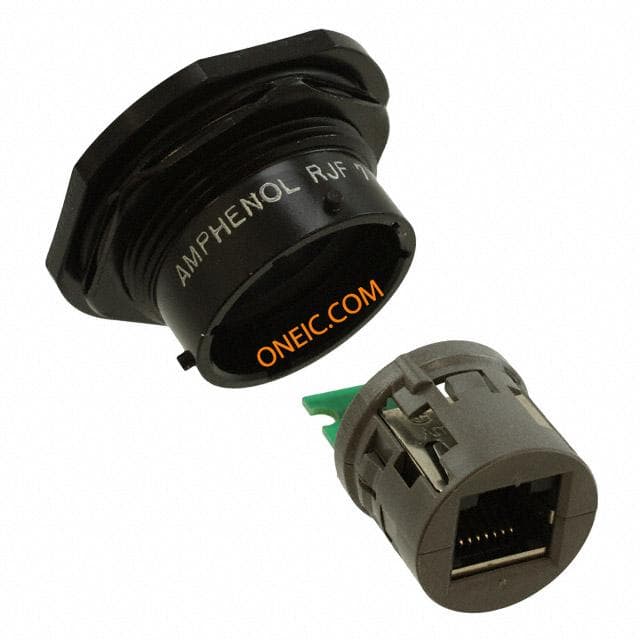

RJF72B00
amphenol pcd
Conn RJ-45 RCP 8 POS Solder ST Jam Nut 8 Terminal 1 Port Cat 5e CONN MOD JACK 8P8C Modular Connectors / Ethernet Connectors 8-Hole RJ45 Cordset Jam Nut Receptacle connector, metal circ, jam nut recept, rj45 to 8 hole pc board, black finish
