RJF71B
| 制造商 | Amphenol Corporation |
| 描述 | Conn RJ-45 RCP 8 POS ST Jam Nut 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS Female Jam Nut Panel Mount Field RJ45 Connector, LAN Category Cat5e connector;metal circular;jam nut recept;bayonet coupling;rj45 ethernet;black Modular Connectors / Ethernet Connectors RJ45 Jam Nut Recpt Female Black connector, metal circular, jam nut recept, bayonet coupling, rj45 ethernet, black 保险螺帽 面板安装 RJ45 连接器 母, Cat5e, 41mm直径 |
| 分类 |
商业参数
| 零件号别名 | 03H9933 308-4615 | 产品类别 | Modular Connectors / Ethernet Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 连接器类型 - 电压输入 | Cat5e | ||
机械参数
| 颜色 | Black | 深度 | 39.1mm |
| 宽度 | 41.3mm | 长度 | 41.3mm |
| 直径 | 41mm | 屏蔽 | Unshielded |
| 方向 | Straight | 屏蔽类型 | 无屏蔽 |
| 重量（g） | 37.40000 | 安装类型 | Jam Nut |
| 连接器类型 | 母座 | 安装样式 | Screw |
| 安装特性 | Front Side Nut | 主要材料 | Sealed |
| 端接样式 | Solder Terminal | 外壳材料及表面处理 | Metal |
产品信息
| 类型 | RJ-45 | 等级 | Cat5e |
| 连接器性别 | RCP | 系列 | RJF |
| 产品特性 | Circular Bayonet Coupling | 方向 | 直 |
| USOC 编码 | RJ45 | 插座类型 | Jam Nut |
| 制造商全称 | RJField Series | 端口数 | 1 |
| 网络技术 | Cat5e | 输出配置 | Panel Mount, Bulkhead |
| 性能类别 | Cat 5e | 应用细节 | For robotics, industrial process control, CNC machines, special machines, motion control, data acquisition and transmission in harsh environments and tele-maintenances |
| 转换端（适配器端） | Jack, 8p8c (RJ45) | 转换自（适配器端） | Jack, 8p8c (RJ45) |
环境参数
| 额定等级 | Cat5e | 密封等级 | IP67 |
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 85°C |
文档与媒体
相关型号
RJF71B
amphenol pcd
Conn RJ-45 RCP 8 POS ST Jam Nut 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS Female Jam Nut Panel Mount Field RJ45 Connector, LAN Category Cat5e connector;metal circular;jam nut recept;bayonet coupling;rj45 ethernet;black Modular Connectors / Ethernet Connectors RJ45 Jam Nut Recpt Female Black connector, metal circular, jam nut recept, bayonet coupling, rj45 ethernet, black 保险螺帽 面板安装 RJ45 连接器 母, Cat5e, 41mm直径

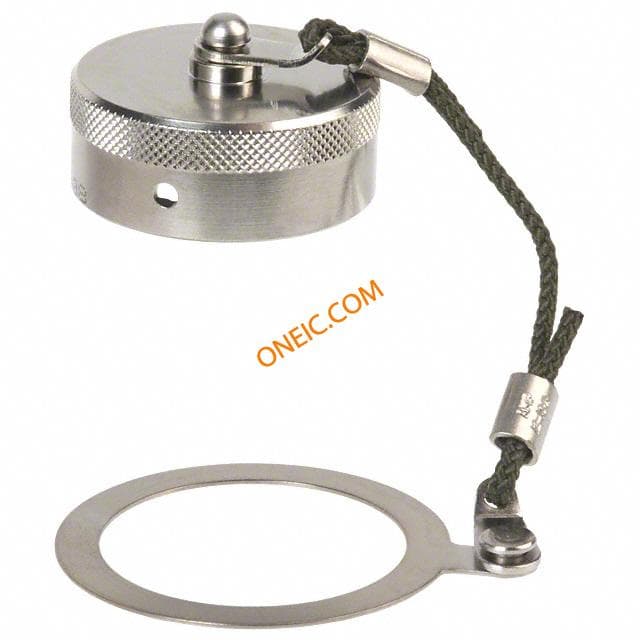

RJFC7N
amphenol pcd
Connector Accessories Metallic Cap Jam Nut Receptacle Nickel CONN ACCY CAP Modular Connectors / Ethernet Connectors Jam Nut Recept Cap RJ45 Cat5e Nickel connector accessory, rj field, cap for jam nut receptacle(bayonet coupling), nickel

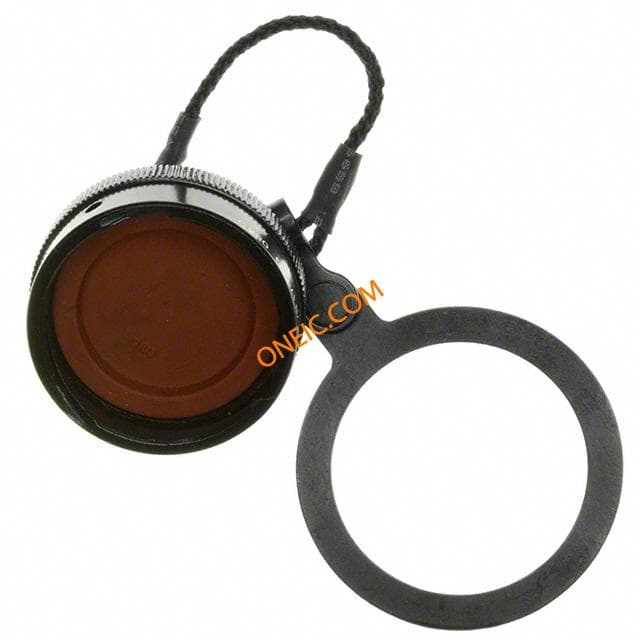

RJFC7B
amphenol pcd
Connector Accessories Metallic Cap Jam Nut Receptacle Black Coating CONN ACCY CAP BLACK Modular Connectors / Ethernet Connectors Jam Nut Recept Cap RJ45 Cat5e Black connector accessory, rj field, protectioncap for jam nut receptacle, black

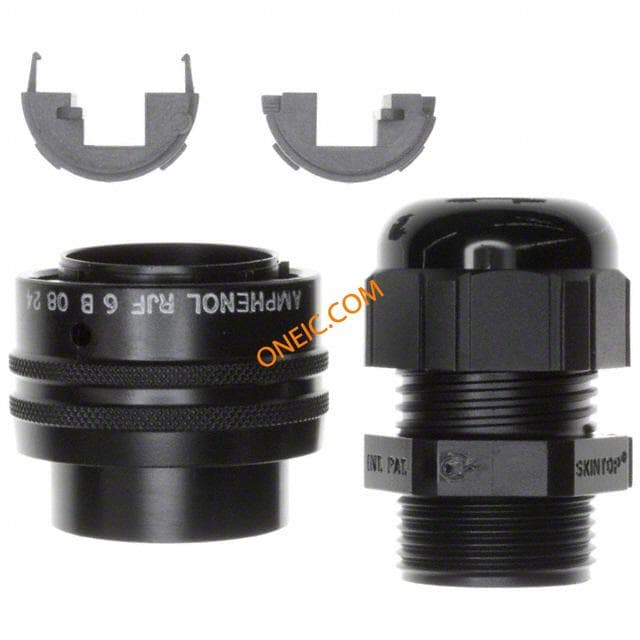

RJF6B
amphenol pcd
Conn RJ-45 PL 8 POS ST Cable Mount 8 Terminal 1 Port Cat 5e CONN MOD HOUSING RJ45 UNSHIELDED Modular Connectors / Ethernet Connectors Plug w/Plastic Gland Black CONNECTOR, MODULAR JACK, SEALED, 8WAY connector, metal circular, str plug, bayonet coupling, rj45 ethernet, black finish
SS-60000-009
bel
Conn Telephone/Telecom F 8 POS 2.03mm Solder RA Thru-Hole 8 Terminal 1 Port Cat 6

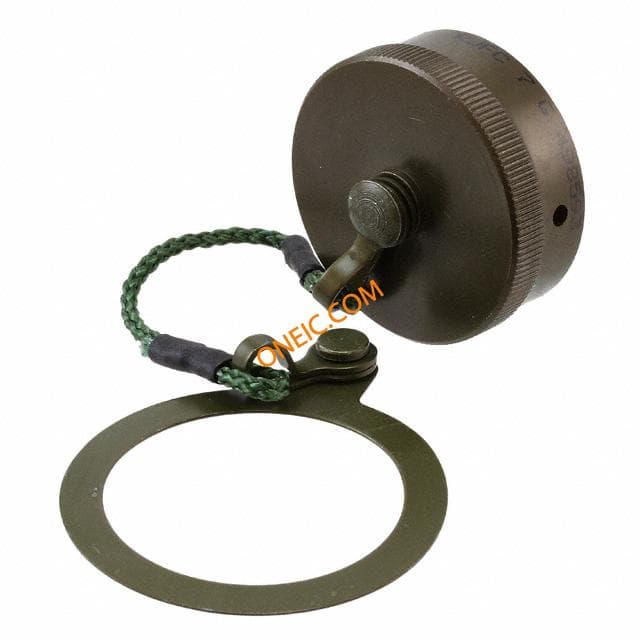

RJFC7G
