点击放大查看

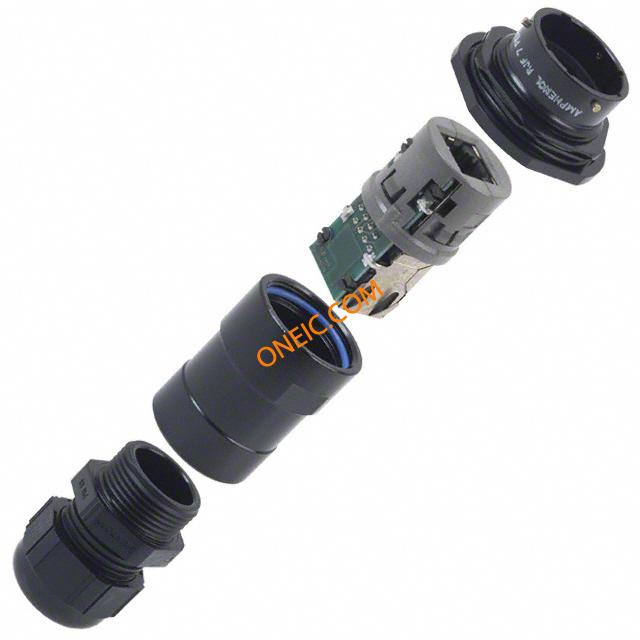

RJF7PE1B
| 制造商 | Amphenol Corporation |
| 描述 | Conn RJ-45 RCP 8 POS ST Jam Nut 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS Modular Connectors / Ethernet Connectors Female RJ45 Black Inline Jam Nut Recpt connector, metal circ, jam nut recept w/backshell, plastic gland, rj45, black finish |
| 分类 |
商业参数
| 其他名称 | APC1053 | 零件号别名 | 20J4019 |
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
机械参数
| 颜色 | Black | 屏蔽 | Unshielded |
| 安装类型 | Jam Nut | 安装样式 | Panel |
| 安装特性 | Front Side Nut | 端接样式 | Solder Terminal |
| 外壳材料及表面处理 | Metal | ||
产品信息
| 类型 | RJ-45 | 连接器性别 | RCP |
| 系列 | RJF | 产品特性 | Circular Bayonet Coupling |
| USOC 编码 | RJ45 | 性能类别 | Cat 5e, Class D |
| 转换端（适配器端） | Jack, 8p8c (RJ45) | 转换自（适配器端） | Jack, 8p8c (RJ45) |
环境参数
| 额定等级 | Cat5e | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | -40°C ~ 85°C | ||
