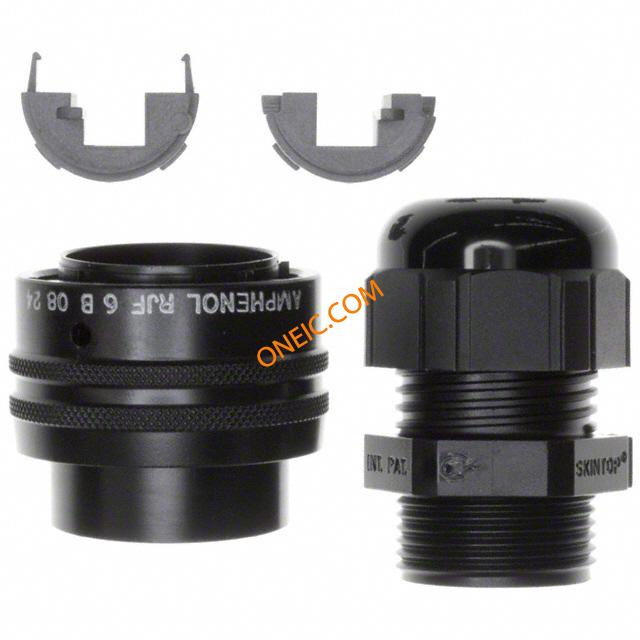

RJF6B
| 制造商 | Amphenol Corporation |
| 描述 | Conn RJ-45 PL 8 POS ST Cable Mount 8 Terminal 1 Port Cat 5e CONN MOD HOUSING RJ45 UNSHIELDED Modular Connectors / Ethernet Connectors Plug w/Plastic Gland Black CONNECTOR, MODULAR JACK, SEALED, 8WAY connector, metal circular, str plug, bayonet coupling, rj45 ethernet, black finish |
| 分类 |
商业参数
| 零件号别名 | 03H9932 308-4610 | 产品类别 | Modular Connectors / Ethernet Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 连接器类型 - 电压输入 | :Cat5e | ||
机械参数
| 颜色 | Black | 深度 | 34.9 |
| 重量 | 0.98 | 包装方式 | Bulk |
| 屏蔽 | Unshielded | 重量（g） | 39.60000 |
| 安装类型 | Cable Mount | 连接器类型 | Housing for Prewired RJ45 Cordset |
| 接触镀层 | :- | 紧固类型 | Bayonet Lock |
| 触头材料 | :- | 壳体材料 | Plastic |
| 总长度 | 57.8 | 主要材料 | Sealed |
| 触点数 | 8 | 接触件端接 | :Solder |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Plug Not Provided | 类型 | RJ-45 |
| 连接器性别 | PL | 系列 | RJF |
| 产品特性 | Shock Resistant, Toolless, Vibration Resistant | USOC 编码 | RJ45 |
| 制造商全称 | RJField Series | 类别编号 | Cat 5e |
| 端口数 | 1 | 应用细节 | For robotics, industrial process control, CNC machines, special machines, motion control, data acquisition and transmission in harsh environments and tele-maintenances |
| 加载位置数 | 8 | ||
环境参数
| 插拔次数 | 500 | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | -40°C ~ 85°C | ||
文档与媒体
相关型号
RJF71B
amphenol pcd
Conn RJ-45 RCP 8 POS ST Jam Nut 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS Female Jam Nut Panel Mount Field RJ45 Connector, LAN Category Cat5e connector;metal circular;jam nut recept;bayonet coupling;rj45 ethernet;black Modular Connectors / Ethernet Connectors RJ45 Jam Nut Recpt Female Black connector, metal circular, jam nut recept, bayonet coupling, rj45 ethernet, black 保险螺帽 面板安装 RJ45 连接器 母, Cat5e, 41mm直径

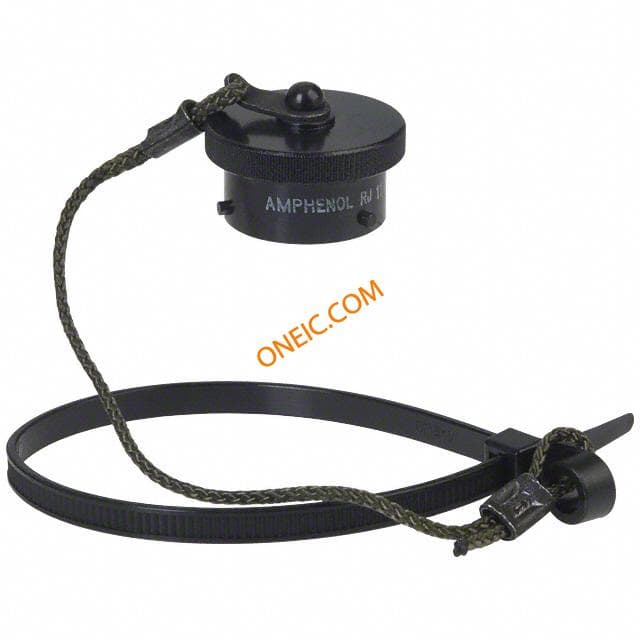

RJFC6B
amphenol pcd
Connector Accessories Metallic Cap Plug Black Coating CONN ACCY CAP BLACK Modular Connectors / Ethernet Connectors Metallic Plug Cap RJ45 Cat5e Black connector accessory, rj field, cap for straight plug(bayonet coupling), black

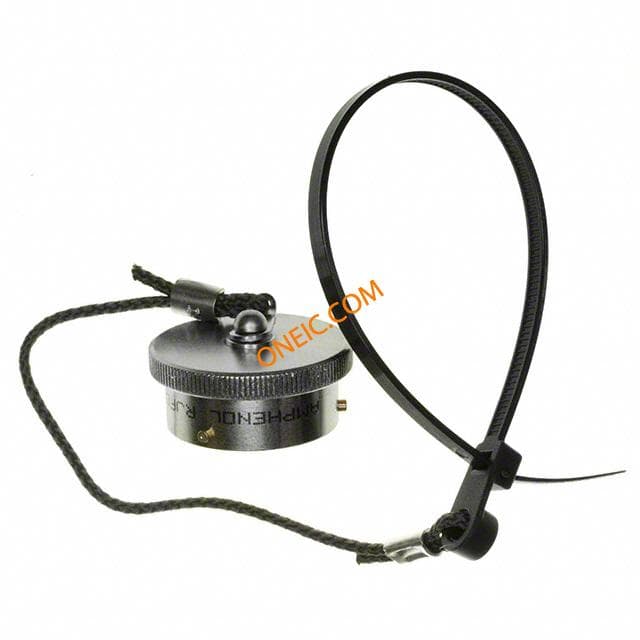

RJFC6N
amphenol pcd
Connector Accessories Metallic Cap Plug Nickel CONN ACCY CAP Metalic Cap for plug,Nickel Modular Connectors / Ethernet Connectors Metallic Plug Cap RJ45 Cat5e Nickel connector accessory, rj field, cap for straight plug(bayonet coupling), nickel Amphenol 防尘盖

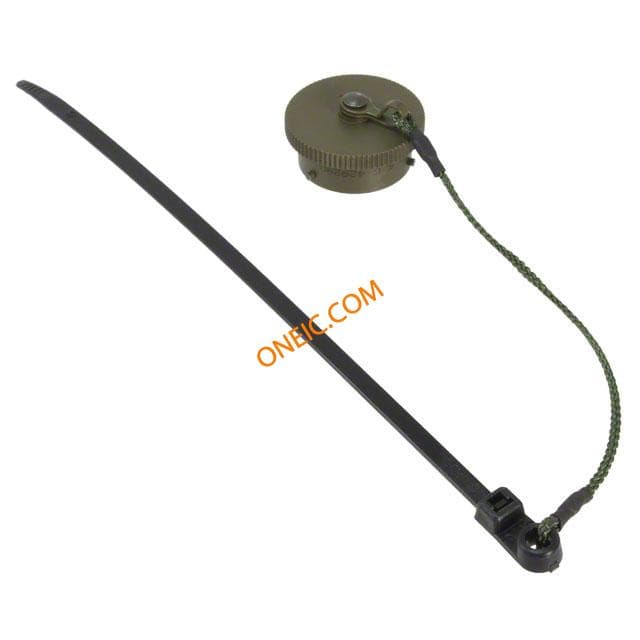

RJFC6G
