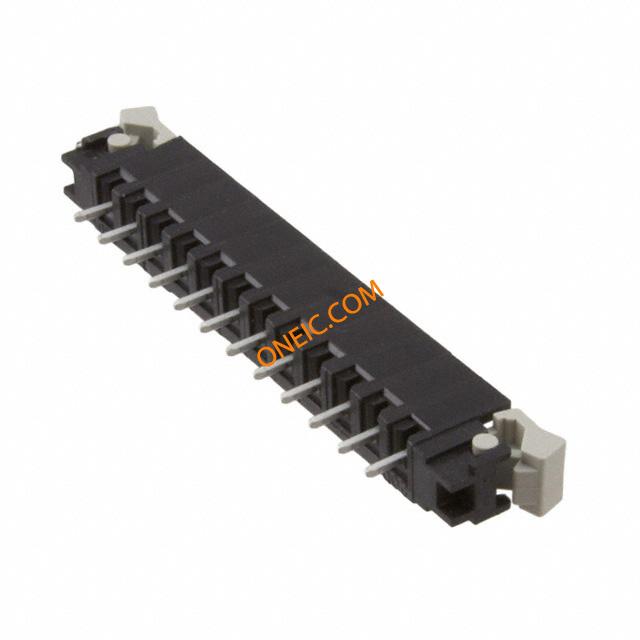

ELFH12250J
| 制造商 | |
| 描述 | VERT HEAD CLOSED ENDS EJECT EARS Pluggable Terminal Blocks Hor Header W/Eject Ears 12pos .2in TERM BLOCK HDR 12POS VERT 5.08MM |
| 分类 |
商业参数
| 其他名称 | APC1159 | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 V | 最大额定电流 | 15 A |
| 绝缘电阻 | 100000 MOhms | ||
机械参数
| 颜色 | Black | 间距 | 5 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 安装类型 | Through Hole | 接触镀层 | Tin |
| 安装样式 | Through Hole | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 端接样式 | Through Hole | 排针方向 | Vertical |
| 触点数 | 12 | 位数 | 12 |
| 接线端子类型 | Header, Male Pins, Shrouded (4 Side) | ||
产品信息
| 产品特性 | Ejectors | 层数 | 1 |
| 每层位数 | 12 | ||
