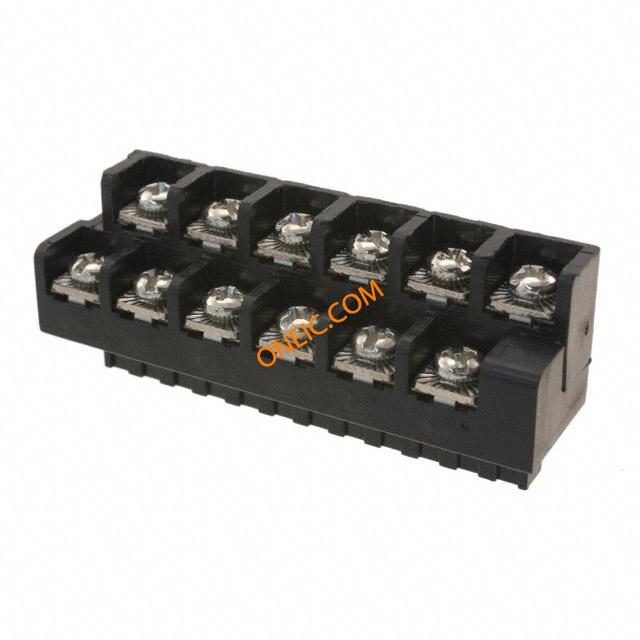

FXPT12200

制造商	Amphenol Corporation
描述	Conn Terminal Block F 12 POS 5.08mm Screw ST Cable Mount 15A Barrier Terminal Blocks FLEXIPLUG 5.08MM 12POS BLACK Conn Terminal Block F 24 POS 5.08mm Screw ST Cable Mount 15A TERM BLOCK PLUG 24POS 5.08MM Conn; Term Blk; Plug; Screw; 12; 5.08 mm; 26-12 AWG; 15 A; 300 V
分类	连接器解决方案接线端子接线端子与连接器（通用型）

对参数有疑问？问 AI 助手

商业参数

产品	Barrier Terminal Blocks	其他名称	APC1144
零件号别名	308-0164	产品类别	Barrier Terminal Blocks
标准包装数量	Bulk

合规参数

RoHS	RoHS Compliant	欧盟RoHS	Compliant
材料阻燃等级	UL 94 V-0

电气参数

电流	15A	电压	300V
额定电压	300 V	最大额定电流	15 A
最小输入电压	300V

机械参数

颜色	Black	深度	29.05
间距	5.08 mm	高度	17.52
包装方式	Bulk	导线线规	12-26 AWG
端接方式	Screw	外壳颜色	Black
安装类型	Cable Mount	安装样式	Through Hole
排数	1	插头进线方向	90°
触头材料	Copper Alloy	壳体材料	Polyphenylene Oxide (PPO)
总长度	67.81	端接样式	Screw
触点数	12	位数	24
接线端子类型	Plug, Female Sockets	线规或范围 - AWG	26-12
线规或范围 - mm²	12

产品信息

类型	Terminal Block	连接器性别	F
产品特性	Retention Latches (Non-Wire Side)	层数	2
每层位数	12

环境参数

工作温度

0 C to + 105 C

文档与媒体

PDF 文档

FXPTzz2zz Drawing
