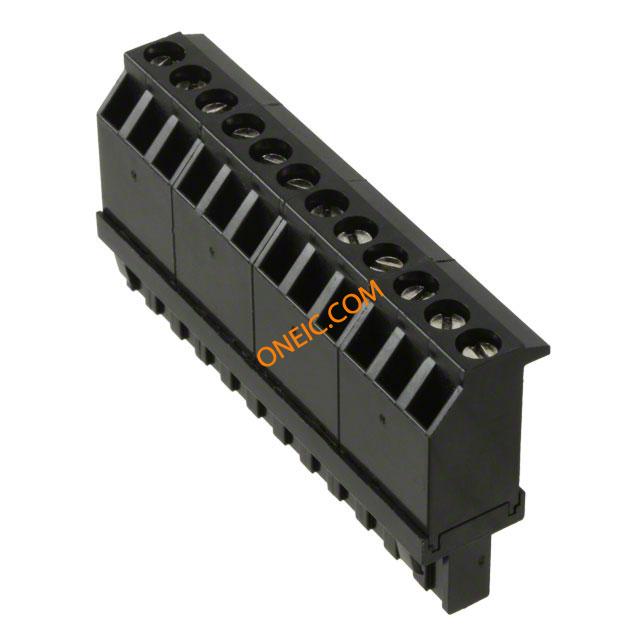

点击放大查看
ELFF12230
| 制造商 | |
| 描述 | Conn Terminal Block F 12 POS 5.08mm Screw ST Cable Mount 15A Pluggable Terminal Blocks Plug Top Entry 12 pos .2in TERM BLOCK PLUG 12POS 5.08MM |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 其他名称 | APC1184 |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | Bulk |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电流 | 15A | 电压 | 300V |
| 最大额定电流 | 15 | 最小输入电压 | 300V |
机械参数
| 颜色 | Black | 深度 | 30.93 |
| 间距 | 5.08 mm | 高度 | 14.37 |
| 包装方式 | Bulk | 导线线规 | 14-26 AWG |
| 端接方式 | Screw | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 接触镀层 | Tin |
| 排数 | 1 | 插头进线方向 | 90° |
| 触头材料 | Copper Alloy | 壳体材料 | Polyphenylene Oxide |
| 总长度 | 60.96 | 触点数 | 12 |
| 位数 | 12 | 接线端子类型 | Plug, Female Sockets |
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 产品特性 | Retention Latches (Wire Side) | 层数 | 1 |
| 每层位数 | 12 | ||
