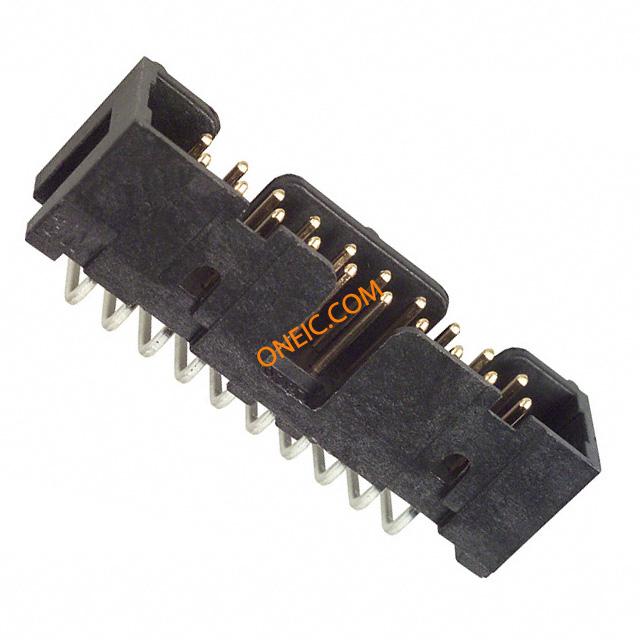

N2520-5002-RB
| 制造商 | 3M Company |
| 描述 | CONN HEADER 20 POS RT ANGLE GOLD Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Header,4-Wall;CopperAlloy;200uin.60/40Tin/Lead;2;Black;0.38in.;20 |
| 分类 |
商业参数
| 标准包装数量 | 504 | ||
电气参数
| 最大额定电流 | 2 A | ||
机械参数
| 颜色 | Black | 深度 | 12.44 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 8.59 mm |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Copper Alloy | 总长度 | 32.72 mm |
| 触点数 | 2 | 位数 | 20 |
| 接触长度 - 配合 | 0.243" (6.17mm) | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55C to 105C | ||
