点击放大查看

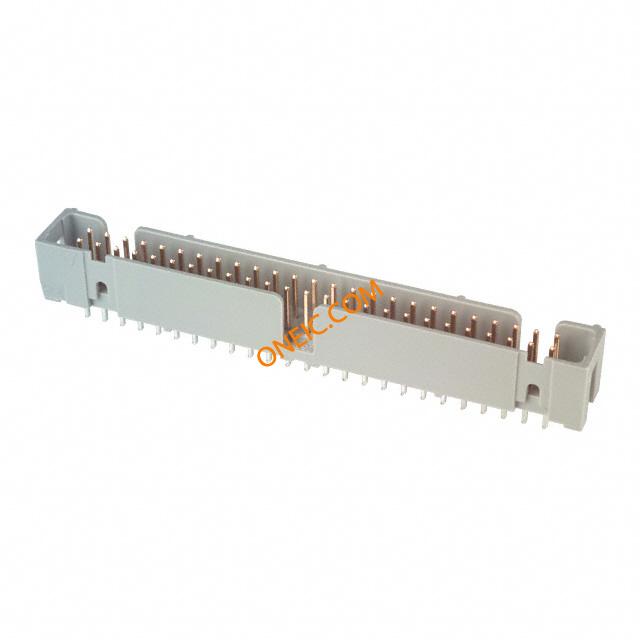

2550-6002UB
| 制造商 | 3M Company |
| 描述 | SHROUDED HEADER 50 POS STRAIGHT .100" Ã .100" Low Profile, SMT Straight, Straight and Rt Angle Through-Hole, 2500 Series WIRE-BOARD CONN, HEADER, 50POS, 2ROW, 2.54MM PROFILEHEADER;STRAIGHTSOLDERPINS;50CONTACTS |
| 分类 |
商业参数
| 标准包装数量 | 224 | ||
合规参数
| 海关税号 | 85369010 | 认证机构 | cUL,UL |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 最大额定电流 | 2A | ||
机械参数
| 颜色 | Gray | 间距 | 0.100" (2.54mm) |
| 重量 | 0.005 | 包装方式 | Bulk |
| 出线方向 | LowProfile | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚长度（针脚） | 0.243" | 安装类型 | Through Hole |
| 行程角度 | Straight | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 排数 | 2 |
| 触头材料 | :Copper Alloy | 壳体材料 | GlassFilledPolyester |
| 总长度 | 2.788" | 插针孔直径 | 0.1" |
| 触点数 | :50 | 接触件端接 | :Through Hole Vertical |
| 位数 | 50 | 接触长度 - 配合 | 0.243" (6.17mm) |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | PCBPlug | 连接器性别 | :Header |
| 系列 | :2500 | 产品特性 | Breakaway,Four-Wall |
| 制造商全称 | 2500Series | 加载位置数 | All |
环境参数
| 工作温度 | -55to+105°C | ||
