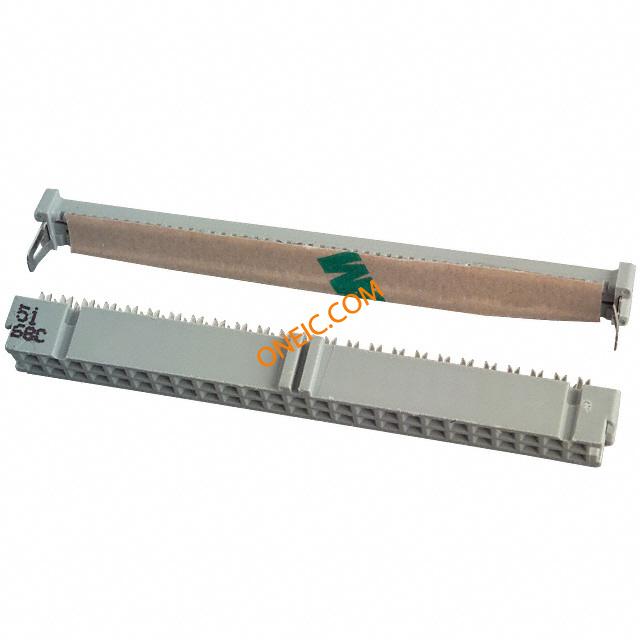

3425-7600

点击放大查看

3425-7600

制造商
3M Company
描述ヘッダ & ワイヤハウジング 50P IDC SOCKET .100" × .100" Wiremount for .050" Pitch Cable SOCKET CONN 50 CONT CLOSED W/POL 3M 3000 Series 2.54mm 50 Way 2 Row Right Angle PCB Socket Cable Mount Socket; Glass Filled Polyester; Copper Alloy; Nickel (Underplating; U Slot) Headers & Wire Housings 50P IDC SOCKET WIRE-BOARD CONN, SOCKET, 50POS, 2.54MM Socket;GlassFilledPolyester;CopperAlloy;Nickel(Underplating,USlot) 3M 3000 系列 2行 50路 2.54mm节距 直角 连接器 , 电缆安装
分类
连接器解决方案压接与焊接端子/接头压接端子（通用）
对参数有疑问？问 AI 助手

商业参数

零件号别名05400733641 80610120950产品类别Headers & Wire Housings
标准包装数量300工厂包装数量100

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
RoHS合规（认证）Yes

电气参数

量程（°/s）:3M - 3000 Series最大额定电流1A

机械参数

颜色Gray间距0.100" (2.54mm)
重量2.100 lbs包装方式Bulk
导线类型Ribbon Cable导线线规26-30 AWG
排间距0.100" (2.54mm)端接方式IDT
触头类型Female Socket安装类型Free Hanging (In-Line)
连接器类型Receptacle接触镀层Gold
安装样式Cable排数2
触头材料Copper Alloy电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
触点数50接触件端接:IDC / IDT
位数50接触镀层厚度30µin (0.76µm)

产品信息

类型Ribbon Cable连接器性别:Receptacle
系列3000产品特性Closed End, Polarizing Key
产品子类型Receptacles / Sockets - Housings

文档与媒体

在线文档
3000 Series Wiremount Socket

相关型号

3433-4305

3433-4305

3M Electronic Solutions Division

Headers & Wire Housings 50P LOPRO STRT WRAP CONN HEADER 50POS STR LONG LA

详情
30350-6002HB

30350-6002HB

3m interconnect solutions

Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole .100" × .100" Low Profile Four-Wall, Straight and Right Angle CONN HEADER 50POS DL STR GOLD Headers & Wire Housings 50P STRT 4WALL GLDFL

¥2.9172
详情
N3433-5302RB

N3433-5302RB

3m interconnect solutions

Conn Ejector Header HDR 50 POS 2.54mm Solder RA Thru-Hole .100" × .100" Latch/Ejector, Straight and Right Angle CONN HEADER 50PS R/A LONG LATCH 3M 3000 Series 2.54mm Pitch 50 Way 2 Row Right Angle PCB Header, Solder Termination, 2A Headers & Wire Housings 50P R/A LONG PIN SOLDER TAIL 30u GOLD HEADER, RIGHT ANGLE, L/LATCH, 50WAY 3M50WRTANGHDRCLASS2 3M 3000 系列 2.54mm节距 50路 (2排) 直角 PCB 针座, 焊接端接, 2A , 通孔

¥18.1200
详情
暂无图片

4650-7201

3m interconnect solutions

Conn Ejector Header PL 50 POS 2.54mm IDT RA Cable Mount .100" × .100" Connector For .050" Pitch Cable CONN PLUG 50POS W/OUT FLANGE Headers & Wire Housings 50P IDC HEADER WITH SHORT LATCHES

¥40.6640
详情
N3433-5203RB

N3433-5203RB

3m interconnect solutions

Conn Ejector Header HDR 50 POS 2.54mm Solder RA Thru-Hole .100" × .100" Latch/Ejector, Straight and Right Angle CONN HEADER 50POS R/A S-LATCH Headers & Wire Housings 50P R/A SOLDER TAIL LATCH/EJECTOR

¥23.5960
详情
N3433-6603RB

N3433-6603RB

3m interconnect solutions

Conn Ejector Header HDR 50 POS 2.54mm Solder ST Thru-Hole .100" × .100" Latch/Ejector, Straight and Right Angle CONN HEADER 50POS STR GOLD T/H Headers & Wire Housings 50P VERT PCB HDR

¥25.6360
详情
N3433-600T02RB

N3433-600T02RB

3m interconnect solutions

Conn Ejector Header HDR 50 POS 2.54mm Press Fit ST Thru-Hole .100" × .100" Latch/Ejector, Straight, Compliant Pin CONN HEADER 50POS STR NO LATCH Headers & Wire Housings 50/HDR/STR/.175/CP 30AVG

¥58.0720
详情
暂无图片

3433-600T02TC

3m interconnect solutions

50/HDR/BX/STR/CP/.175/30MIN/90:10 .100" × .100" Latch/Ejector, Straight, Compliant Pin CONN HEADER 50POS STR NO LATC Headers & Wire Housings BOARDMT HDR 50 POSITIONS

¥59.8400
详情
D2550-6V0C-AR-WG

D2550-6V0C-AR-WG

3m interconnect solutions

Conn Shrouded Header HDR 50 POS 2.54mm Solder ST SMD T/R CONN HEADER 50POS SMD VERT 10AU Headers & Wire Housings 50P 4-WALL HEADER VERTICAL SMT 10U AU

¥23.1880
详情
暂无图片

3433-2202

3M Electronic Solutions Division

Headers & Wire Housings 50P LOPRO STRT SDRTL .100" × .100" Three-Wall Latch/Ejector, Straight and Right Angle CONN HEADER 50PS STR SHORT LA Conn Ejector Header HDR 50 POS 2.54mm Solder ST Thru-Hole

¥36.9240
详情
暂无图片

3433-1202

3M Electronic Solutions Division

Headers & Wire Housings 50P LOPRO R/A SLDRTL CONN HEADER 50PS R/A SHORT LA

¥41.6840
详情

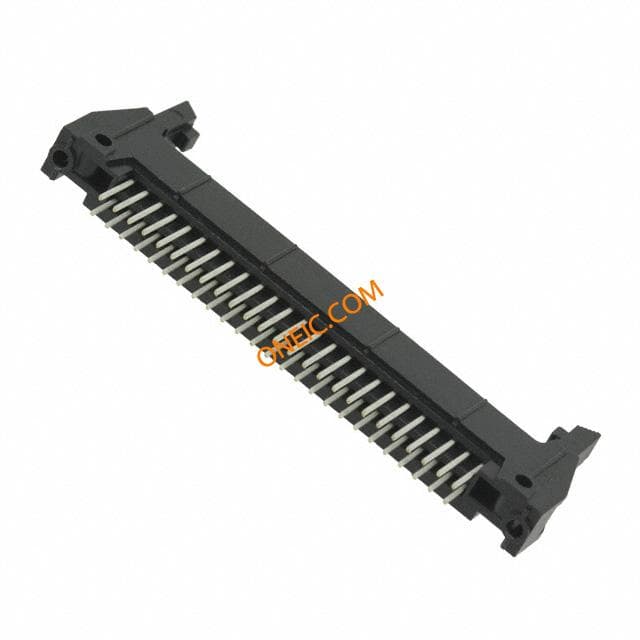

N3433-6303RB
