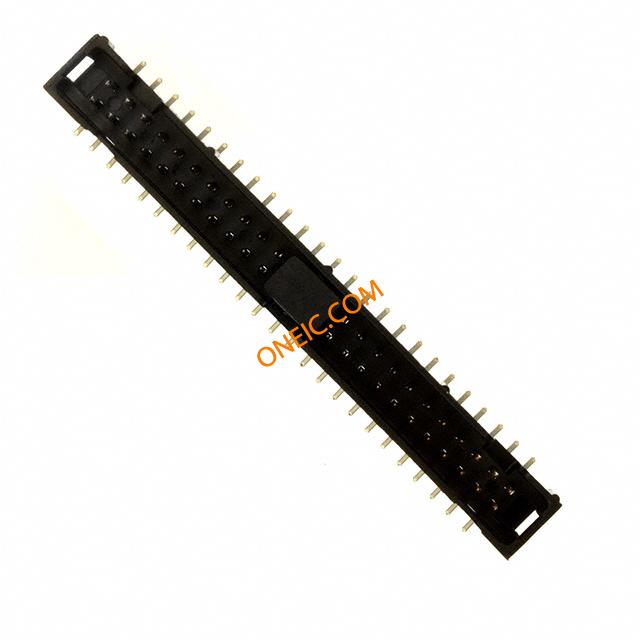

点击放大查看
D2550-6V0C-AR-WG
| 制造商 | 3M Company |
| 描述 | Conn Shrouded Header HDR 50 POS 2.54mm Solder ST SMD T/R CONN HEADER 50POS SMD VERT 10AU Headers & Wire Housings 50P 4-WALL HEADER VERTICAL SMT 10U AU |
| 分类 |
商业参数
| 其他名称 | MSH50ECT | 零件号别名 | 05111990733 80001204603 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 2 A | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Tape & Reel (TR) | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Surface Mount | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Polyester |
| 端接样式 | SMD | 第一触头极性 | Pin (Male) |
| 触点数 | 50 | 位数 | 50 |
| 接触长度 - 配合 | 0.243" (6.17mm) | 接触镀层厚度 | 10µin (0.25µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | D2500 | 产品子类型 | Headers |
| 加载位置数 | All | ||
