8550-4500PL

制造商	3M Company
描述	Headers & Wire Housings 50P STRT PLRZD SKT .100" Ã .100" Centerbump Polarization with Straight Solder Tails, 10 - 64 contacts CONN SOCKET PCB VERT 50POS .1" 3M 2.54mm 50 Way 2 Row Straight PCB Socket Through Hole Socket Strip CONNECTOR, RECEPTACLE, THT, 2.54MM, 50P PolarizedBoardmountSocket(50pos).100centerlinestraightsoldertails Socket; IDC; female; PIN:50; straight; THT; gold plated; 3A; 2.54mm 3M 8500 系列 2行 50路直 2.54mm节距通孔印刷电路板插座, 插座板
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	54745225321 JE150318796	产品类别	Headers & Wire Housings
标准包装数量	100	工厂包装数量	100

合规参数

RoHS	Compliant	海关税号	85369010
认证机构	cUL,UL	材料阻燃等级	:UL94V-0

电气参数

额定电压	1 kV	极数	:50
工作电压	:350V	最大额定电流	1A
绝缘电阻	:1000Mohm

机械参数

颜色	Gray	间距	0.100" (2.54mm)
重量	0.006	材料（通用）	:Glass Filled Polyester
包装方式	Bulk	出线方向	LowProfile
方向	straight	排间距	0.100" (2.54mm)
端接方式	Press-Fit	触头类型	Female Socket
引脚间距	:2.54mm	引脚长度（针脚）	0.62"
柱间距	2.54mm	安装类型	Through Hole
行程角度	Straight	连接器类型	Receptacle
接触镀层	Gold	排数	2
触头材料	Copper Alloy	壳体材料	Polyester
总长度	2.68"	包装数量	100
主要材料	Boardmount	连接器 - 电缆	socket
插针孔直径	0.1"	端接样式	Through Hole
第一触头极性	Socket (Female)	连接器颜色	:Grey
触点数	50	接触件端接	:Through Hole Vertical
介电材料	PBT	位数	50
安装孔直径	0.039"	接触镀层厚度	12µin (0.30µm)
触点材料 - 镀层	gold plated	第一连接器安装特征	2x25

产品信息

SPG	100	类型	Socket Strip
连接器性别	:Receptacle	系列	8500
产品特性	Polarizing Key	极性	:Bump
CAD图纸	3D CAD Model	制造商全称	8500Series
产品子类型	Receptacles / Sockets - PCB	单元数量	1
加载位置数	All

环境参数

插拔次数

:200

工作温度

:105°C

文档与媒体

PDF 文档

74893.pdf

相关型号

3433-4305

3M Electronic Solutions Division

Headers & Wire Housings 50P LOPRO STRT WRAP CONN HEADER 50POS STR LONG LA

详情

30350-6002HB

3m interconnect solutions

Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Low Profile Four-Wall, Straight and Right Angle CONN HEADER 50POS DL STR GOLD Headers & Wire Housings 50P STRT 4WALL GLDFL

¥2.9172

详情

N3433-5302RB

3m interconnect solutions

Conn Ejector Header HDR 50 POS 2.54mm Solder RA Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 50PS R/A LONG LATCH 3M 3000 Series 2.54mm Pitch 50 Way 2 Row Right Angle PCB Header, Solder Termination, 2A Headers & Wire Housings 50P R/A LONG PIN SOLDER TAIL 30u GOLD HEADER, RIGHT ANGLE, L/LATCH, 50WAY 3M50WRTANGHDRCLASS2 3M 3000 系列 2.54mm节距 50路 (2排) 直角 PCB 针座, 焊接端接, 2A , 通孔

¥18.1200

详情

暂无图片

4650-7201

3m interconnect solutions

Conn Ejector Header PL 50 POS 2.54mm IDT RA Cable Mount .100" Ã .100" Connector For .050" Pitch Cable CONN PLUG 50POS W/OUT FLANGE Headers & Wire Housings 50P IDC HEADER WITH SHORT LATCHES

¥40.6640

详情

D3433-5002-AR

3m interconnect solutions

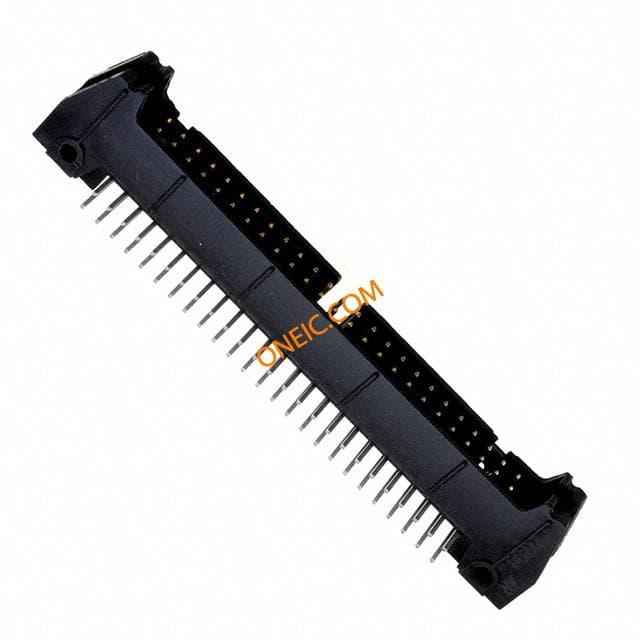

Conn Ejector Header HDR 50 POS 2.54mm Solder RA Thru-Hole CONN HDR 50POS R/A NO LATCH 10AU
