点击放大查看

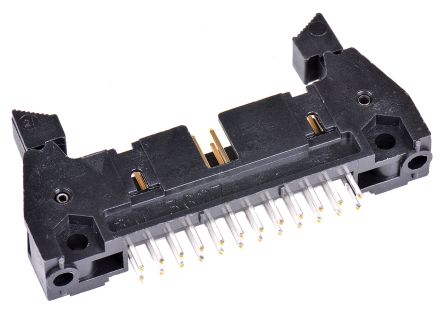

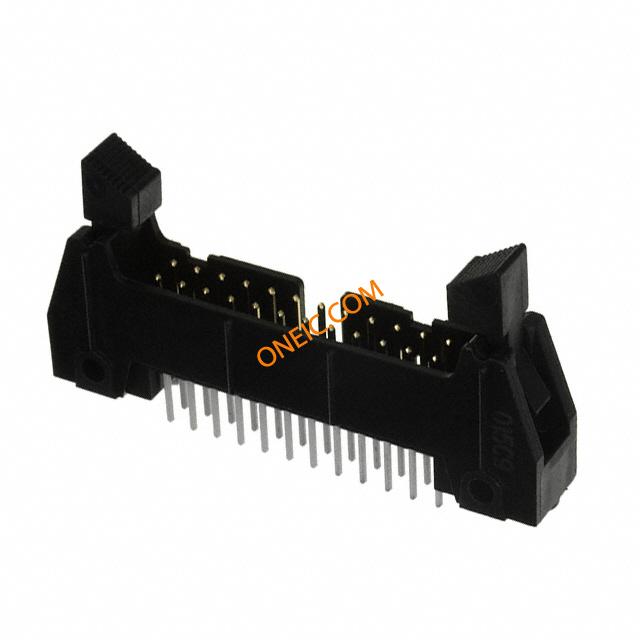

N3627-6202RB
| 制造商 | 3M Company |
| 描述 | Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 24PS STR SHORT LATCH 3M 3000 Series 2.54mm Pitch 24 Way 2 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings 24P STRT SHORT PIN SOLDER TAIL 30u GOLD 3M 3000 系列 2.54mm节距 24路 (2排) 直 PCB 针座, 焊接端接, 2A , 通孔 |
| 分类 |
商业参数
| 零件号别名 | 05111162763 80400031714 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | RoHS合规（认证） | Yes |
电气参数
| 最大额定电流 | 2A | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Bulk | 方向 | 直 |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Latch, Short/Eject Hooks | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | Polyester |
| 端接排数 | 焊接 | 端接样式 | Through Hole |
| 触点数 | 24 | 位数 | 24 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | 3000 | 覆盖范围 | 覆盖 |
| 产品子类型 | Headers | 加载位置数 | All |
