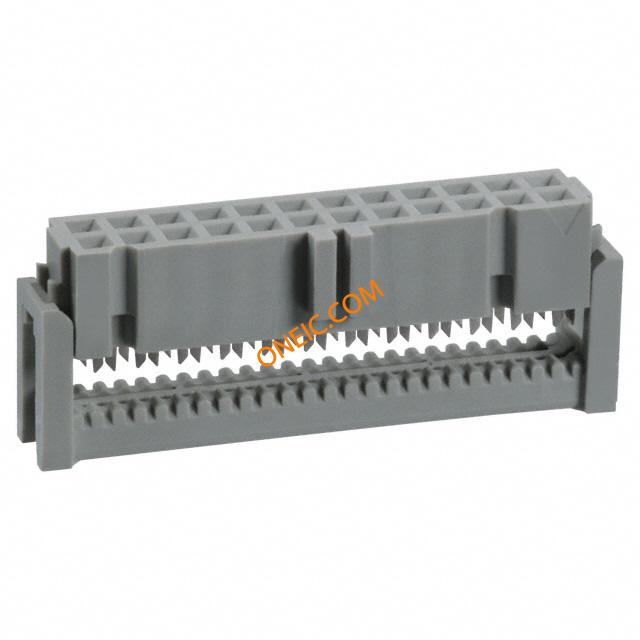

89124-0101
| 制造商 | 3M Company |
| 描述 | Conn IDC Connector SKT 24 POS 2.54mm IDT RA Cable Mount Headers & Wire Housings 24P IDC SOCKET .100" Ã .100" Preassembled Wiremount for .050" Pitch Cable CONN 24 POS IDC SOCKET GOLD POL IDC SOCKET CONNECTOR;24 CONTACTS WIRE TO BOARD, RECEPTACLE, 24POS, 2.54MM IDCSOCKETCONNECTOR;24CONTACTS |
| 分类 |
商业参数
| 零件号别名 | 05400754471 80610706568 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| RoHS合规（认证） | Yes | 材料阻燃等级 | UL94V-0 |
电气参数
| 量程（°/s） | :3M - 891 Series | 最大额定电流 | 1A |
机械参数
| 颜色 | Gray | 间距 | 2.54 mm |
| 重量 | 5 lbs | 包装方式 | Bulk |
| 导线类型 | Ribbon Cable | 导线线规 | 26-28 AWG |
| 排间距 | 0.100" (2.54mm) | 端接方式 | IDT |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 安装样式 | Free Hanging |
| 排数 | 2 | 触头材料 | PhosphorBronze |
| 主要材料 | Wiremount | 电缆端接方式 | IDC |
| 插针孔直径 | 0.1" | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 触点数 | 24 |
| 接触件端接 | :IDC / IDT | 介电材料 | PBT |
| 位数 | 24 | 接触镀层厚度 | 30µin (0.76µm) |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | SKT |
| 系列 | 891 | 产品特性 | Feed Through, Polarizing Key |
| 产品子类型 | Receptacles / Sockets - Housings | ||
环境参数
| 工作温度 | -55to+105°C | ||
