点击放大查看

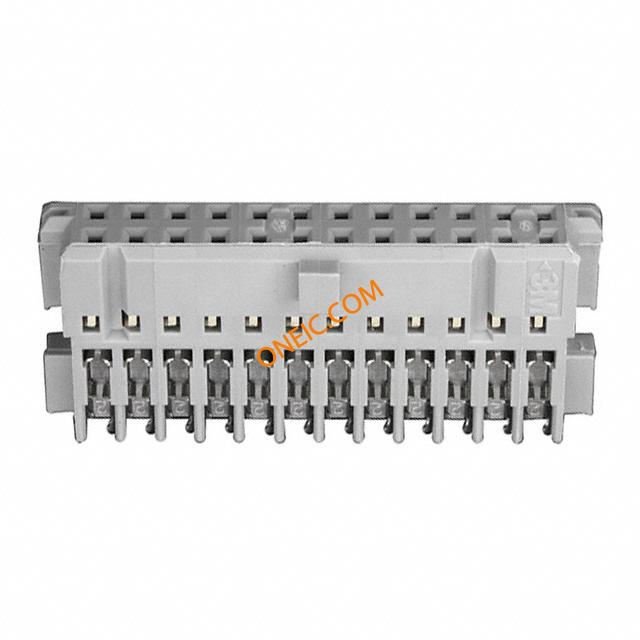

CHG-2024-J01010-KEP
| 制造商 | 3M Company |
| 描述 | ヘッダ & ワイヤハウジング 24P PLRZD IDC SOCKET .100" Ã .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 24POS 24-22 AWG Headers & Wire Housings 24P PLRZD IDC SOCKET |
| 分类 |
商业参数
| 零件号别名 | 05400767711 80610432231 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | RoHS合规（认证） | Yes |
电气参数
| 最大额定电流 | 2 A | ||
机械参数
| 颜色 | Gray | 间距 | 0.100" (2.54mm) |
| 重量 | 1 lb | 包装方式 | Bulk |
| 导线类型 | Discrete or Ribbon Cable | 导线线规 | 22-24 AWG |
| 排间距 | 0.100" (2.54mm) | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 安装样式 | Cable |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 触点数 | 24 |
| 位数 | 24 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Ribbon Cable | 系列 | CHG |
| 产品特性 | Closed End, Polarizing Key | 产品子类型 | Receptacles / Sockets - Housings |
相关型号
N3627-5202RB
3m interconnect solutions
Conn Ejector Header HDR 24 POS 2.54mm Solder RA Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 24PS R/A SHORT LATCH Headers & Wire Housings 24P R/A SHORT PIN SOLDER TAIL 30u GOLD

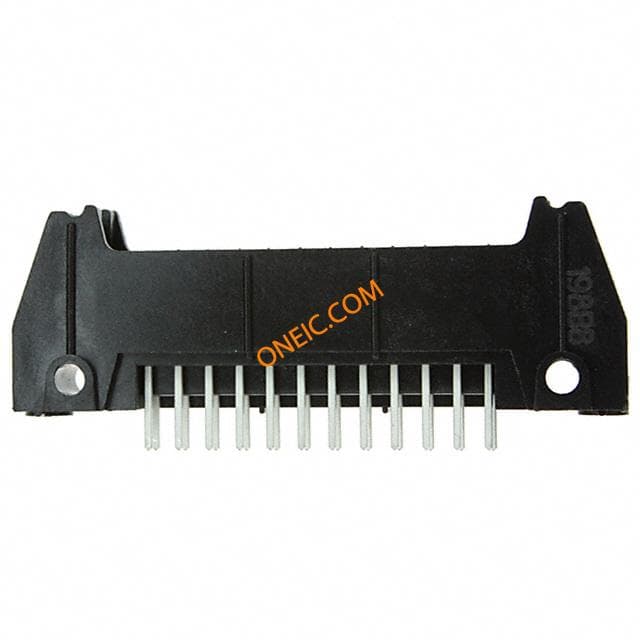

N3627-6002RB
3m interconnect solutions
Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle PROTECT HEADER STRGT 24 CONTACT Headers & Wire Housings 24P STRT HEADER
N3627-5203RB
3m interconnect solutions
Conn Ejector Header HDR 24 POS 2.54mm Solder RA Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 24PS R/A SHORT LATCH HEADER, R/A, W/LATCH, 24WAY
N3627-5302RB
3m interconnect solutions
Conn Ejector Header HDR 24 POS 2.54mm Solder RA Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 24PS R/A LONG LATCH Headers & Wire Housings 24P R/A LONG PIN SOLDER TAIL 30u GOLD

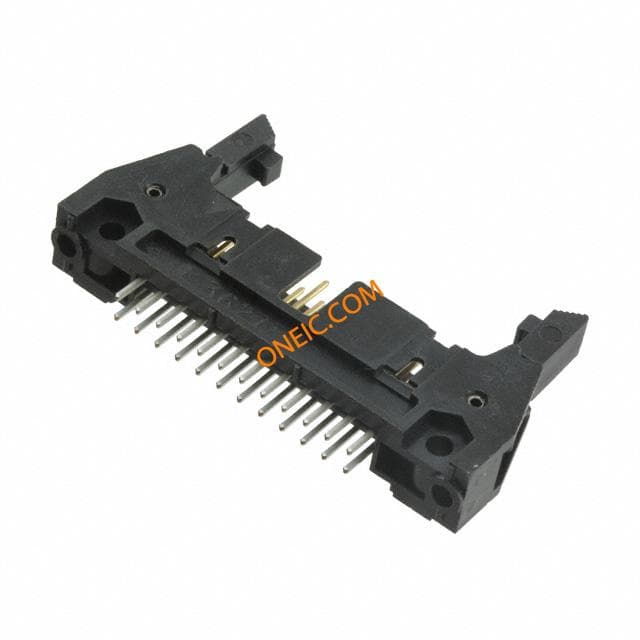

D3627-6302-AR
3m interconnect solutions
Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole CONN HDR 24POS VERT L-LATCH 10AU
D2524-6V0C-AR-WE
3m interconnect solutions
Conn Shrouded Header HDR 24 POS 2.54mm Solder ST SMD T/R CONN HEADER 24POS SMD VERT 10AU Headers & Wire Housings 24P 4-WALL HEADER VERTICAL SMT 10U AU

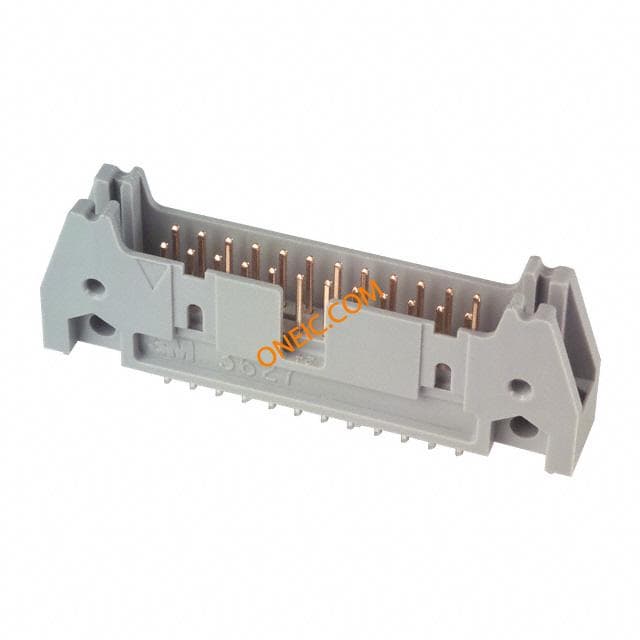

3627-6002
3M Electronic Solutions Division
Headers & Wire Housings 24P STRT SOLDER TAIL .100" Ã .100" Latch/Ejector, Straight and Right Angle PROTECT HEADER STRT 24 CONTACT Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole
N3627-620T02RB
3m interconnect solutions
Conn Ejector Header HDR 24 POS 2.54mm Press Fit ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight, Compliant Pin CONN HEADER 24PS STR SHORT LATCH Headers & Wire Housings 24/HDR/STR/SL/.175 CP/30AVG
3627-6602
3M Electronic Solutions Division
Headers & Wire Housings 24 PIN STR LONG SNAP-IN .062 .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 24POS STR LONG LATCH
N2524-6V0C-RB-WE
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング MOLDED PICK CAP 24 PIN 30u GOLD CONN HEADER 24POS SMT VERT 30AU 3M 2500 Series 2.54mm Pitch 24 Way 2 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings MOLDED PICK CAP 24 PIN 30u GOLD 2500SeriesLowProfileSMT4wallHeader,Straight,.100X.10024position 3M 2500 系列 2.54mm节距 24路 (2排) 直 PCB 针座, 焊接端接, 2A , 表面安装
3627-5003
3M Electronic Solutions Division
Headers & Wire Housings 24 PIN RT ANG NO LTCH/EJC .094-.125 .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 24POS R/A NO LATCH

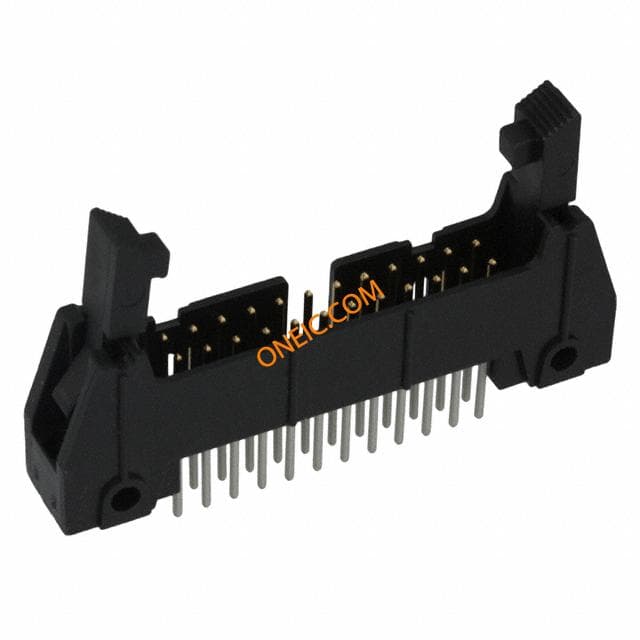

N3627-6303RB
