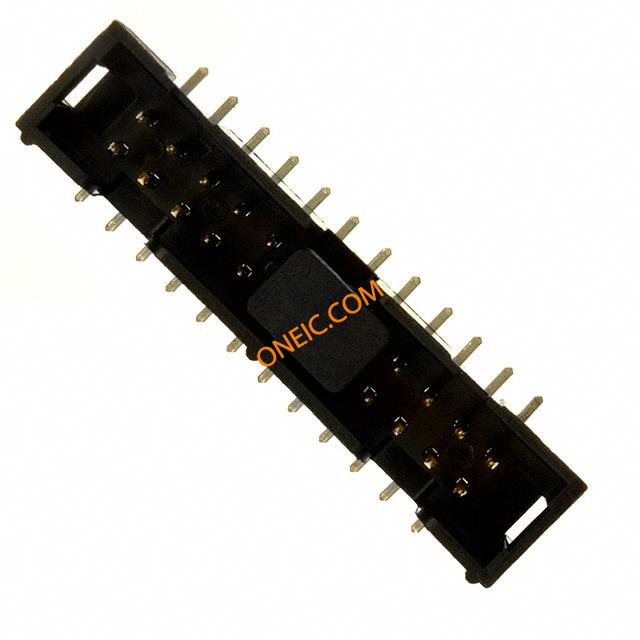

N2524-6V0C-RB-WE
| 制造商 | 3M Company |
| 描述 | ヘッダ & ワイヤハウジング MOLDED PICK CAP 24 PIN 30u GOLD CONN HEADER 24POS SMT VERT 30AU 3M 2500 Series 2.54mm Pitch 24 Way 2 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings MOLDED PICK CAP 24 PIN 30u GOLD 2500SeriesLowProfileSMT4wallHeader,Straight,.100X.10024position 3M 2500 系列 2.54mm节距 24路 (2排) 直 PCB 针座, 焊接端接, 2A , 表面安装 |
| 分类 |
商业参数
| 其他名称 | MSH24KCT | 零件号别名 | 05111174276 80000913592 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 200 |
| 工厂包装数量 | 200 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 认证机构 | cUL,UL |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 最大额定电流 | 2A | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Tape & Reel (TR) | 出线方向 | LowProfile |
| 方向 | 直 | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚长度（针脚） | 0.112" | 安装类型 | Surface Mount |
| 行程角度 | Straight | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | GlassFilledPolyester |
| 总长度 | 1.488" | 主要材料 | HighTemperature |
| 端接排数 | 焊接 | 插针孔直径 | 0.1" |
| 端接样式 | SMD | 触点数 | 24 |
| 位数 | 24 | 接触长度 - 配合 | 0.243" (6.17mm) |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Socket | 系列 | 2500 |
| 覆盖范围 | 覆盖 | 产品特性 | Four-Wall |
| CAD图纸 | 3D CAD Model | 制造商全称 | 2500Series |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 工作温度 | -55to+105°C | ||
