点击放大查看

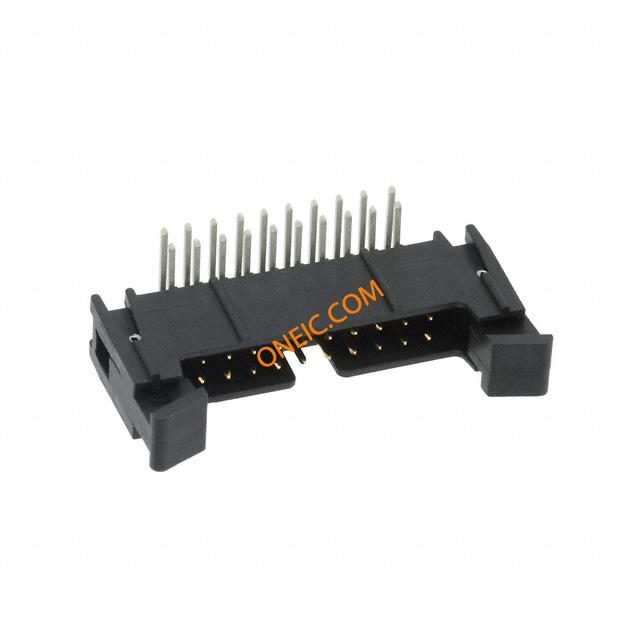

155220-5202-RB
| 制造商 | |
| 描述 | Conn Ejector Header HDR 20 POS 2mm Solder RA Thru-Hole Headers & Wire Housings 20P R/A MOLD LATCH .112 TAIL LENGTH 2 mm x 2 mm Straight & Right Angle Through-Hole, Straight Surfacemount CONN HEADER 2MM 20POS R/A .112" |
| 分类 |
商业参数
| 零件号别名 | 05111117025 80001124769 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | RoHS合规（认证） | Yes |
电气参数
| 最大额定电流 | 1 A | ||
机械参数
| 颜色 | Black | 间距 | 2 mm |
| 包装方式 | Tray | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Right | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Latch Lock/Eject Hooks |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Copper Alloy | 端接样式 | Solder Pin |
| 触点数 | 20 | 位数 | 20 |
| 接触长度 - 配合 | 0.150" (3.81mm) | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | 1552 | 产品子类型 | Headers - Latch / Eject |
| 加载位置数 | All | ||
