首页产品分类连接器解决方案模块化连接器模块化连接器（通用型）152220-0113-GB

点击放大查看

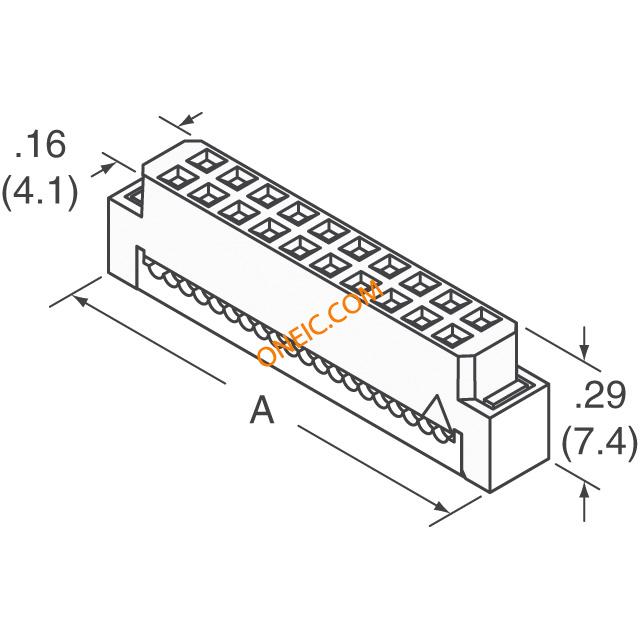

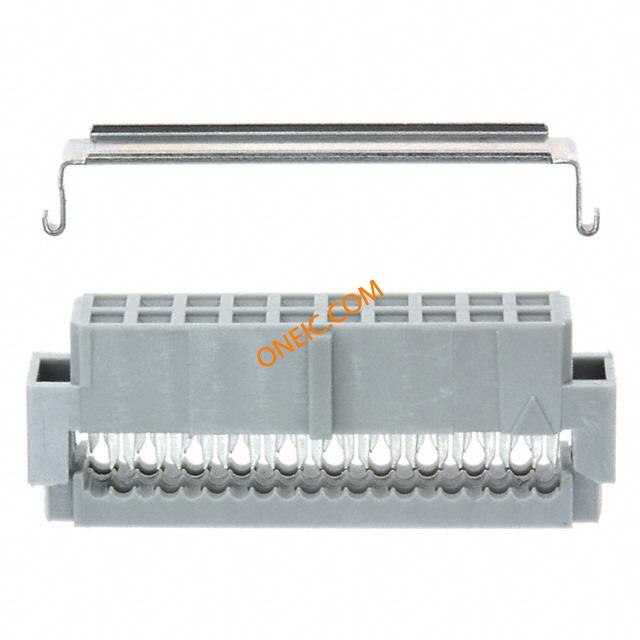

152220-0113-GB

制造商	3M Company
描述	ヘッダ & ワイヤハウジング WIREMT SKT 20 POS 2MM Headers & Wire Housings WIREMT SKT 20 POS 2MM CONN 20POS 2MM IDC SOCKET 30AU
分类	连接器解决方案模块化连接器模块化连接器（通用型）

对参数有疑问？问 AI 助手

商业参数

零件号别名	05113843432 80610811400	产品类别	Headers & Wire Housings
标准包装数量	125	工厂包装数量	125

合规参数

RoHS

RoHS Compliant

电气参数

最大额定电流

1 A

机械参数

颜色	Gray	间距	0.079" (2.00mm)
包装方式	Bulk	导线类型	Ribbon Cable
导线线规	28 AWG	排间距	0.079" (2.00mm)
触头类型	Female Socket	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	接触镀层	Gold
安装样式	Cable	排数	2
触头材料	Copper Alloy	电缆端接方式	IDC
端接样式	IDC	第一触头极性	Socket (Female)
触点数	20	位数	20
接触镀层厚度	30µin (0.76µm)

产品信息

类型	Ribbon Cable	系列	1522
产品特性	Feed Through; Polarizing Key, Strain Relief	产品子类型	Receptacles / Sockets - Housings

文档与媒体

在线文档

mediawebserver.dyn?6666660Zjcf6lVs6EVs666UclCOrrrrQ-
