点击放大查看

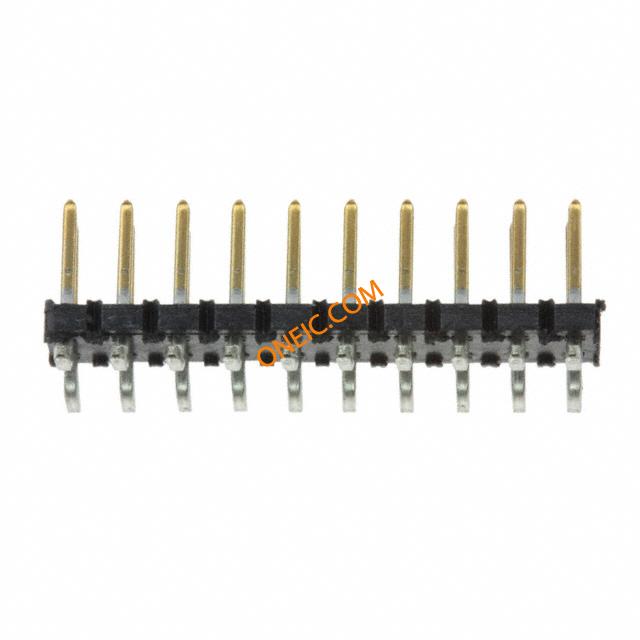

151220-2420-RB
| 制造商 | |
| 描述 | Conn Unshrouded Header HDR 20 POS 2mm Solder ST SMD Tray 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 20POS 2MM HEADER DL STR SMD 3M 1512 Series 2mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination, 1.5A Headers & Wire Housings 20 CONTACTS 0.152IN. 3M 1512 系列 2mm节距 20路 (2排) 直 引脚管座, 焊接端接, 1.5A , 表面安装 |
| 分类 |
商业参数
| 零件号别名 | 05111166025 80000903007 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | RoHS合规（认证） | Yes |
电气参数
| 最大额定电流 | 1.5A | ||
机械参数
| 颜色 | Black | 间距 | 2 mm |
| 包装方式 | Bulk | 方向 | 直 |
| 排间距 | 0.079" (2.00mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Surface Mount |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 端接排数 | 焊接 | 端接样式 | Through Hole |
| 触点数 | 20 | 位数 | 20 |
| 接触长度 - 配合 | 0.152" (3.86mm) | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | 1512 | 覆盖范围 | 无覆盖 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Headers |
| 加载位置数 | All | ||
