150220-2020-RB
| 制造商 | |
| 描述 | ヘッダ & ワイヤハウジング BRD MNT SKT 1502 SER 20 CONTACT NO POST CONN SOCKET 20POS 2MM SMD Headers & Wire Housings BRD MNT SKT 1502 SER 20 CONTACT NO POST Conn Socket Strip SKT 20 POS 2mm Solder ST SMD Tray |
| 分类 |
商业参数
| 零件号别名 | 05111174609 80000917460 | 标准包装数量 | 182 |
电气参数
| 最大额定电流 | 1 A | ||
机械参数
| 颜色 | Black | 深度 | 3.84 mm |
| 间距 | 0.079" (2.00mm) | 高度 | 4.65 mm |
| 包装方式 | Tray | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Surface Mount |
| 连接器类型 | Receptacle | 接触镀层 | Gold |
| 安装样式 | Surface Mount | 排数 | 2 |
| 触头材料 | Copper Alloy | 总长度 | 19.86 mm |
| 端接样式 | SMD | 触点数 | 2 |
| 位数 | 20 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Socket Strip | 连接器性别 | SKT |
| 系列 | 1502 | 产品特性 | Board Guide |
| 产品子类型 | Receptacles / Sockets - PCB | 加载位置数 | All |
环境参数
| 工作温度 | -55C to 105C | ||
文档与媒体
相关型号

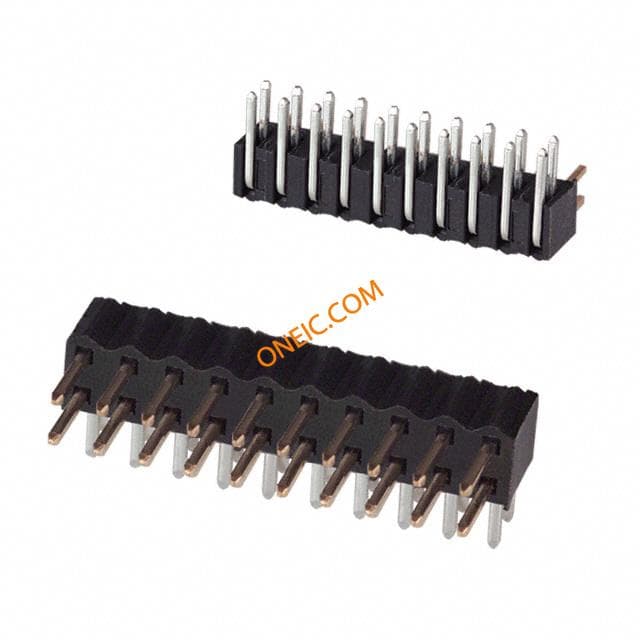

151220-7422-RB
3m interconnect solutions
Conn Unshrouded Header HDR 20 POS 2mm Solder RA Thru-Hole 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 20PS 2MM HEADER R/A DL GOLD Headers & Wire Housings 20P R/A SOLDER TAIL

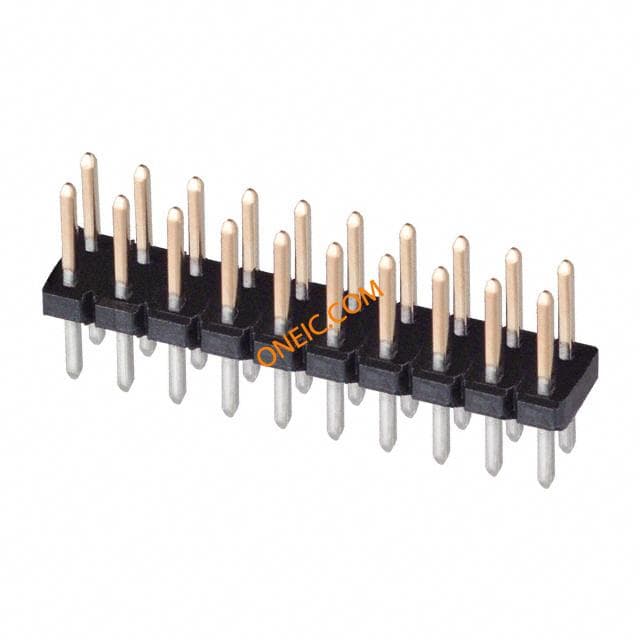

151220-8422-RB
3m interconnect solutions
Conn Unshrouded Header HDR 20 POS 2mm Solder ST Thru-Hole 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 20POS 2MM HEADER DUAL GOLD Headers & Wire Housings 20P STRT HDR .118 TAIL 30U AU BOARD-BOARD CONN, HEADER, 20WAY, 2ROW
151220-7422-TH
3m interconnect solutions
Conn Unshrouded Header HDR 20 POS 2mm Solder RA Thru-Hole CONN HEADER 2MM 20PS DL R/A 15AU
151220-2420-TH
3m interconnect solutions
Conn Unshrouded Header HDR 20 POS 2mm Solder ST SMD Tray CONN HEADER 2MM 20PS DL SMD 15AU
151220-2420-TB
3m interconnect solutions
Conn Unshrouded Header HDR 20 POS 2mm Solder ST SMD Tray CONN HEADER 2MM 20PS DL SMD 30AU Headers & Wire Housings 20P SMT BREAKAWAY
151220-2420-RB
3m interconnect solutions
Conn Unshrouded Header HDR 20 POS 2mm Solder ST SMD Tray 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 20POS 2MM HEADER DL STR SMD 3M 1512 Series 2mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination, 1.5A Headers & Wire Housings 20 CONTACTS 0.152IN. 3M 1512 系列 2mm节距 20路 (2排) 直 引脚管座, 焊接端接, 1.5A , 表面安装
151220-8422-TB
3M Electronic Solutions Division
Headers & Wire Housings 20P STRT SOLDER TAIL 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 20POS 2MM HEADER DUAL GOLD
151220-8322-TB
3M Electronic Solutions Division
Headers & Wire Housings 20P STRT SOLDER TAIL Conn Unshrouded Header HDR 20 POS 2mm Solder ST Thru-Hole 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN HEADER 2MM 20PS DL T/H 30AU Header;Pak20PinStrip;CopperAlloy;GlassFilledPolyester;20;1.5A
151220-7422-TB
3M Electronic Solutions Division
Headers & Wire Housings 20P R/A SOLDER TAIL 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 20POS2MM HEADER RT/DUAL GLD Header;Pak20PinStrip;CopperAlloy;GlassFilledPolyester;20;1.5A
151220-8322-RB
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング 20P STRT SOLDER TAIL 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 20POS 2MM HEADER DUAL VERT Headers & Wire Housings 20P STRT SOLDER TAIL
151220-8422-TH
3M Electronic Solutions Division
Headers & Wire Housings 20 CON 0.152IN CONN HEADER 2MM 20PS DL T/H 15AU

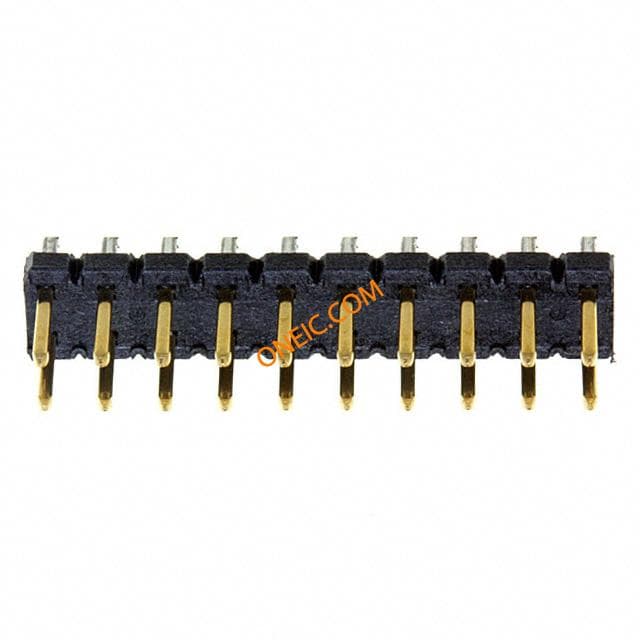

151220-8321-RB
