点击放大查看

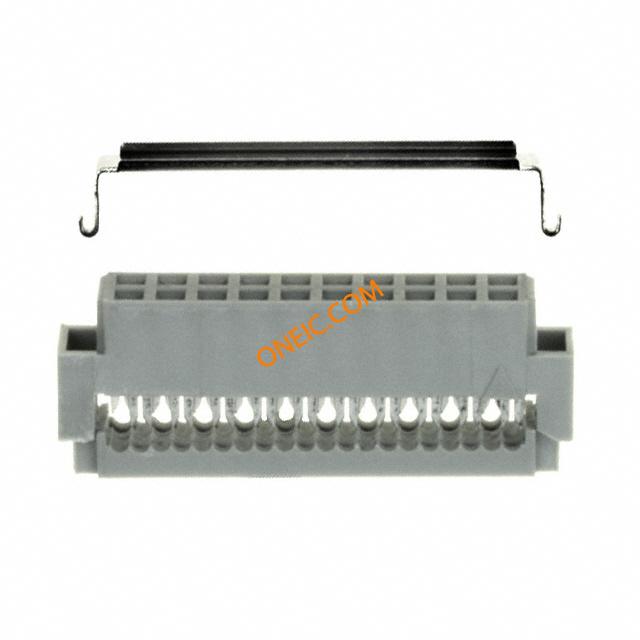

152220-0103-GB
| 制造商 | |
| 描述 | Conn IDC Connector SKT 20 POS 2mm IDT RA Cable Mount Headers & Wire Housings 20P LO PRO SOCKET CONN 20POS 2MM IDC SOCKET 30AU |
| 分类 |
商业参数
| 零件号别名 | 05113843426 80610811343 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 125 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Gray | 间距 | 2 mm |
| 包装方式 | Bulk | 导线类型 | Ribbon Cable |
| 导线线规 | 28 AWG | 排间距 | 0.079" (2.00mm) |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 排数 | 2 | 电缆端接方式 | IDC |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 触点数 | 20 | 位数 | 20 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | SKT |
| 系列 | 1522 | 产品特性 | Feed Through, Strain Relief |
| 产品子类型 | Receptacles / Sockets - Housings | ||
