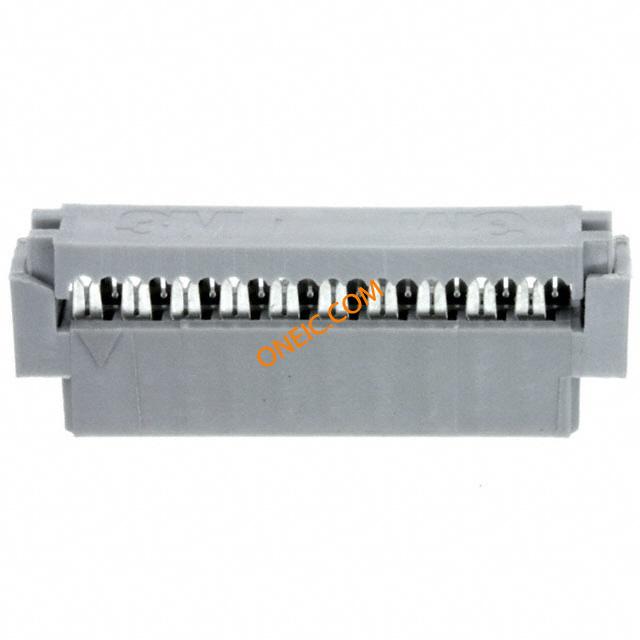

152220-0100-GB

制造商	3M Company
描述	Conn IDC Connector SKT 20 POS 2mm IDT RA Cable Mount Headers & Wire Housings 20P LO PRO SOCKET CONN 20POS 2MM IDC SOCKET 30AU Socket;Pak20Wiremount;1mmpitchcable;CopperAlloy;1A;1000V(RMS)
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	05113843423 80610811319	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	125

合规参数

RoHS	Lead free / RoHS Compliant	标准	ULListed,ULRecognized,cULRecognized,RoHSCompliant
认证机构	cUL,UL	材料阻燃等级	UL94V-0

电气参数

额定电压值	1000V(RMS)	最大额定电流	1A
绝缘电阻	>1x10^9Ohms

机械参数

颜色	Gray	间距	2 mm
镀层	Gold	包装方式	Bulk
导线类型	Ribbon Cable	出线方向	LowProfile
导线线规	28 AWG	排间距	0.079" (2.00mm)
端接方式	IDT	触头类型	Female Socket
插座深度（或方向）	Pak20Wiremount	安装类型	Free Hanging (In-Line)
行程角度	Straight	连接器类型	Receptacle
接触镀层	Gold Over Nickel	安装样式	Cable
排数	2	触头材料	CopperAlloy
壳体材料	GlassFilledPolyester	总长度	0.99"
主要材料	InterconnectSystem	尺寸/外形	0.99in.Lx0.16in.Wx0.29in.H
导线端接方式	28AWGStranded	电缆端接方式	IDC
插针孔直径	0.079"	端接样式	IDC
第一触头极性	Socket (Female)	触点数	20
位数	20	绝缘材料 - 材质	GlassFilledPolyester(PBT)
接触镀层厚度	30µin (0.76µm)

产品信息

类型	IDC Connector	连接器性别	SKT
系列	1522	产品特性	Feed Through
制造商全称	1522Series	产品子类型	Receptacles / Sockets - Housings
适用产品/相关产品	1mmpitchcable

环境参数

工作温度

-67to+221°F

结工作温度

+105°C

文档与媒体

PDF 文档

80018.pdf

在线文档

mediawebserver.dyn?6666660Zjcf6lVs6EVs666UclCOrrrrQ-

相关型号

暂无图片

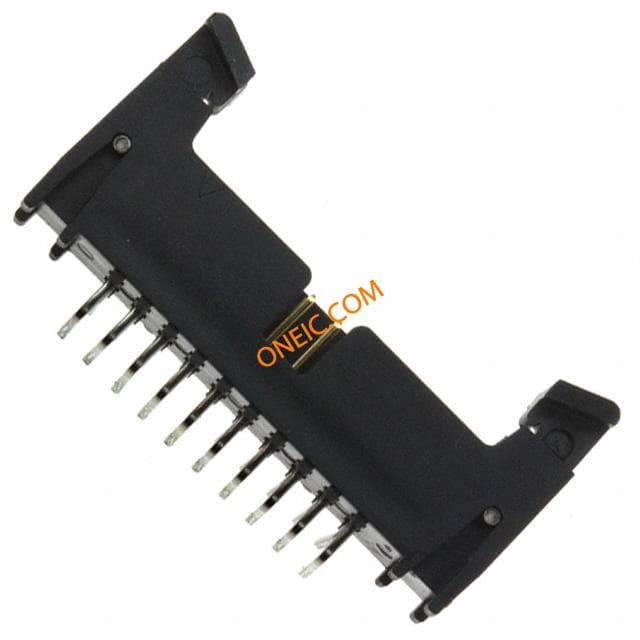

155220-6403-RB
