点击放大查看
10140-3000PE
| 制造商 | |
| 描述 | Conn SCSI PL 40 POS 2.54mm Solder Cup ST Cable Mount 40 Terminal 1 Port D-Sub Micro-D Connectors 40P PLUG SOLDER Wiremount Plug, Solder, Shielded CONN MDR PLUG 40POS SLD CUP 40 way shielded I/O solder plug,1A Solder Plug Connector --Shielded 40 positions PLUG, MDR, SOLDER, 40WAY Conn;D-Sub;Mini-D-Ribbon;CablePlug;40Pos;STR;101Series;Solder;30-24AWG;).050In. 3M 101 系列 电缆安装 40 路 焊接 D-sub 连接器 , 1A |
| 分类 |
商业参数
| 零件号别名 | 54745242012 JE150334751 | 产品类别 | D-Sub Micro-D Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 标准 | UL94V-0 |
| 海关税号 | 85369010 | ||
电气参数
| 最大额定电流 | 1 A | ||
机械参数
| 间距 | 2.54 mm | 重量 | 0.04 |
| 材料（通用） | :Steel | 包装方式 | Bulk |
| 导线线规 | 30-24 | 端接方式 | Solder Cup |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Plug | 接触镀层 | Gold |
| 安装样式 | Through Hole | 排数 | 2 |
| 连接器样式 | Center Strip Contacts | 插入件材料 | Polyester |
| 触头材料 | Copper Alloy | 主要材料 | Mini-D-Ribbon |
| 端接样式 | Solder | 触点数 | 40 |
| 接触件端接 | :Solder | 位数 | 40 |
| 接触镀层厚度 | 20µin (0.51µm) | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | SCSI | 连接器性别 | PL |
| 系列 | 101 | 产品特性 | Shielded |
| 制造商全称 | 101 | ||
环境参数
| 工作温度 | :105°C | ||
文档与媒体
相关型号
N10240-5212PC
3M Electronic Solutions Division
D-Sub Micro-D Connectors 40P R/A SHLD RECEPT BOARDMNT M2.5 THREAD Boardmount Receptacle, Through-hole, Right Angle, Shielded, Diecast Body CONN MINI-D 40POS R/A RECPT

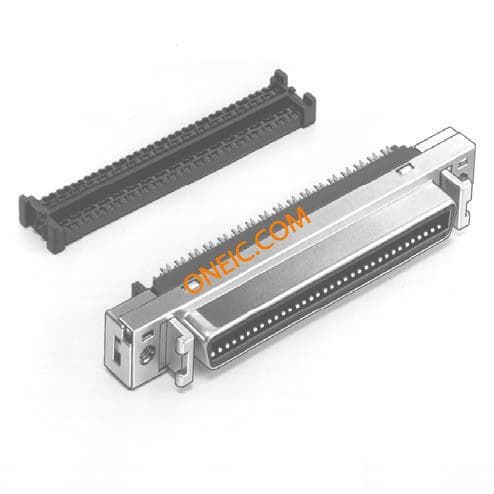

10240-0210EC
3M Electronic Solutions Division
D-Sub Micro-D Connectors 40P RECEPT SHIELDED IDC WIREMNT PANELMNT Wiremount/Panelmount Receptacle, IDC, Shielded CONN MDR RECPT 40POS IDC GOLD
10340-55F0-008
3M Electronic Solutions Division
D-Sub Backshells 40P SHELL SLDER PLUG JUNCTION SHELL 40POS BACKSHELL, MDR, 40WAY, R/A
N10240-52B2PC
3M Electronic Solutions Division
D-Sub Micro-D Connectors 40P R/A SHLD RECEPT BOARDMNT M2.5 THREAD Boardmount Receptacle, Through-hole, Right Angle, Shielded, Diecast Body CONN MINI-D 40POS R/A RECPT Socket MDR 102 Series R/A 40 way Conn SCSI RCP 40 POS 2.54mm Solder RA Thru-Hole 40 Terminal 1 Port SOCKET, MDR, THT, RA, 40WAY SocketMDR102SeriesR/A40way 3M MDR 102 系列 1.27mm 节距 40 路 直角 通孔安装 Micro-D 印刷电路板连接器 插座
3829
3M Electronic Solutions Division
Crimpers HAND PRESS TOOL HAND FOR MINI-D PLUG MiniDRibbon(MDR)IDCHandtoolKit(forterminatingcabletoMDRIDCplugs)
10240-6212PC
3m interconnect solutions
Conn SCSI RCP 40 POS 2.54mm Solder ST Thru-Hole 40 Terminal 1 Port D-Sub Micro-D Connectors 40P VERT SHLD RECEPT BOARDMNT M2.5 THREAD Boardmount Receptacle, Through-hole, Vertical, Shielded CONN MDR RECPT 40POS VERT T/H Receptacle MDR PCB straight 40 pin .050MiniDRibbonConnector(40pos)ReceptacleVerticalBoardmountShielded 3M MDR 102 系列 1.27mm 节距 40 路 直向 通孔安装 Micro-D 印刷电路板连接器 插座
10240-1210PE
3m interconnect solutions
Conn SCSI RCP 40 POS 0.64mm Solder RA SMD 40 Terminal 1 Port D-Sub Micro-D Connectors 40P R/A SHLD RECEPT SURFACE MOUNT Boardmount Receptacle, Surface Mount, Right Angle, Shielded CONN MDR RECEPT 40POS R/A SMD 3M 102 Series 0.5in 40 Way 2 Row Right Angle PCB Socket Surface Mount RECEPTACLE, MDR, R/A, 40WAY RECEPTACLE,SHIELDED,SURFACEMOUNT,RIGHTANGLE,40CONTACTS 3M 102 系列 2行 40路 直角 12.7mm节距 表面贴装 印刷电路板插座
10140-3000PE
3m interconnect solutions
Conn SCSI PL 40 POS 2.54mm Solder Cup ST Cable Mount 40 Terminal 1 Port D-Sub Micro-D Connectors 40P PLUG SOLDER Wiremount Plug, Solder, Shielded CONN MDR PLUG 40POS SLD CUP 40 way shielded I/O solder plug,1A Solder Plug Connector --Shielded 40 positions PLUG, MDR, SOLDER, 40WAY Conn;D-Sub;Mini-D-Ribbon;CablePlug;40Pos;STR;101Series;Solder;30-24AWG;).050In. 3M 101 系列 电缆安装 40 路 焊接 D-sub 连接器 , 1A

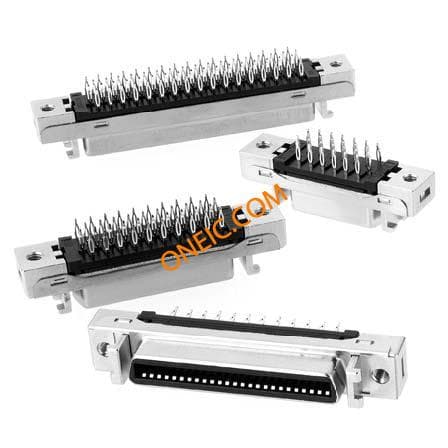

10240-R21TS
3m interconnect solutions
Conn SCSI RCP 40 POS 2.54mm Press Fit ST Thru-Hole 40 Terminal 1 Port D-Sub Micro-D Connectors 40P VERT SHLD RECEP BRDMNT COMPLIANT PIN Boardmount Receptacle, Compliant Pin, Vertical, Shielded CONN MDR RCPT 40POS VERT T/H

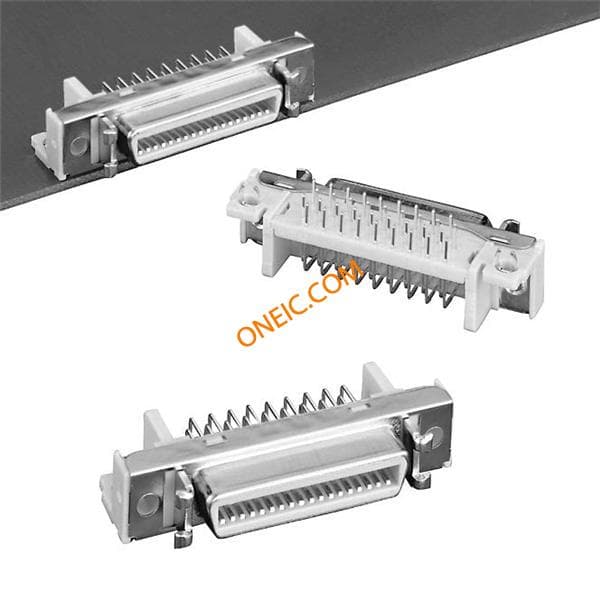

10240-55G3PC
