点击放大查看

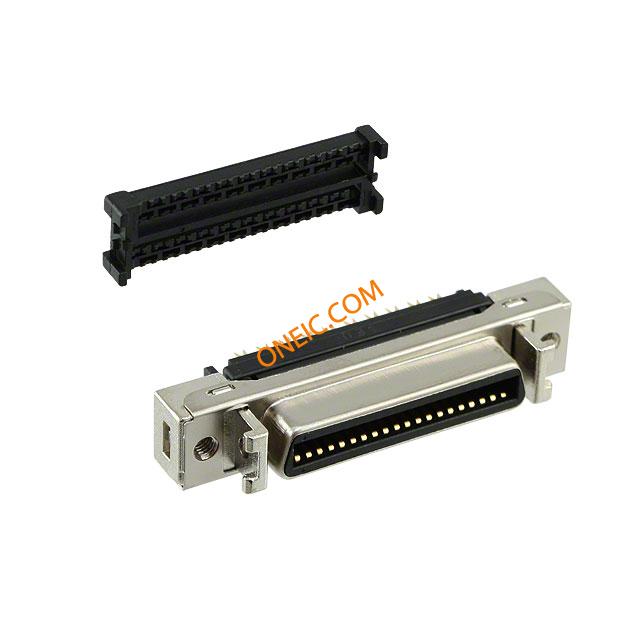

10240-0210EC
| 制造商 | |
| 描述 | D-Sub Micro-D Connectors 40P RECEPT SHIELDED IDC WIREMNT PANELMNT Wiremount/Panelmount Receptacle, IDC, Shielded CONN MDR RECPT 40POS IDC GOLD |
| 分类 |
商业参数
| 零件号别名 | 90169009059 JE150182416 | 产品类别 | D-Sub Micro-D Connectors |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 1 A | ||
机械参数
| 重量 | 1 lb | 端接方式 | IDC |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 法兰特征 | Insert, Threaded (M2.5); Latchblocks |
| 安装样式 | Panel | 排数 | 2 |
| 连接器样式 | Outer Shroud Contacts | 端接样式 | IDC |
| 触点数 | 40 | 位数 | 40 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 连接器性别 | Male | 系列 | 102 |
| 产品特性 | Shielded | ||
