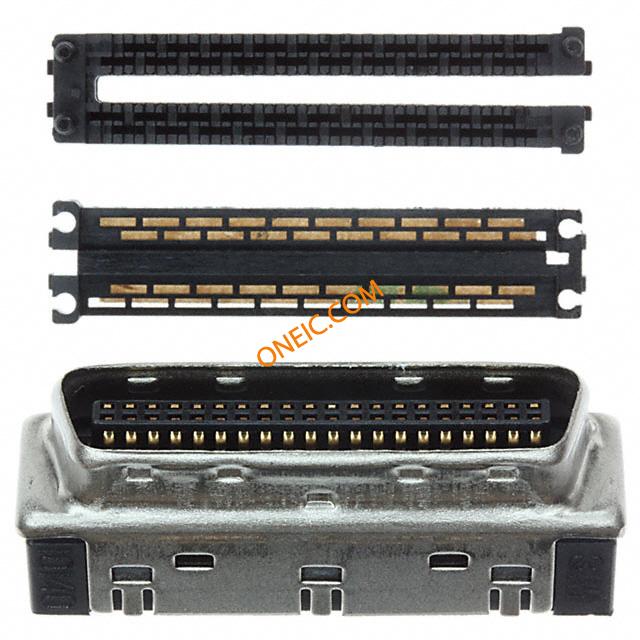

10140-6000EC
| 制造商 | |
| 描述 | D-Sub Micro-D Connectors 40P PLUG SHIELDED IDC WIREMOUNT Wiremount Plug, IDC, Shielded CONN MDR PLUG 40POS IDC GOLD Plug MDR IDC shielded 40 pin MINI D RIBBON CONN, PLUG, 40POS, IDC/IDT 3M 101 系列 1.27mm 节距 40 路 IDC Mini-D 带状电缆连接器, 插头, 钢外壳 |
| 分类 |
商业参数
| 零件号别名 | 90169008642 JE150174884 | 产品类别 | D-Sub Micro-D Connectors |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| RoHS合规（认证） | Yes | ||
电气参数
| 额定电压 | 500 V | 最大额定电流 | 1 A |
机械参数
| 深度 | 9.1mm | 间距 | 1.27mm |
| 宽度 | 12.7mm | 长度 | 34.7mm |
| 重量 | 1 lb | 包装方式 | Tray |
| 绝缘类型 | Insulated | 导线线规 | 28 AWG |
| 端接方式 | IDC | 安装类型 | Straight |
| 外壳镀层 | Nickel | 连接器类型 | Plug |
| 接触镀层 | Gold | 安装样式 | Wire |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | Center Strip Contacts | 触头材料 | Beryllium Copper |
| 尺寸/外形 | 34.7 x 12.7 x 9.1mm | 端接样式 | IDC |
| 触点数 | 40 | 接触件端接 | :IDC / IDT |
| 绝缘材料 - 类型 | Glass Reinforced Polyester | 位数 | 40 |
| 接触镀层厚度 | 30µin (0.76µm) | 第一连接器安装类型 | :Cable |
产品信息
| 连接器性别 | Male | 系列 | 101 |
| 产品特性 | Shielded | ||
环境参数
| 工作温度 | +85°C | ||
