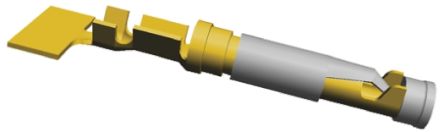

图片仅供参考,产品以实物为准
#1 |
数量:9020 |
|
最小起订量:1 美国费城 当天发货，5-8个工作日送达. |
|
|||||||||||||
#2 |
数量:9020 |
|
最小起订量:1 美国费城 当天发货，5-8个工作日送达. |
|
|||||||||||||
#3 |
数量:280 |
|
最小起订量:5 英国伦敦 当天发货，5-8个工作日送达. |
|
| 规格书 |
 66109 SOCKET ASSEMBLY, LOOSE PIECE, TYPE III+ 3D PDF Signal Contacts AMP Circular Connectors for Commercial Signal & Power Applications M_SERIES_PIN_AND_SOCKET_CONNECTORS Type III+ (Size 16) Contacts MD_66109-3_12232013346_dmtec Selection of Multimate Pin and Socket Contacts Selection of Multimate Pin and Socket Contacts |
| 文档 |
66109-3 Statement of Compliance RoHS 2 Statement 66109-3.pdf |
| 三维模型 | View |
| Contact Termination | Crimp |
| 材料 | Brass |
| Pin or Socket | Socket |
| Plating - Thickness | 15µin (0.38µm) |
| Plating | Gold |
| Type | Stamped |
| Wire Gauge | 24-26 AWG |
| 连接器类型 | Connector Power |
| 触点类型 | Power |
| 触点材料 | Brass |
| 触点电镀 | Gold Over Nickel |
| 性别 | SKT |
| 端接方式 | Crimp |
| 标准包装 | Bulk |
| 电镀 | Gold |
| 线规 | 24-26 AWG |
| 材质 | Brass |
| 封装 | Bulk |
| 电镀 - 厚度 | 15µin (0.38µm) |
| 针脚或插座 | Socket |
| 类型 | Stamped |
| 接触端子 | Crimp |
| RoHS指令 | Lead free / RoHS Compliant |
| 触点尺寸 | 16 |
| 额定电流 | 13A |
| 适用于 | CPC Connector, G Series Connector, M Series Connector |
| 长度 | 13.46mm |
| 系列 | Type III+ |
| 线径规格 | 26 → 24 AWG |
| 工厂包装数量 | 1000 |
| 产品种类 | Standard Circular Contacts |
| 联系人性别 | Socket (Female) |
| 商品名 | Multimate |
| RoHS | RoHS Compliant |
| Wire Size AWG Min | :26AWG |
| Weight (kg) | 0.002 |
| Tariff No. | 85369010 |
| Brand/Series | AMP |
| ConnectorType | Socket |
| ContactMatingAreaPlating | Gold(15)overNickel(50) |
| ContactSize | 16 |
| ContactType | Signal |
| Current,Test | 13A |
| Diameter,Insulation | 0.035to0.055in. |
| Diameter,Pin | 0.062in. |
| ForUseWith | GSeriesConnectors,MSeriesConnectorsandCPCConnectors |
| 等级 | Commercial |
| Material,Contact | Brass |
| Material,Spring | StainlessSteel |
| 标准 | RoHSCompliant |
| 端子 | Crimp |
| WireRange | 26to24AWG |
| WireType | Discrete |
| associated | 91515-1 58495-1 91002-1 58495-2 305183 305183. More> |
| usewith | 202760-2 213893-2 213766-1 206837-2 213931-2 213803-2 More> |
