点击放大查看
1674300000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | Conn Feed-Through Modular Terminal Blocks 4 POS 20A TERM FEED-THRU DUAL LVL WM BEIGE Non-Fuse DIN Rail Terminal, 20A, 500V, Beige ,Clamp Termination TERMINAL BLOCK, DIN RAIL, 4POS, 26-14AWG |
| 分类 |
商业参数
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 15A | UL电压 | 300V |
| 电流 - IEC | 20A | IEC电压 | 500V |
| 额定电压 | 500 V | 最大额定电流 | 20A |
机械参数
| 颜色 | Beige | 重量 | 0.009 |
| 导线线规 | 12-30 AWG | 端接方式 | Clamp |
| 外壳颜色 | Dark Beige | 连接器类型 | :DIN Terminal Block |
| 接触镀层 | :- | 排数 | 2 |
| 触头材料 | :- | 剥线长度（范围） | 10mm |
| 端子宽度 | 5.1mm | 端接样式 | Push In, Spring |
| 连接器颜色 | Beige | 触点数 | 4 |
| 位数 | 4 | 绝缘材料 - 材质 | Thermoplastic, Wemid |
| 线规或范围 - AWG | 12-30 AWG | 线规或范围 - mm² | 0.5-2.5mm² |
| 第一连接器安装类型 | :DIN Rail | ||
产品信息
| 类型 | Feed-Through Modular Terminal Blocks | 系列 | ZDK |
| 层数 | 2 | ||
文档与媒体
相关型号
1579330000
weidmuller
Connector Accessories Connector Marker Polyamide 66 White TERMINAL MARKER WT 5 F.S10
1764550000
weidmuller
Connector Accessories Component Plug Wemid Dark Beige TERMINAL TENSION CLMP ZBS 1 F
1778270000
weidmuller
WS 12/3.5 MC BLANK -BX = 600 EA TERMINAL MARKER WS 12/3.5 MC
1058960000
weidmuller
Connector Accessories Connector Marker Polyamide 66 White TERMINAL MARKER WT6
1636530000
weidmuller
Connector Accessories Marking Tag Polyamide 66 White ZGB 15

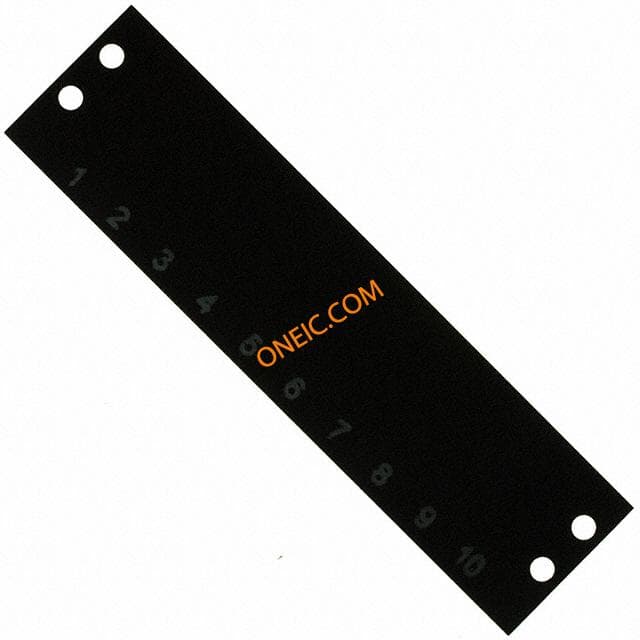

MS-10-141
