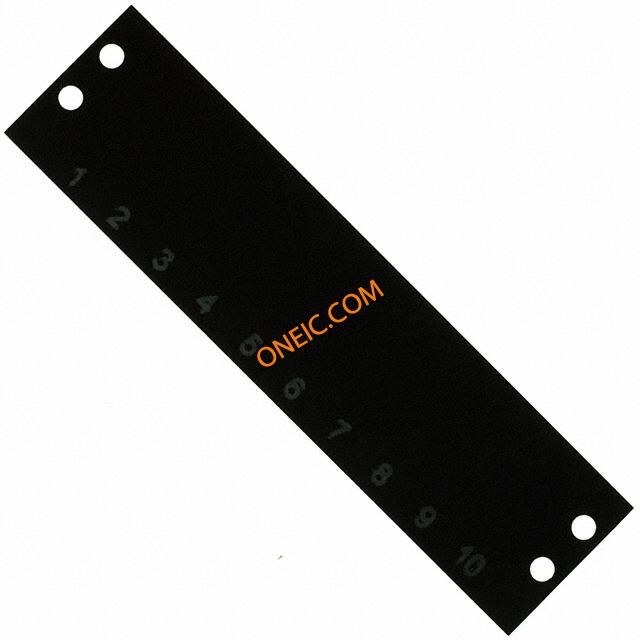

MS-10-141
| 制造商 | Cinch Connectors |
| 描述 | Terminal Block Tools & Accessories MARKING STRIP 10 TRM BARRIER BLK MARKER STRIP 10POS connector accessory;marker strip for 10 terminal barrier term block;series 141 Connector Accessories Marker Strip For 10 POS Barrier Blocks Nema Grade XPC MarkerStrip;TermStrip;10;BarrierConn;TermBlock;Series141 |
| 分类 |
商业参数
| 产品 | Tools & Accessories | 产品类别 | Terminal Block Tools & Accessories |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | Compliant | 标准 | ULRecognized,CSACertified |
机械参数
| 颜色 | Black | 间距 | 0.438" (11.12mm) |
| 材料（通用） | EnemaGradeXPC | 螺钉尺寸 | 6-32 |
| 方向 | HorizontalPrint | 排数 | Double |
| 螺丝材料 | Steel | 主要材料 | MarkerStrip |
| 连接器颜色 | White | 绝缘材料 - 材质 | MoldedMonoblock,GeneralPurposePhenolic |
产品信息
| 类型 | Label, Screw In | 图例 | Blank |
| 制造商全称 | Series141 | 图例（文字） | Nos.1-10 |
| 适用产品/相关产品 | 141 Series | ||
环境参数
| 工作温度 | -55to+300°F | ||
文档与媒体
相关型号
14-141
Cinch
Barrier Terminal Blocks 14 TERMINALS .438 141 Series CONN BARRIER BLOCK .438" 14 CIRC connector;barrier terminal block;double row;14 terminals;rated 20 amp;250 volts Conn Barrier Strip 28 POS 11.13mm Screw ST Panel Mount 20A TERMINAL BLOCK, BARRIER, 14POS, 14AWG Conn;TermStrip;Barrier;14;0.438in.;DblRow;10AWG(Max);Series141;20A;250V

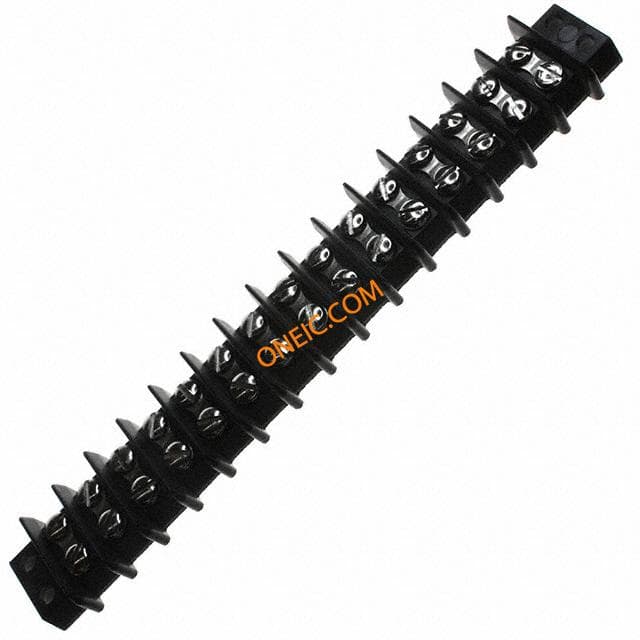

15-141
