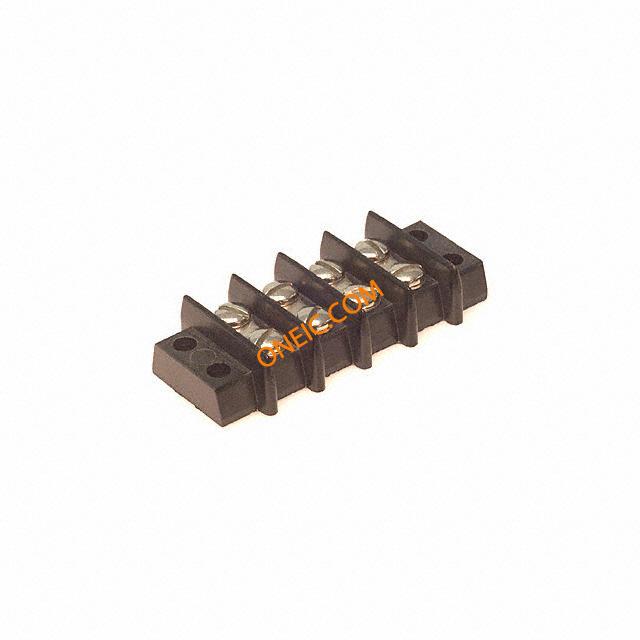

4-141
| 制造商 | Cinch Connectors |
| 描述 | Barrier Terminal Blocks 4 TERMINALS .438 BARRIER BLOCK 4CIRC .438" connector;barrier terminal block;double row;4 terminals;rated 20 amp;250 volts Conn Barrier Strip 8 POS 11.13mm Screw ST Panel Mount 20A TERMINAL BLOCK Conn;TermStrip;Barrier;4;.438Density;DblRow;14AWG;20A;250V |
| 分类 |
商业参数
| 产品 | Barrier Terminal Blocks | 产品类别 | Barrier Terminal Blocks |
| 标准包装数量 | 500 | 工厂包装数量 | 500 |
合规参数
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | 材料阻燃等级 | UL94 V-1 |
电气参数
| 额定电压 | 250V | 最大额定电流 | 20A |
机械参数
| 颜色 | Black | 间距 | 0.438" (11.12mm) |
| 宽度 | 1.125 in | 高度 | 0.5 in |
| 长度 | 2.5 in | 重量 | 3.62 |
| 包装方式 | Bulk | 导线线规 | 14 AWG |
| 安装类型 | Chassis, Panel | 连接器类型 | :Terminal Block, Barrier |
| 接触镀层 | Nickel | 安装样式 | Panel |
| 排数 | 2 | 顶部端接 | Screws |
| 触头材料 | Brass | 壳体材料 | Phenolic |
| 刀片材料 | Steel | 端接样式 | Screw |
| 底部端接 | Closed | 触点数 | 4 |
| 位数 | :4 | 接线端子类型 | Barrier Block |
| 绝缘材料 - 材质 | Phenol Formaldehyde (Phenolic) | 进线口数 | 8 |
| 线规或范围 - AWG | 14 | 线规或范围 - mm² | 14 |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 类型 | Wire-to-Board | 系列 | :141 |
| 产品特性 | Flange | 隔离类型 | 2 Wall (Dual) |
| 电路数 | 4 | ||
环境参数
| 工作温度 | -55°F ~ 300°F | ||
文档与媒体
相关型号

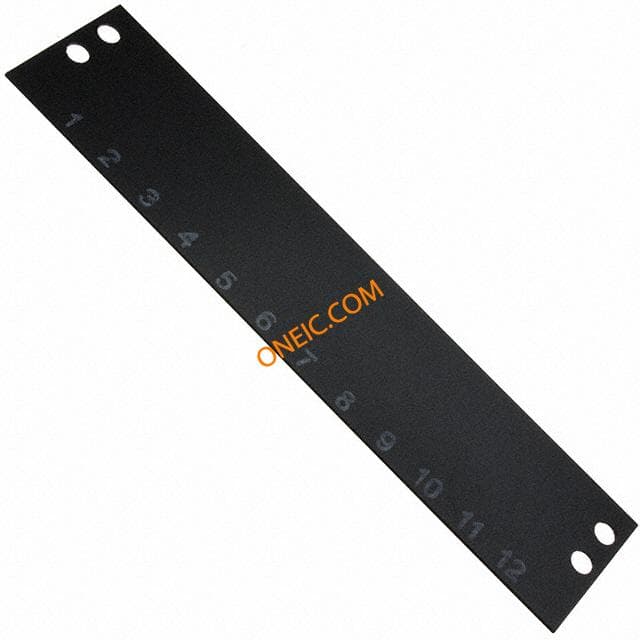

MS-12-140
