1527410000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | Conn Terminal Block SKT 12 POS 5.08mm Screw RA Cable Mount 15A Box TERM BLOCK PLUG 12POS STR 5.08MM PLUG, FEMALE, 5.08MM, STRT, 12WAY |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366990 | ||
电气参数
| 电流 | 15A | 电压 | 300V |
机械参数
| 颜色 | Black | 间距 | 5.08 mm |
| 重量 | 0.0199 | 包装方式 | Bulk |
| 导线线规 | 12-22 AWG | 端接方式 | Screw |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 连接器类型 | :Terminal Block, Pluggable | 接触镀层 | :Tin |
| 排数 | 1 | 插头进线方向 | 180° |
| 触头材料 | :Copper, Tin | 触点数 | 12 |
| 位数 | 12 | 接线端子类型 | Plug, Female Sockets |
| 线规或范围 - AWG | :26AWG | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | Terminal Block | 连接器性别 | SKT |
| 系列 | :BLZ 5.08/180 | 产品特性 | Retention Latches (Non-Wire Side) |
| 层数 | 1 | 每层位数 | 12 |
文档与媒体
相关型号
1511360000
weidmuller
Conn Shrouded Header M 12 POS 5.08mm Solder RA Thru-Hole Box SL 5.08/12/90B 3.2SN OR HEADER, SIDE ENTRY, 12WAY
1520560000
weidmuller
Conn Shrouded Header M 12 POS 5.08mm Solder ST Thru-Hole Box SL 5.08/12/180B 3.2SN OR HEADER, 5.08MM, TOP, 12WAY
1599230000
weidmuller
Conn Shrouded Header HDR 12 POS 5.08mm Solder Lug ST Panel Mount Box CONN THRU-PNL W/LTCH 12POS FL OG
1627340000
weidmuller
Conn Terminal Block PIN 12 POS 5.08mm Screw RA Cable Mount 15A Box TERM BLOCK PLUG 12POS STR 5.08MM
1706240000
weidmuller
Conn Terminal Block PIN 12 POS 5.08mm Crimp RA Cable Mount 10A Box TERM BLOCK PLUG 12POS 5.08MM
1775332001
weidmuller
Conn Shrouded Header HDR 12 POS 5.08mm Solder RA Thru-Hole Box TERM BLOCK HDR 12POS R/A 5.08MM
1775702001
weidmuller
Conn Shrouded Header HDR 12 POS 5.08mm Solder ST Thru-Hole Box TERM BLOCK HDR 12POS VERT 5.08MM
1780280000
weidmuller
Conn Shrouded Header M 12 POS 5.08mm Solder RA Thru-Hole Box SL-SMT5.08/12/90G 3.2SN BK HEADER, SIDE ENTRY, THT, R/A, 12WAY
1838080000
weidmuller
Conn Shrouded Header M 12 POS 5.08mm Solder ST Thru-Hole Box SL-SMT5.08/12/180 3.2SN BK BX HEADER, 5.08MM, TOP, SMT, 12WAY
1710310000
weidmuller
Conn Terminal Block PIN 12 POS 5.08mm Crimp ST Cable Mount 10A Box TERM BLOCK PLUG 12POS STR 5.08MM
1673650000
weidmuller
Conn Terminal Block PIN 12 POS 5.08mm Crimp RA Cable Mount 10A Box TERM BLOCK PLUG 12POS 5.08MM
1518260000
weidmuller
Conn Shrouded Header M 12 POS 5.08mm Solder ST Thru-Hole Box SL 5.08/12/180 3.2SN OR HEADER, 5.08MM, TOP, 12WAY
1774862001
weidmuller
Conn Shrouded Header M 12 POS 5.08mm Solder RA Thru-Hole Box TERM BLOCK HDR 12POS R/A 5.08MM
1776022001
weidmuller
Conn Shrouded Header HDR 12 POS 5.08mm Solder ST Thru-Hole Box TERM BLOCK HDR 12POS VERT 5.08MM
1838310000
weidmuller
Conn Shrouded Header M 12 POS 5.08mm Solder ST Thru-Hole Box SL-SMT 5.08/12/180G 3.2SN BK HEADER, 5.08MM, TOP, SMT, 12WAY
1776462001
weidmuller
Conn Shrouded Header HDR 12 POS 5.08mm Solder ST Thru-Hole Box TERM BLOCK HDR 12POS VERT 5.08MM
1611810000
weidmuller
Conn Terminal Block PIN 12 POS 5.08mm Screw ST Cable Mount 10A Box TERM BLOCK PLUG 12POS STR 5.08MM
1775102001
weidmuller
Conn Shrouded Header M 12 POS 5.08mm Solder RA Thru-Hole Box TERM BLOCK HDR 12POS R/A 5.08MM
1780050000
weidmuller
Conn Shrouded Header M 12 POS 5.08mm Solder RA Thru-Hole Box SL-SMT 5.08/12/90 3.2SN BK HEADER, 5.08MM, SIDE, SMT, 12WAY

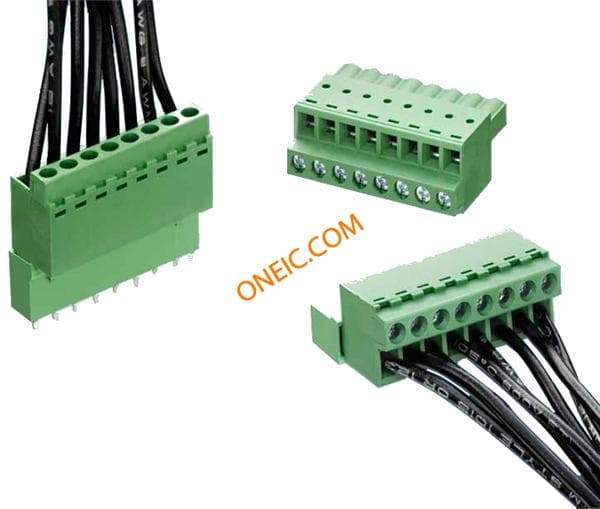

1-1986484-2
