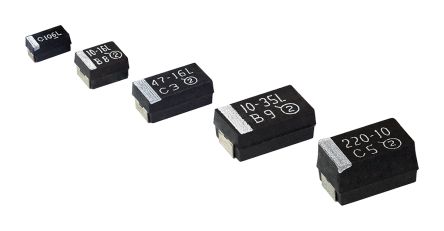

点击放大查看
593D107X0010D2TE3
| 制造商 | Vishay Intertechnology, Inc. |
| 描述 | Cap Tant Solid 100uF 10V D CASE 20% (7.3 X 4.3 X 2.8mm) SMD 7343-31 0.1 Ohm 125°C T/R Tantalum Capacitors - Solid SMD 100uF 10volts 20% D case Molded CAP TANT 100UF 10V 20% 2917 Cap Tant Solid 100uF 10V D CASE 20% (7.3 X 4.3 X 2.8mm) SMD 7343-31 0.1 Ohm 125C T/R CAP, TANT, 100UF, 10V, CASE D Capacitor;Tantalum;100uF;Tol20%;SMT;Vol-Rtg10V;Size7343-31 Vishay 593D 系列 100μF ±20% SMD 钽电容器, 10 V 直流, 7343-31 封装, 125mΩ ESR, +125 (With Derating)°C |
| 分类 |
商业参数
| 最小起订量 | 10000 | 产品 | Tantalum Solid Low ESR Commercial Grade |
| 商标名 | TANTAMOUNT | 单位包装 | 500 |
| 零件号别名 | 593D107X0010D2WE3 | 产品类别 | Tantalum Capacitors - Solid SMD |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85322100 | 抗辐射加固 | No |
电气参数
| 电压 | 10 Vdc | 容差 | 20 % |
| 电容 | 100 uF | 量程（°/s） | :VISHAY SPRAGUE - 593D Series |
| 额定电压 | 10 V | 漏电流 | 10 uA |
| 直流冷态电阻 | 10 uA | 输入电容值 | :2917 [7343 Metric] |
| 介电常数 | 6% | 损耗角正切（DF） | 6 |
| 高频纹波电流 | 0.74 A | ESR（等效串联电阻） | 0.1 Ohm |
机械参数
| 密封 | Not Required | 深度 | 4.3 mm |
| 宽度 | 4.3 mm | 高度 | 2.8 mm |
| 重量 | 0.002 | 直径 | Not Required mm |
| 包装方式 | Reel | 绝缘类型 | Not Required |
| 端接方式 | SMT | 结构 | Flat |
| 高度（最大） | Not Required mm | 引脚间距 | Not Required mm |
| 安装类型 | Surface Mount | 安装样式 | Surface Mount |
| 封装形式 | 7343-31,D | 实际长度 | Not Required mm |
| 总长度 | 7.3 mm | 刀片材料 | Tantalum |
| 尺寸/外形 | 4.3 mm W x 7.3 mm L | 端接样式 | SMD/SMT |
| 外壳尺寸-插件 | 2916(7343mm) | 安装孔直径 | 2917 |
| 线规或范围 - AWG | Not Required | ||
产品信息
| 系列 | 593D | 极性 | Polar |
| 失效率 | Not Required | 制造商全称 | D Case |
| 制造商尺寸代码 | :D | ||
环境参数
| 工作温度 | 125 °C | 温升功耗 | 6 |
