RH050R1000FE02
| 制造商 | |
| 描述 | Res Wirewound 0.1 Ohm 1% 50W ±100ppm/°C Aluminum Housed AXL Flange Mount Card Pack Resistor;0.1 Ohms Resistance;Wirewound Resistor Type;+/-1% Tolerance;50W Wirewound Resistors 50watt .1ohm 1% RESISTOR, 50W, 0R1 Resistor;Wirewound;Res0.1Ohms;Pwr-Rtg50W;Tol1%;Lug;AlumHoused;Military Vishay RH 系列 50W 100mΩ 轴向 高功率线绕电阻器 , ±1%, ±100ppm/°C |
| 分类 |
商业参数
| 产品 | Power Resistors Wirewound Aluminum Housed | 产品类别 | Wirewound Resistors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Compliant | 海关税号 | 85322300 |
电气参数
| 容差 | 1 % | 电阻 | 100 mOhm |
| 量程（°/s） | :VISHAY - RH Series | 额定功率 | 50 W |
| 电阻公差 | :± 1% | ||
机械参数
| 宽度 | 28.96 mm | 高度 | 15.49 mm |
| 重量 | 0.1 | 直径 | 16 mm |
| 底座类型 | :- | 包装方式 | Bulk |
| 端接方式 | Lug | 引脚数 | :2 |
| 封装形式 | 49.99 mm | 总长度 | 70.64 mm |
| 刀片材料 | Wirewound | 端接样式 | Solder Lug |
| 电阻材料 | :Ceramic | ||
产品信息
| 类型 | Wirewound | 系列 | RH |
| 产品特性 | Military | ||
环境参数
| 工作温度 | -55 to 250 °C | 温度系数 | 100 PPM / C |
文档与媒体
相关型号
RH050R1000FE02
vishay / dale
Res Wirewound 0.1 Ohm 1% 50W ±100ppm/°C Aluminum Housed AXL Flange Mount Card Pack Resistor;0.1 Ohms Resistance;Wirewound Resistor Type;+/-1% Tolerance;50W Wirewound Resistors 50watt .1ohm 1% RESISTOR, 50W, 0R1 Resistor;Wirewound;Res0.1Ohms;Pwr-Rtg50W;Tol1%;Lug;AlumHoused;Military Vishay RH 系列 50W 100mΩ 轴向 高功率线绕电阻器 , ±1%, ±100ppm/°C

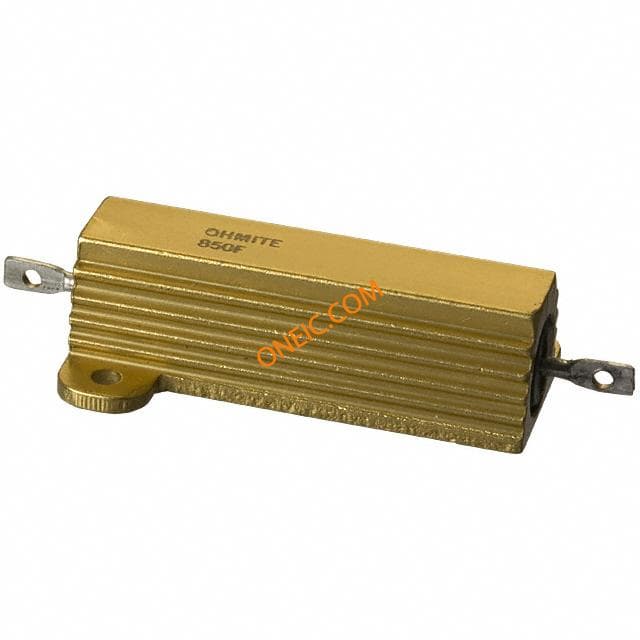

850FR10E
Ohmite
Wirewound Resistors - Chassis Mount 50watt .1ohm 1% RES CHAS MNT 0.1 OHM 1% 50W Resistor; Wirewound;0.1 Ohms;AL Hsd;Chassis Mount; Axial;50 W;+/-1%;MIL-R-18546" Wirewound Resistors 50watt .1ohm 1% Res Wirewound 0.1 Ohm 1% 50W ±90ppm/°C Aluminum Housed AXL Flange Mount RESISTOR WIREWOUND, 0.1 OHM, 50W, 1% Resistor; Wirewound; Res 0.1 Ohms; Pwr-Rtg50 W; Tol 1%; Lug; Alum Housed Ohmite 850 系列 100mΩ ±1% 50W 绕线 高功率线绕电阻器, 轴向，焊接接端, 阳极化铝，金属封装
CMC50.1
Honeywell International Inc.
Res Wirewound 0.1 Ohm 1% 5W ±90ppm/°C Aluminum Housed AXL Flange Mount Potentiometers, Encoders and Resolvers, Wirewound Resistors Wirewound Resistors 0.1 Ohms 50W Fixed Wirewound
MC14729
Avnet, Inc.
RESISTOR, POWER, 0.1 OHM, 50W, 1%
