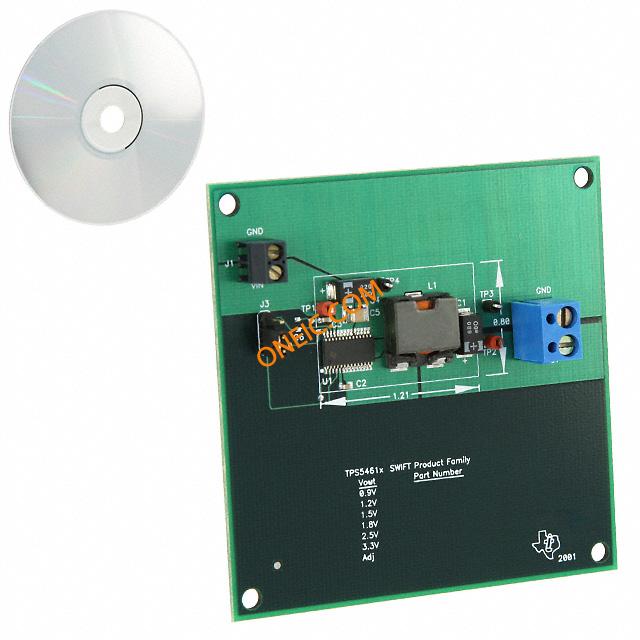

TPS54614EVM-183
| 制造商 | Texas Instruments Incorporated |
| 描述 | Evaluation Module 6A, 36 Vin Dc/Dc Converter With 1.8V Fixed Output Power Management IC Development Tools 6A 3-6 Vin DC/DC Conv EVAL MOD FOR TPS5461X TPS54614 1.8V SWIFT REGULATOR EVM EVAL BOARD, TPS54614 1.8V, 6A SYS STEP-DOWN REG |
| 分类 |
商业参数
| 产品 | Power Management Modules | 其他名称 | 296-12240 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | RoHS Not Applicable | 海关税号 | 84733020 |
电气参数
| 额定电压 | 5 V | 输出电流 | 6A |
| 元件数量 | :TPS54614 | 稳压器拓扑 | Buck |
| 开关频率 | 550kHz | 最小输入电压 | 1.8V |
机械参数
| 重量 | 1 | 电路板厚度 | Fully Populated |
| 尺寸/外形 | 76.2 mm x 76.2 mm | ||
产品信息
| 类型 | Development Kit | 内容 | Board, Software |
| 套件类型 | :Power Management | 技术 | DC to DC Converter and Switching Regulator Chip |
| 主要用途 | DC/DC, Step Down | 输出及类型 | 1, Non-Isolated |
| 工具类型/特性 | TPS54614 | 使用的IC/零件 | TPS54614 |
| 芯片组制造商 | :Texas Instruments | 应用细节 | :Synchronous Buck Regulator |
文档与媒体
相关型号
TPS54614PWPRG4
texas instruments
Conv DC-DC Single Step Down 3V to 6V 28-Pin HTSSOP EP T/R IC REG BUCK SYNC 1.8V 28HTSSOP Voltage Regulators - Switching Regulators Lo-In Voltage 6A Sync Buck Converter 3V to 6V Input, 6A Synchronous Step-Down SWIFT™ Converter with 1.8V Output Switching Voltage Regulators Lo-In Voltage 6A Sync Buck Converter
TPS54614PWPR
texas instruments
Conv DC-DC Single Step Down 3V to 6V 28-Pin HTSSOP EP T/R DC/DC Switching Regulators Lo-In Voltage 6A Sync Buck Converter IC REG BUCK SYNC 1.8V 28HTSSOP Voltage Regulators - Switching Regulators Lo-In Voltage 6A Sync Buck Converter 3V to 6V Input, 6A Synchronous Step-Down SWIFT™ Converter with 1.8V Output Switching Voltage Regulators Lo-In Voltage 6A Sync Buck Converter
TPS54614PWPG4
texas instruments
Conv DC-DC Single Step Down 3V to 6V 28-Pin HTSSOP EP Tube IC REG BUCK SYNC 1.8V 28HTSSOP TPS54614PWPG4, Switching Regulator, Buck Controller, 6A, 1.8V, 762kHz, 28-Pin HTSSOP EP Voltage Regulators - Switching Regulators Lo-In Voltage 6A Sync Buck Converter 3V to 6V Input, 6A Synchronous Step-Down SWIFT™ Converter with 1.8V Output Switching Voltage Regulators Lo-In Voltage 6A Sync Buck Converter
TPS54614PWP
texas instruments
Conv DC-DC Single Step Down 3V to 6V 28-Pin HTSSOP EP Tube IC REG BUCK SYNC 1.8V 28HTSSOP Voltage Regulators - Switching Regulators Lo-In Voltage 6A Sync Buck Converter BUCK PWM REG, FET 6A, SMD, 54614 3V to 6V Input, 6A Synchronous Step-Down SWIFT™ Converter with 1.8V Output Switching Voltage Regulators Lo-In Voltage 6A Sync Buck Converter
XILINXPWR-082
texas instruments
Power Management Evaluation Module For Xilinx FPGAs Power Management IC Development Tools Pow Mgt Eval Mod for Xilinx FPGAs EVAL MODULE FOR XILINX FPGA
TPS54614QPWPRQ1
texas instruments
Conv DC-DC Single Step Down 3V to 6V 28-Pin HTSSOP EP T/R IC REG BUCK SYNC 1.8V 28HTSSOP Voltage Regulators - Switching Regulators 3V-6Vin 6A Out Synch Buck PWM Switcher Automotive Catalog 3-V to 6-V Input 6-A Output Sync Buck PWM Switcher Switching Voltage Regulators 3V-6Vin 6A Out Synch Buck PWM Switcher
TPS54614MPWPREP
Texas Instruments
IC BUCK SYNC 1.8V 6A 28HTSSOP IC REG BUCK SYNC 1.8V 28HTSSOP
