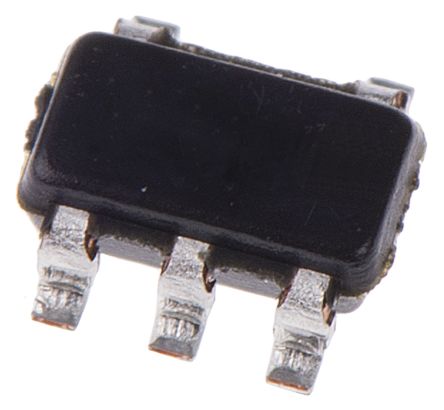

TPS3838E18DBVT
| 制造商 | Texas Instruments Incorporated |
| 描述 | Processor Supervisor 1.71V 1.6V to 6V 5-Pin SOT-23 T/R Supervisory Circuits 220nA w/ 10ms/200ms Select delay time IC 1.71V NANOPWR MON SOT-23-5 TPS3838E18DBVT, Processor Supervisor 1.6 to 6V Active Low, Open Drain, Reset 5-Pin SOT-23 220nA Supervisor with 10ms/200ms selectable delay time 处理器监控器, 1.6 至 6 V监控电压, 多种输出驱动, 复位功能, 5针 SOT-23封装 |
| 分类 |
商业参数
| 其他名称 | 296-3347-2 | 产品类别 | Supervisory Circuits |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 250 |
| 标准封装名称 | SOT-23 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 复位 | Yes | 输出端 | Active Low/Open Drain |
| 最大栅源电压 Vgs | 1.74 V | 延迟时间 | 10 200 |
| 复位时间 | 300 ms | 输出类型 | Open Collector / Drain |
| 输入信号 | No | 额定功率 | 0.437 W |
| 额定电压 | 1.8 V | 看门狗定时器 | No |
| 输出功能 | Active-low Open-drain | 输出电流 | 0.015 mA |
| 供电电流 | 15 uA | 输入数量 | 1 Input |
| 供电电压 | 1.6 to 6 V | 元件数量 | 1 |
| 钳位电压 | 1.71 V | 阈值电压 | 1.71V |
| 最小输入电压 | 1.66 V | 输出电压（最大） | 1.74V |
| 最小供电电压 | 6 V | 平均正向功率 | 437 mW |
| 最大功耗 | 437 mW | 空闲电流，典型值 @ 25°C | 0.25 uA |
| 最小接收功率 | No | 监控电压数量 | 1 |
| 输入失调电压（最大） | 1.6 to 6 V | 共模瞬态抗扰度（最小） | Industrial |
| 保护电压（VP）（2416） | 6V | ||
机械参数
| 宽度 | 1.6mm | 高度 | 1.15mm |
| 长度 | 2.9mm | 重量 | 0.000459 oz |
| 包装方式 | Reel | 引脚样式 | Gull-wing |
| 复位信号类型 | 是 | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | 5 |
| 封装形式 | 5SOT-23 | 冷却的封装 | SOT-23 |
| 总长度 | 3.05(Max) | 包装数量 | SOT-23 |
| 尺寸/外形 | 2.9 x 1.6 x 1.15mm | 位数 | 5 |
| 外壳尺寸-插件 | 1.3(Max) | 供应商器件封装 | SOT-23-5 |
产品信息
| 类型 | Simple Reset/Power-On Reset | 系列 | TPS3838E18 |
| 已删除 | Compliant | 产品特性 | Manual Reset |
| 软件 | SLVS292E | 制造商全称 | Texas Instruments |
| 复位超时 | 100 ms Minimum | 电池系列 | No Backup |
| 射频系列/标准 | TPS3838 | 使用的IC/零件 | View |
| 监控器数量 | 1 | 印刷电路板数量 | 5 |
| 监控字段数 | 1 | 加载位置数 | 1 |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
文档与媒体
相关型号
