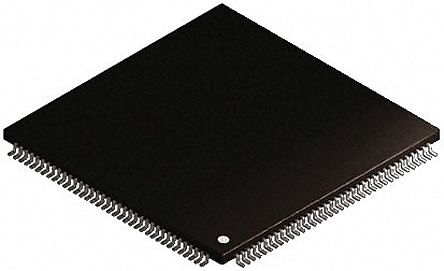

点击放大查看
TMS320VC5507PGE
| 制造商 | Texas Instruments Incorporated |
| 描述 | DSP Fixed-Point 16-Bit 200MHz 400MIPS 144-Pin LQFP IC DSP FIXED-POINT 16BIT 144LQFP Digital Signal Processors & Controllers - DSP, DSC Fixed-Pt Dig Sig Proc IC, DSP, FXD-PT, 200MHZ, 144LQFP Fixed-Point Digital Signal Processor Texas Instruments 16bit 数字信号处理器, 200MHz, 64 kB ROM ROM, 128 kB RAM, 144针 LQFP封装 |
| 分类 |
商业参数
| 产品 | DSPs | 其他名称 | 296-17287 |
| 产品类别 | Digital Signal Processors & Controllers - DSP, DSC | 标准包装数量 | Trays |
| 工厂包装数量 | 60 | 标准封装名称 | QFP |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 转速 | 200 MHz | 存储器 | :Async SRAM, SDRAM |
| RAM 大小 | 128 KB | 内核大小 | 16 b |
| 核心类型 | TMS320 | 频率 | :200MHz |
| 接口 | Host Interface, I²C, McBSP | 时钟速率 | 400 MIPS |
| 存储器容量 | 128 KB | I/O 数量 | :7 |
| I/O电压 | 3.00V, 3.30V | 位数 | :16 |
| 核心电压 | 1.60V | 额定电压 | 1.55|3|2.7 |
| 时钟频率 | 200 MHz | 供电电压 | 1.6|3.3 V |
| 非易失性存储器 | ROM (64 kB) | 程序存储器大小 | 64 KB |
| 程序存储器类型 | ROM | 最小供电电压 | 1.65/3.6 V |
机械参数
| 宽度 | 20.2(Max) | 重量 | 0.045518 oz |
| 包装方式 | Tray | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :144 |
| 封装形式 | 144LQFP | 冷却的封装 | LQFP |
| 材料表面处理 | :MSL 4 - 72 hours | 总长度 | 20.2(Max) |
| 包装数量 | LQFP | 位数 | 144 |
| 外壳尺寸-插件 | 1.45(Max) | 供应商器件封装 | 144-LQFP (20x20) |
| 核心数/总线宽度 | 16 Bit | ||
产品信息
| 类型 | Fixed Point | 格式 | Fixed Point |
| 系列 | TMS320VC5507 | 软件 | SPRS244J |
| 片内RAM（通道数×位宽） | 128kB | 可编程性 | Yes |
| 数字格式 | Fixed-Point | 指令类型 | Fixed Point |
| 功能框图 | fbd_sprs244j.gif | 使用的IC/零件 | View |
| 其他规格 | 400 | 印刷电路板数量 | 144 |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40°C ~ 85°C |
| 结工作温度 | 85C | ||
文档与媒体
相关型号
