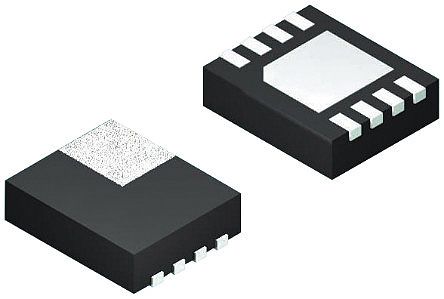

点击放大查看
TL4242DRJR
| 制造商 | Texas Instruments Incorporated |
| 描述 | LED DRVR 5V/9V/12V/15V/18V/24V 8-Pin WSON EP T/R LED Lighting Drivers Adj LED DRIVER IC LED DRIVER PWM CONTROL 8-SON IC, LED DRIVER PWM CONTROL 8-SON IC, LED DRIVER, CONSTANT CURRENT, SON-8 Adjustable LED Driver Texas Instruments 恒流 LED 驱动器, 42 V 直流 500mA, 8针 WSON |
| 分类 |
商业参数
| 其他名称 | 296-23615-1 | 产品类别 | LED Lighting Drivers |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85423990 | 零件状态 | ACTIVE |
| 抗辐射加固 | No | ||
电气参数
| 调光方式 | :PWM | 显示类型 | :LED |
| 输入信号 | Parallel | 额定电压 | 4.5 V to 42 V |
| 数据速率（最大） | 0.01 | 输出电流 | 22000 mA |
| 供电电流 | 22 mA | 供电电压 | 4.5 to 42 V |
| 输出数量 | 1 | LED正向电压 | 42 |
| 最大额定电流 | Catalog | 最小输入电压 | 3.8 V ~ 41.3 V |
| 最小供电电压 | 4.5 V | 输出电流/通道 | 500 |
| 最大恒流负载 | Yes | 最大持续工作电压（MCOV） | :42V |
机械参数
| 重量 | 0.0002 | 包装方式 | Reel |
| 封装体颜色 | :QFN | 端接方式 | :SMD |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :8 | 封装形式 | 8WSON EP |
| 冷却的封装 | WSON EP | 材料表面处理 | :MSL 3 - 168 hours |
| 包装数量 | 1000 | LARGE T&R | 位数 | 8 |
| 供应商器件封装 | 8-SON Exposed Pad (4x4) | ||
产品信息
| 类型 | Automotive | 系列 | TL4242 |
| 已删除 | Compliant | 产品特性 | LED Open Detection Thermal Shutdown |
| 软件 | SLVS641B | 拓扑 | Linear (LDO), PWM |
| 基本单元 | :424 | 功能框图 | fbd_slvs641b.gif |
| 使用的IC/零件 | View | 内部连接 | Yes |
| 每电路通道数 | 1 | 应用细节 | :Automotive Lighting |
环境参数
| 测试温度 | -40 to 125 | 工作温度 | + 85 C |
| 结工作温度 | 85C | ||
