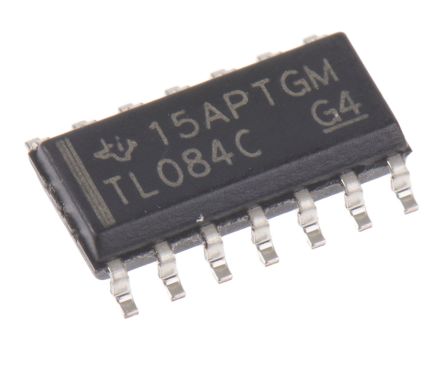

TL084CD

点击放大查看

TL084CD

制造商
Texas Instruments Incorporated
描述OP Amp Quad GP ±18V 14-Pin SOIC Tube IC OPAMP JFET 3MHZ 14SOIC TL084CD, Quad Operational Amplifier 3MHz, 14-Pin SOIC Operational Amplifiers - Op Amps Quad GP OP Amp Quad GP �18V 14-Pin SOIC Tube IC, OP AMP, QUAD JFET, SMD, SOIC14 JFET-Input Operational Amplifier Operational Amplifier Quad 3 MHz SO-14, TL084, TL084CD, Texas Instruments Texas Instruments 四路 运算放大器, 3MHz, 14针 SOIC
分类
集成电路放大器与比较器音频放大器
对参数有疑问？问 AI 助手

商业参数

产品类别Operational Amplifiers - Op Amps标准包装数量Rail / Tube
工厂包装数量50标准封装名称SOIC

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
欧盟RoHSCompliant海关税号85423300
零件状态:084抗辐射加固No

电气参数

增益106.02 dB压摆率13@±15V V/us
1kHz噪声电压18输出类型No
失调漂移18输入功率Dual
额定功率0.68 W晶体管类型:High Voltage
共模抑制比、电源抑制比（典型）70 dB输出电流1.4mA
供电电流11.2@±15V mA供电电压±3.5 V
供电类型Dual通道数量4
元件数量4输入偏置电流30pA
最大额定电流CatalogADC/DAC 数量:4
最小输入电压3mV增益带宽积3 MHz
轨到轨工作No最大功耗680
静态电流 (Iq)2.8输入偏置电流（最大）0.0004@±15V uA
输入失调电流（最大）0.0002@±15V25°C失调电压15
输入噪声电流密度0.01@±15V pA/rtHz输入噪声电压密度18@±15V nV/rtHz
电源电压范围（典型）�5/�9/�12/�15 V输入失调电压（最大）15@±15V mV
电压输出差（典型值）@ 距离106.02 dB

机械参数

宽度4(Max)重量0.004318 oz
带宽:3MHz包装方式Tube
引脚样式Gull-wing安装类型Surface Mount
安装样式SMD/SMT引脚数:14
封装形式14SOIC冷却的封装SOIC
材料表面处理:MSL 1 - Unlimited总长度8.75(Max)
包装数量SOIC位数14
外壳尺寸-插件1.5(Max)供应商器件封装14-SOIC

产品信息

类型General Purpose Amplifier系列TL084
关断No软件SLOS081I
基本单元:084技术BiFET
制造商全称General Purpose Amplifier放大器类型J-FET
功能框图fbd_slos081i.gif电路数4
使用的IC/零件:TL084CD其他规格:BIFET Input
印刷电路板数量14

环境参数

温度范围:Commercial测试温度0 to 70
工作温度0 to 70 °C

文档与媒体

在线文档
TL081/A/B, TL082/A/B, TL084/A/B
PDF 文档
1764390.pdf
PDF 文档
1535172.pdf
在线文档
tl084
