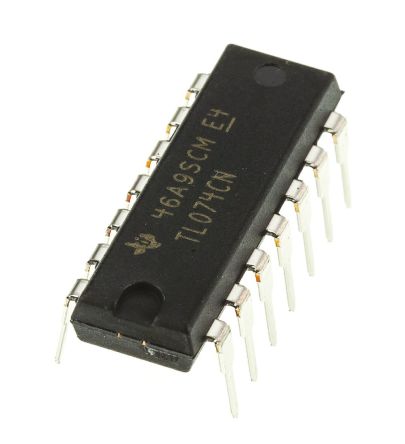

TL074CN
| 制造商 | Texas Instruments Incorporated |
| 描述 | OP Amp Quad GP ±18V 14-Pin PDIP Tube IC OPAMP JFET 3MHZ 14DIP TL074CN, Quad Operational Amplifier 3MHz, 14-Pin PDIP Operational Amplifiers - Op Amps JFET Input Low Noise OP Amp Quad GP �18V 14-Pin PDIP Tube IC, OP-AMP, 3MHZ, 13V/us, 10mV, DIP-14 Quad Low-Noise JFET-Input General-Purpose Operational Amplifier Operational Amplifier Quad 3 MHz DIL-14, TL074, TL074CN, Texas Instruments Texas Instruments 四路 运算放大器, 3MHz, 14针 PDIP |
| 分类 |
商业参数
| 产品类别 | Operational Amplifiers - Op Amps | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 25 | 标准封装名称 | PDIP |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85411000 | 零件状态 | ACTIVE |
| 抗辐射加固 | No | 高可靠性 | Y |
电气参数
| 增益 | 106.02 dB | 压摆率 | 13@±15V V/us |
| 1kHz噪声电压 | 18 | 输出类型 | No |
| 失调漂移 | 18 | 输入功率 | Dual |
| 晶体管类型 | :Low Noise | 共模抑制比、电源抑制比（典型） | 70 dB |
| 输出电流 | 1.4mA | 供电电流 | 10@±15V mA |
| 供电电压 | ±3.5 V | 供电类型 | Dual |
| 通道数量 | 4 | 元件数量 | 4 |
| 输入偏置电流 | 65pA | 最大额定电流 | Military |
| ADC/DAC 数量 | :4 | 最小输入电压 | 3mV |
| 增益带宽积 | 3 MHz | 轨到轨工作 | No |
| 静态电流 (Iq) | 2.5 | 输入偏置电流（最大） | 0.0002@±15V uA |
| 输入失调电流（最大） | 0.0001@±15V | 25°C失调电压 | 10 |
| 输入噪声电流密度 | 0.01@±15V pA/rtHz | 输入噪声电压密度 | 18@±15V nV/rtHz |
| 电源电压范围（典型） | �5/�9/�12/�15 V | 输入失调电压（最大） | 10@±15V mV |
| 电压输出差（典型值）@ 距离 | 106.02 dB | ||
机械参数
| 宽度 | 6.6(Max) | 重量 | 0.032734 oz |
| 带宽 | :3MHz | 包装方式 | Tube |
| 引脚样式 | Through Hole | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :14 |
| 封装形式 | 14PDIP | 冷却的封装 | PDIP |
| 材料表面处理 | :- | 总长度 | 19.69(Max) |
| 包装数量 | PDIP | 位数 | 14 |
| 外壳尺寸-插件 | 5.08(Max) - 0.51(Min) | 供应商器件封装 | 14-PDIP |
产品信息
| 类型 | General Purpose Amplifier | 系列 | TL074 |
| 已删除 | Compliant | 关断 | No |
| 软件 | SLOS080M | 技术 | BiFET |
| 制造商全称 | Low Noise Amplifier | 放大器类型 | J-FET |
| 电路数 | 4 | 使用的IC/零件 | View |
| 印刷电路板数量 | 14 | ||
