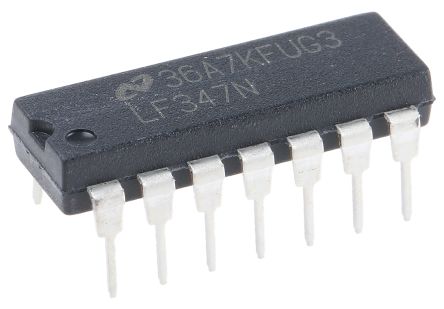

点击放大查看
LF347N/NOPB
| 制造商 | Texas Instruments Incorporated |
| 描述 | OP Amp Quad GP ±18V 14-Pin PDIP Rail LF347N/NOPB, Quad Operational Amplifier 4MHz, 14-Pin MDIP Operational Amplifiers - Op Amps WIDE BW QUAD JFET INPUT OP AMP OP Amp Quad GP �18V 14-Pin PDIP Rail IC, OP-AMP, 4MHZ, 13V/ us, DIP-14 IC OPAMP JFET 4MHZ 14DIP Wide Bandwidth Quad JFET Input Operational Amplifiers Operational Amplifier Quad 4 MHz DIL-14, LF347, LF347N/NOPB, Texas Instruments Texas Instruments 四路 运算放大器, 4MHz, 14针 MDIP |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85411000 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 增益 | 100 dB | 电源抑制比 | 70 dB |
| 压摆率 | 13@±15V V/us | 1kHz噪声电压 | 20 |
| 输出类型 | No | 输入功率 | Dual |
| 额定功率 | 1 W | 晶体管类型 | :Wideband |
| 共模抑制比、电源抑制比（典型） | 70 dB | 输出电流 | 7.2 mA |
| 供电电流 | 11@±15V mA | 供电电压 | ±4 V |
| 通道数量 | 4 | 元件数量 | 4 |
| 输入偏置电流 | 50pA | 最大额定电流 | Catalog |
| ADC/DAC 数量 | :4 | 最小输入电压 | 10 mV |
| 增益带宽积 | 4 MHz | 输入偏置电流（最大） | 0.0002@±15V uA |
| 25°C失调电压 | 5 | 输入噪声电流密度 | 0.01@±15V pA/rtHz |
| 输入噪声电压密度 | 20@±15V nV/rtHz | 电源电压范围（典型） | �5/�9/�12/�15 V |
| 输入失调电压（最大） | 10@±15V mV | 电压输出差（典型值）@ 距离 | 100 dB |
机械参数
| 重量 | 0.002 | 带宽 | :4MHz |
| 包装方式 | Tube | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :14 |
| 封装形式 | 14PDIP | 冷却的封装 | PDIP |
| 包装数量 | 25 | TUBE | 位数 | 14 |
| 供应商器件封装 | 14-PDIP | ||
产品信息
| 类型 | General Purpose Amplifier | 系列 | LF347-N |
| 关断 | No Shutdown | 软件 | SNOSBH1D |
| 技术 | BiFET | 放大器类型 | J-FET |
| 功能框图 | fbd_snosbh1d.gif | 电路数 | 4 |
| 使用的IC/零件 | View | ||
环境参数
| 测试温度 | 0 to 70 | 工作温度 | 0 to 70 °C |
