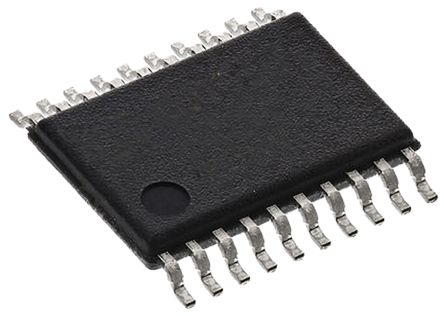

SN74HC541PW
| 制造商 | Texas Instruments Incorporated |
| 描述 | Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS 20-Pin TSSOP Tube IC BUFF/DVR TRI-ST 8BIT 20TSSOP Buffers & Line Drivers Octal Buff/Line Drvr W/3-State Otpt IC, OCTAL BUFFER, LINE DRIVER, SMD Octal Buffers And Line Drivers With 3-State Outputs Logic IC TSSOP-20, SN74HC541, SN74HC541PW, Texas Instruments HC, 8-Bit 三态 非反相 缓冲器，线路驱动器, 20针 TSSOP封装 |
| 分类 |
商业参数
| 产品类别 | Buffers & Line Drivers | 标准包装数量 | Bulk |
| 工厂包装数量 | 70 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 零件状态 | :74HC541 |
电气参数
| 电压 | 6 | 输入类型 | CMOS |
| 逻辑类型 | HC | 输出类型 | 3-State |
| 输入信号 | Single-Ended | 位数 | 6 |
| 输出电流 | :7.8mA | 输入数量 | 8 |
| 供电电压 | 2 V ~ 6 V | 输出数量 | 8 |
| 通道数量 | 8 | 元件数量 | 1 |
| 最大额定电流 | Catalog | 输出1频率 | 28 |
| 施密特触发器输入 | No | 传播延迟时间 | 165 ns at 2 V, 33 ns at 4.5 V, 28 ns at 6 V |
| 静态电流（最大） | 0.08 | 输出高/低电流 | 7.8mA, 7.8mA |
| 每元件位数 | 8 | 输出源/灌电流 | -6/6 |
| 最大传播延迟 @ V, 最大CL | 165@2V|33@4.5V|28@6V ns | 传播延迟 tpLH / tpHL（最大） | 25 |
机械参数
| 重量 | 0.002716 oz | 包装方式 | Tube |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :20 | 封装形式 | 20TSSOP |
| 材料表面处理 | :MSL 1 - Unlimited | 包装数量 | 70 | TUBE |
| 位数 | :74541 | 供应商器件封装 | 20-TSSOP |
产品信息
| 系列 | SN74HC541 | 功能 | Buffer/Line Driver |
| 极性 | Non-Inverting | 软件 | SCLS305C |
| 基本单元 | :74 | 射频系列/标准 | HC |
| 使用的IC/零件 | View | ||
