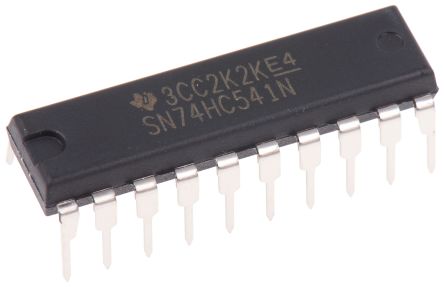

点击放大查看
SN74HC541N
| 制造商 | Texas Instruments Incorporated |
| 描述 | Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS 20-Pin PDIP Tube Buffers & Line Drivers Tri-State Octal C IC BUFF/DVR TRI-ST 8BIT 20DIP SN74HC541N, 8-Bit Buffer, Line Driver, HC, 3-State Non-Inverting 2 to 6V 20-Pin PDIP IC, BUFFER/DRIVER/RECEIVER Octal Buffers And Line Drivers With 3-State Outputs Logic IC PDIP-20, SN74HC541, SN74HC541N, Texas Instruments HC, 8-Bit 三态 非反相 缓冲器，线路驱动器, 20针 PDIP封装 |
| 分类 |
商业参数
| 产品类别 | Buffers & Line Drivers | 标准包装数量 | Bulk, Rail / Tube |
| 工厂包装数量 | 20 | 标准封装名称 | PDIP |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 电压 | 6 | 输入类型 | Single Ended |
| 逻辑类型 | HC | 输出类型 | 3-State |
| 输入信号 | Single-Ended | 位数 | 6 |
| 额定电压 | 2 V | 输入数量 | 8 |
| 供电电压 | 6 V | 输出数量 | 8 |
| 传播延迟 | 150pF | 通道数量 | 8 |
| 元件数量 | 1 | 最大额定电流 | Catalog |
| 输出1频率 | 28 | 施密特触发器输入 | No |
| 最小供电电压 | 6 V | 传播延迟（最大） | 250 |
| 静态电流 (Iq) | 8 uA | 传播延迟时间 | 165 ns at 2 V, 33 ns at 4.5 V, 28 ns at 6 V |
| 静态电流（最大） | 0.08 | 输出高/低电流 | - 7.8 mA |
| 每元件位数 | 8 | 输出源/灌电流 | -6/6 |
| 最大传播延迟 @ V, 最大CL | 165@2V|33@4.5V|28@6V ns | 传播延迟 tpLH / tpHL（最大） | 25 |
| 共模瞬态抗扰度（最小） | Commercial | ||
机械参数
| 宽度 | 6.35mm | 高度 | 4.57mm |
| 长度 | 24.33mm | 重量 | 0.042297 oz |
| 包装方式 | Tube | 引脚样式 | Through Hole |
| 端接方式 | :Through Hole | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :20 |
| 封装形式 | 20PDIP | 冷却的封装 | PDIP |
| 材料表面处理 | :- | 总长度 | 26.92(Max) |
| 包装数量 | PDIP | 尺寸/外形 | 24.33 x 6.35 x 4.57mm |
| 位数 | 20 | 外壳尺寸-插件 | 5.08(Max) - 0.51(Min) |
| 供应商器件封装 | 20-PDIP | ||
产品信息
| 系列 | SN74HC541 | 工艺（或'制程'，根据具体值如CMOS） | CMOS |
| 功能 | Buffer/Line Driver | 极性 | Non-Inverting |
| 软件 | SCLS305C | 基本单元 | :74541 |
| 技术 | CMOS | 射频系列/标准 | HC |
| 使用的IC/零件 | View | 印刷电路板数量 | 20 |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | + 85 C |
文档与媒体
