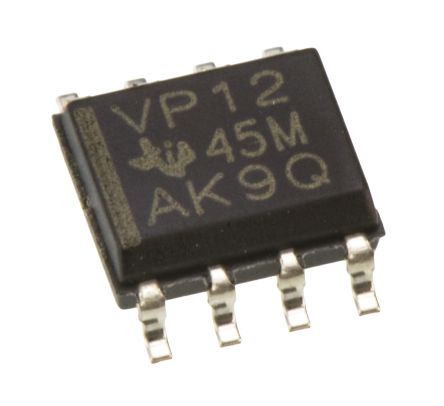

SN65HVD12D
| 制造商 | Texas Instruments Incorporated |
| 描述 | Single Transmitter/Receiver RS-485 8-Pin SOIC Tube IC TRANSCEIVER RS485 3.3V 8-SOIC SN65HVD12D, Line Transceiver, EIA/TIA-485-A, ISO-8482:1993, RS-485 1Mbit/s Differential, 3.3V, 8-Pin SOIC RS-485 Interface IC 3.3V RS485 RS485 DIFFERENTIAL TRANS, 65HVD12 Line transmitter-receiver; RS485; 3.3VDC; SO8 3.3V Differential Transceiver Logic IC SOIC-8, SN65HVD12, SN65HVD12D, Texas Instruments Texas Instruments 1MBps 线路收发器, RS-485接口, 差分接收器信号, 3.3 V, 8针 SOIC封装 |
| 分类 |
商业参数
| 其他名称 | 296-12647-5 | 产品类别 | RS-485 Interface IC |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 75 |
| 标准封装名称 | SOIC | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | :65HVD12 | 抗辐射加固 | No |
| 故障保护 | -9 to 14 | ||
电气参数
| 数据速率 | 1(Max) Mbps | 接口 | EIA/TIA-485-A|ISO-8482:1993|RS-485 |
| 波特率 | 1 | 驱动类型 | 3-State |
| 短路失效 | Idle Open Short | 输入信号 | Differential |
| 信号类型 | Differential | 传输速率 | 1 |
| 输入功率 | Single | 隔离电源 | No |
| 额定电压 | :1.5V | 数据速率（最大） | Multipoint |
| 输出电流 | 9 mA | 供电电流 | 15.5 |
| 驱动电路 | :RS-485 | 输入数量 | 1 |
| 供电电压 | 3.3 V | 输出数量 | 1 |
| 供电类型 | Single | 接收器迟滞 | 35mV |
| 输入偏置电流 | 15.5 | 最大额定电流 | Catalog |
| 电源电压范围（典型） | Not Required V | 每线接收器数量 | 256 |
| 共模瞬态抗扰度（最小） | Industrial | ||
机械参数
| 宽度 | 3.91mm | 高度 | 1.58mm |
| 长度 | 4.9mm | 重量 | 0.002561 oz |
| 包装方式 | Tube | 封装体颜色 | :SOIC |
| 引脚样式 | Gull-wing | 端接方式 | :SMD |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :8 | 封装形式 | 8SOIC |
| 冷却的封装 | SOIC | 材料表面处理 | :MSL 1 - Unlimited |
| 总长度 | 5(Max) | 包装数量 | SOIC |
| 尺寸/外形 | 4.9 x 3.91 x 1.58mm | 位数 | 8 |
| 外壳尺寸-插件 | 1.5(Max) | 供应商器件封装 | 8-SOIC |
产品信息
| SPG | 75 | 类型 | Transceiver |
| 双工模式 | Half | 系列 | SN65HVD12 |
| 已删除 | Compliant | 功能 | Line Transceiver |
| 协议 | RS485 | 关断 | Yes |
| 软件 | SLLS505N | 基本单元 | :65 |
| 通信接口 | RS-485 | 节点数 | 256 |
| 单元数量 | 1 | 驱动器数量 | 1 |
| 功能框图 | fbd_slls505n.gif | 使用的IC/零件 | :SN65HVD12D |
| 接收器数量 | 1 | 印刷电路板数量 | 8 |
| 发射器数量 | 1 | 驱动器/接收器数量 | 1/1 |
| 发射器/接收器数量 | 1 | ||
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40°C ~ 85°C |
文档与媒体
相关型号
