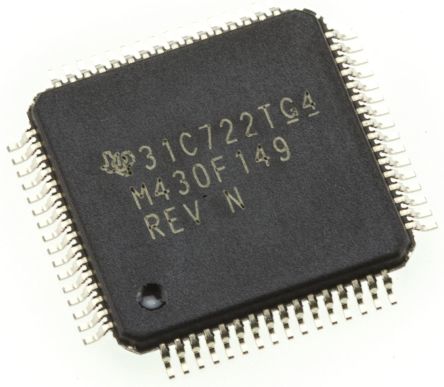

MSP430F149IPAG
| 制造商 | Texas Instruments Incorporated |
| 描述 | MCU 16-bit MSP430 RISC 60KB Flash 2.5V/3.3V 64-Pin TQFP Tray 16-bit Microcontrollers - MCU 60 kB Flash 2KB RAM 12b ADC-2 USART-HW MCU 16-bit MSP430 MSP430 RISC 60KB Flash 2.5V/3.3V 64-Pin TQFP Tray IC MCU 16BIT 60KB FLASH 64TQFP MSP430F149IPAG, 16 bit Microcontroller MSP430 8MHz 60kb Flash, 2kb RAM, SPI 64-Pin TQFP IC, MICROCONTROLLER, 16BIT, SMD 16-Bit Ultra-Low-Power Microcontroller, 60 kB Flash, 2KB RAM, 12 bit ADC, 2 USARTs, HW multiplier Texas Instruments MSP430 系列 16 bit MSP430 MCU, 8MHz, 256 B，60 kB ROM 闪存, 2 kB RAM, 64针 TQFP封装 |
| 分类 |
商业参数
| 商标名 | MSP430 | 其他名称 | 296-13102 |
| 产品类别 | 16-bit Microcontrollers - MCU | 标准包装数量 | Trays |
| 工厂包装数量 | 160 | 标准封装名称 | QFP |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
| 认证机构 | No | 安全特性 | N/A |
电气参数
| GPIO | 48 | 转速 | 8 MHz |
| 定时器 | 10 x 16 bit | 存储器 | 0 |
| RAM 大小 | 2 KB | 内核大小 | 16-Bit |
| 核心类型 | MSP430 | 频率 | 8 MHz |
| 接口 | SPI/UART/USART | 时钟速率 | 8 MHz |
| 比较器数量 | Yes | 延迟时间 | 6 |
| 分辨率 | 16bit | 存储器容量 | 2 KB |
| I/O 数量 | 48 | 计数器/定时器 | 2 |
| 位数 | 12 | 额定电压 | 1.8 → 3.6 V |
| 看门狗定时器 | 1 | 时钟频率 | :8MHz |
| 数据转换器 | A/D 8x12b | 最大频率 | 8MHz |
| DAC数量 | 2 | 振荡器类型 | Internal |
| 串行协议 | 2 | 供电电压 | 2.5|3.3 V |
| 分辨率（位） | 12bit | 串行接口 | 2 |
| 通道数量 | 8 | 模拟输入/输出 | ADC12 - 8ch |
| 非易失性存储器 | 60 | 程序存储器大小 | 60 KB |
| 程序存储器类型 | Flash | ADC/DAC 数量 | 8 |
| 最小输入电压 | 1.8 | 最小供电电压 | 1.8 V |
| 频率（中心/带宽） | 16bit | 平均正向功率 | 1.6 |
| 每元件位数 | 12 bit | 供电电压 (Vcc/Vdd) | 1.8 V ~ 3.6 V |
机械参数
| 宽度 | 10.2mm | 高度 | 1.05mm |
| 长度 | 10.2mm | 重量 | 0.009690 oz |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :48 |
| 封装形式 | 64TQFP | 冷却的封装 | TQFP |
| 材料表面处理 | :MSL 4 - 72 hours | 总长度 | 10.2(Max) |
| 包装数量 | TQFP | 尺寸/外形 | 10.2 x 10.2 x 1.05mm |
| 位数 | 64 | 外壳尺寸-插件 | 1.05(Max) |
| 核心数/总线宽度 | 16 Bit | 脉冲宽度失真（最大） | 3 x 16 bit, 7 x 16 bit |
产品信息
| SPI | 2 | USB | 0 |
| 系列 | 1 Series | 产品特性 | Watchdog Temp Sensor |
| 协议 | 0 | 软件 | SLAS272F |
| 引导加载程序 | UART | 闪存大小 | :60KB |
| 倍率 | 16x16 | 片内RAM（通道数×位宽） | 8-chx12-bit |
| 外设 | POR, PWM, WDT | 特殊I/O | N/A |
| 架构 | RISC | 连接性 | SPI, UART/USART |
| 可编程性 | Yes | 定时器数量 | 2 |
| 控制器系列 | :MSP430F1xx | 射频系列/标准 | MSP430 |
| 使用的IC/零件 | View | DigiKey可编程 | Yes |
| 印刷电路板数量 | 64 | A/D转换器数量 | :8 |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
| 结工作温度 | 85C | ||
文档与媒体
相关型号
NE5532P
texas instruments
OP Amp Dual GP ±15V 8-Pin PDIP Tube IC OPAMP GP 10MHZ 8DIP NE5532P, Operational Amplifier 10MHz, 8-Pin PDIP OP Amp Dual GP �15V 8-Pin PDIP Tube OP AMP, DUAL LOW NOISE, 5532, DIP8 Operational amplifier; 10MHz; 5÷15VDC; Channels:2; DIP8 Dual Low-Noise High-Speed Audio Operational Amplifier Operational Amplifier Dual 10 MHz DIL-8, NE5532, NE5532P, Texas Instruments Texas Instruments 双 运算放大器, 10MHz, 8针 PDIP Operational Amplifiers - Op Amps Dual Low Noise

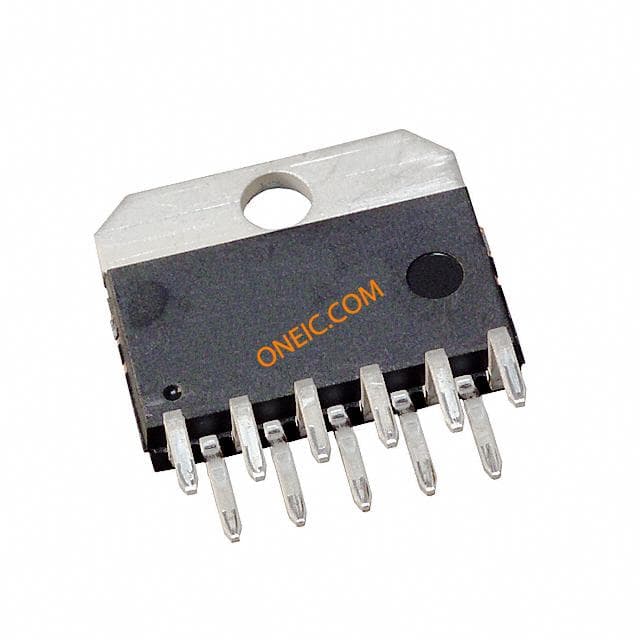

OPA541AP
