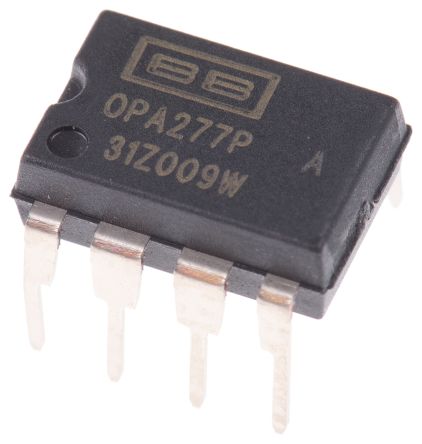

OPA277PA
| 制造商 | Texas Instruments Incorporated |
| 描述 | OP Amp Single GP ±18V 8-Pin PDIP Tube IC OPAMP GP 1MHZ 8DIP OPA277PA, Operational Amplifier 1MHz, 8-Pin PDIP Operational Amplifiers - Op Amps High Precision Oper Amplifier OP Amp Single GP ?18V 8-Pin PDIP Tube IC, OP AMP, SINGLE Operational amplifier; DIP8 High Precision Operational Amplifiers Operational Amplifier Single 1 MHz DIL-8, OPA277, OPA277PA, Texas Instruments Texas Instruments 运算放大器, 1MHz, 8针 PDIP Precision Amplifiers High Precision Oper Amplifier |
| 分类 |
商业参数
| 产品类别 | Operational Amplifiers - Op Amps | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 50 | 标准封装名称 | PDIP |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423300 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 增益 | 140 dB | 压摆率 | 0.8@±15V V/us |
| 1kHz噪声电压 | 8 | 输出类型 | No |
| 失调漂移 | 0.1 | 输入功率 | Dual |
| 晶体管类型 | :Precision | 共模抑制比、电源抑制比（典型） | 115 dB |
| 输出电流 | 790µA | 供电电压 | ±2 V |
| 供电类型 | Dual | 通道数量 | 1 |
| 元件数量 | 1 | 输入偏置电流 | 500pA |
| 最大额定电流 | Catalog | ADC/DAC 数量 | :1 |
| 最小输入电压 | 20µV | 增益带宽积 | 1 MHz |
| 轨到轨工作 | No | 静态电流 (Iq) | 0.825 |
| 输入偏置电流（最大） | 0.0028@±15V uA | 输出电流/通道 | 35mA |
| 输入失调电流（最大） | 0.0028@±15V | 供电电压 (Vcc/Vdd) | 36 |
| 25°C失调电压 | 0.02 | 输入噪声电流密度 | 0.2@±15V pA/rtHz |
| 输入噪声电压密度 | 12@±15V nV/rtHz | 输入失调电压（最大） | 0.05@±15V mV |
| 电压输出差（典型值）@ 距离 | 140 dB | ||
机械参数
| 宽度 | 6.6(Max) | 重量 | 0.018646 oz |
| 带宽 | :1MHz | 包装方式 | Tube |
| 引脚样式 | Through Hole | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :8 |
| 封装形式 | 8PDIP | 冷却的封装 | PDIP |
| 材料表面处理 | :- | 总长度 | 10.16(Max) |
| 包装数量 | PDIP | 位数 | 8 |
| 外壳尺寸-插件 | 5.08(Max) - 0.51(Min) | 供应商器件封装 | 8-PDIP |
产品信息
| SPG | 100 | 类型 | General Purpose Amplifier |
| 系列 | OPA277 | 关断 | No |
| 软件 | SBOS079B | 技术 | Bipolar |
| 制造商全称 | Low Offset Voltage Amplifier | 放大器类型 | General Purpose |
| 图案编号 | Y | 单元数量 | 1 |
| 功能框图 | fbd_sbos079b.gif | 电路数 | 1 |
| 使用的IC/零件 | View | 印刷电路板数量 | 8 |
环境参数
| 工作温度 | -40 to 85 °C | ||
